Magswitch MLAY600x2 Lifting Magnet
Available

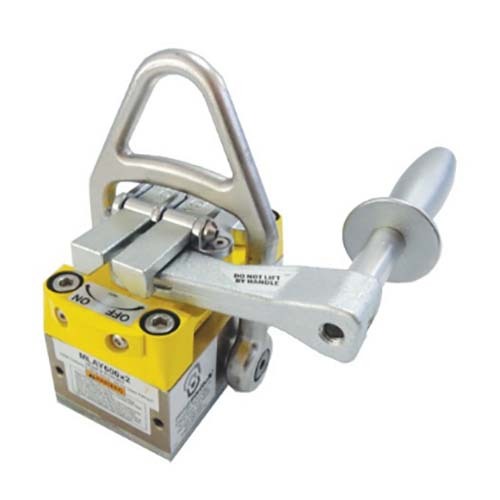

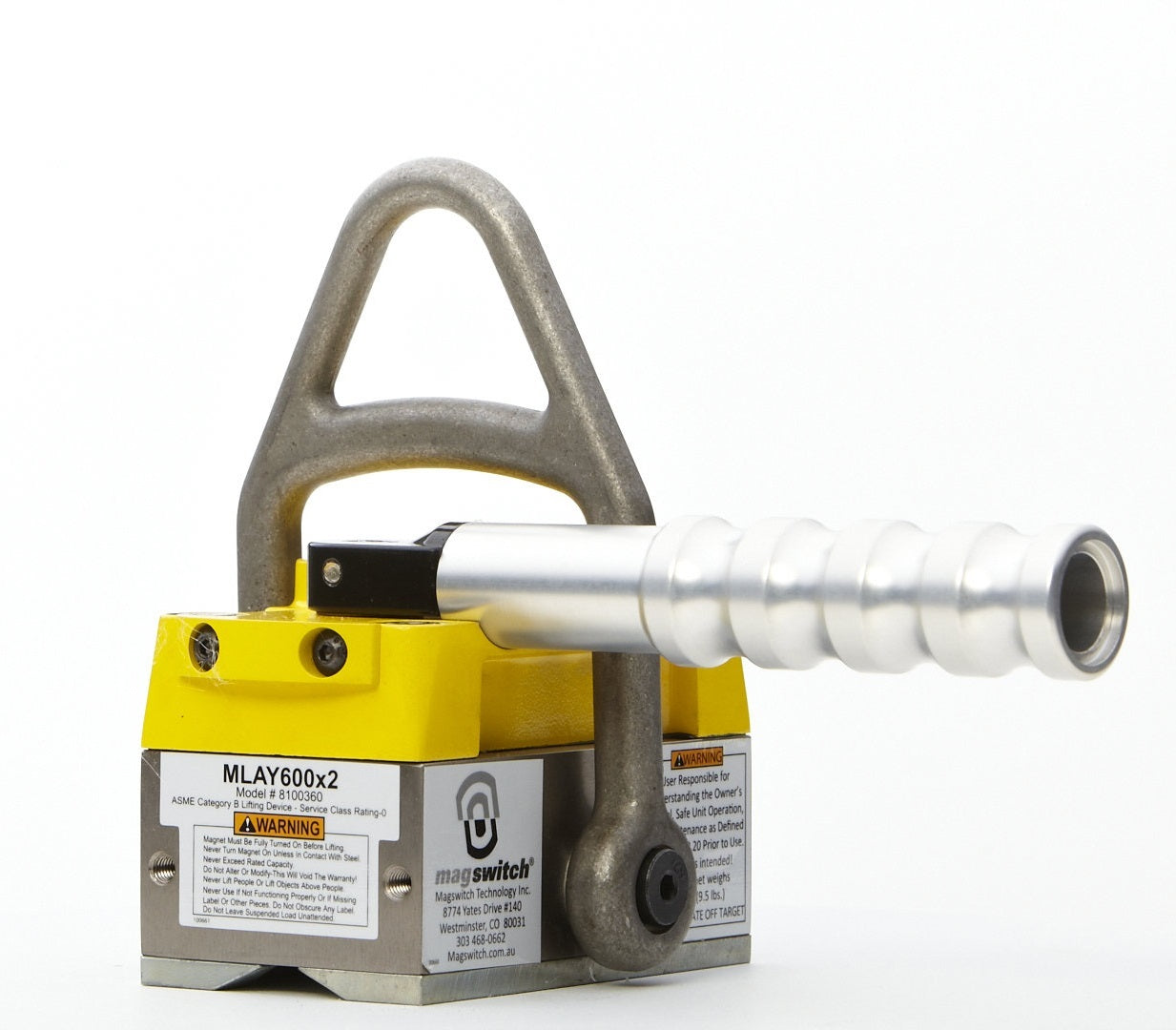

The Magswitch MLAY600x2 is a lightweight lifting magnet for tight spaces and thin sheet. It has a single swivel hook that lifts from horizontal to vertical, and you switch it on and off by hand with no power. A locking handle holds the on and off positions.
It suits pipe, round stock and large plate, and works over air gaps such as rust and dirt. It has customisable pole shoes. It has a safe working load of 167kg (367 lb) and a maximum breakaway of 500kg (1100 lb). Maximum breakaway is the force needed to pull the magnet off clean, flat, thick steel in the lab test (2" thick SAE1018 steel). It is not a safe working load, and many factors change the real figure, so test the magnet on your job before you lift.
Where this product is used
- Lifting thin steel sheet in tight spaces

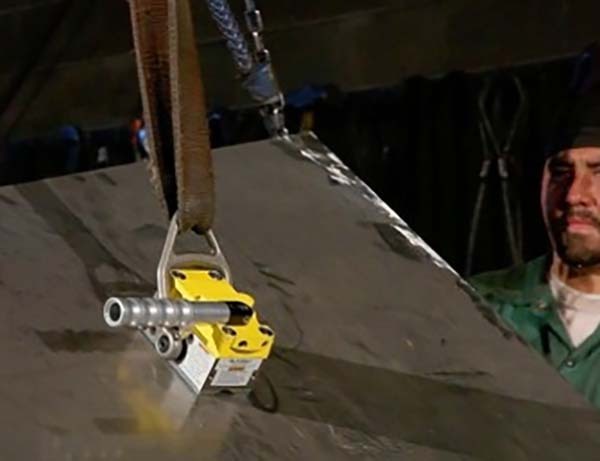

- Lifting large flat sheets and plate
- Handling beams and pipe
- Lifting round stock
Features
- Mechanical on/off switch, so no power source is needed
- Lock handle holds the on and off positions
- Single swivel hook lifts from horizontal to vertical
- Suits pipe, round stock and large plate
- 50mm shallow field gives a superior hold on thin steel
- Keeps working over air gaps such as rust and dirt
- Customisable pole shoes
- Maximum breakaway of 500kg (1100 lb), a lab figure and not a safe working load
Key specifications
| Specification | Detail |
|---|---|
| Brand | Magswitch |
| Model | MLAY600x2 |
| Part number | 8100360 |
| Type | Switchable lifting magnet with swivel hook |
| Maximum breakaway | 500kg (1100 lb) |
| Safe working load (3 to 1 chart) | 167kg (367 lb) |
| Maximum safe shear | 90.9kg (200 lb) |
| Net weight | 4.3kg (9.5 lb) |
| Mounting thread | M6x1.0 |
| Overall height | 170.9mm |
| Pole footprint | 119 x 71.12mm |
| Operation | Mechanical on/off, no power source |
| Test conditions for breakaway | 2" thick SAE1018 steel, surface roughness 63 micro inches |
| Warning | Do not operate unless in contact with a ferrous target |
