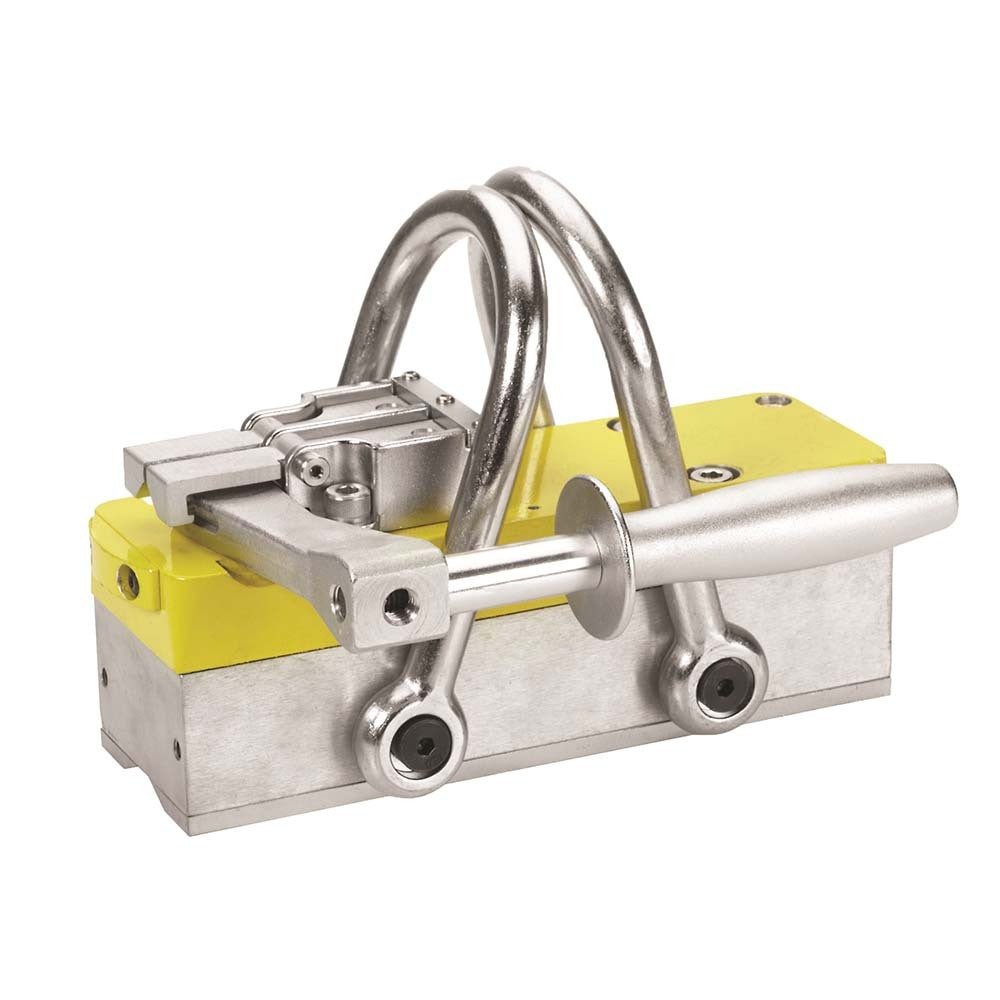

Magswitch MLAY600x4 Lifting Magnet

Magswitch MLAY600x4 Lifting Magnet

• Magswitch LAY series magnets utilize different size magnets to attain different field depths.
• This allows for greater working loads and increased control over larger work pieces.

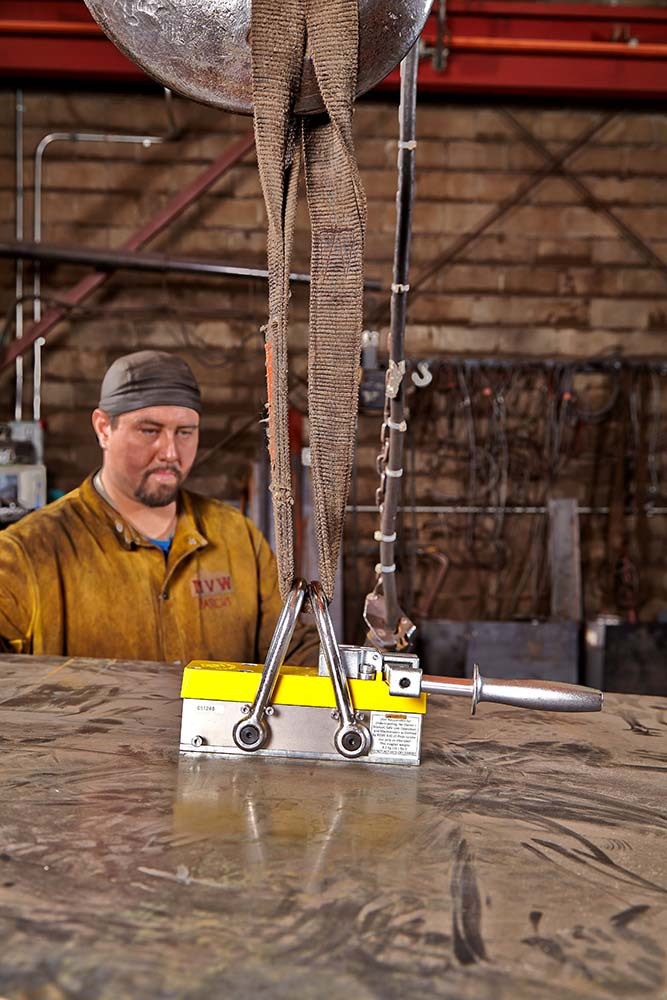

• The MLAY600x4 is a lightweight heavy lifting magnet ideal for lifting thin sheet, beams and pipe.

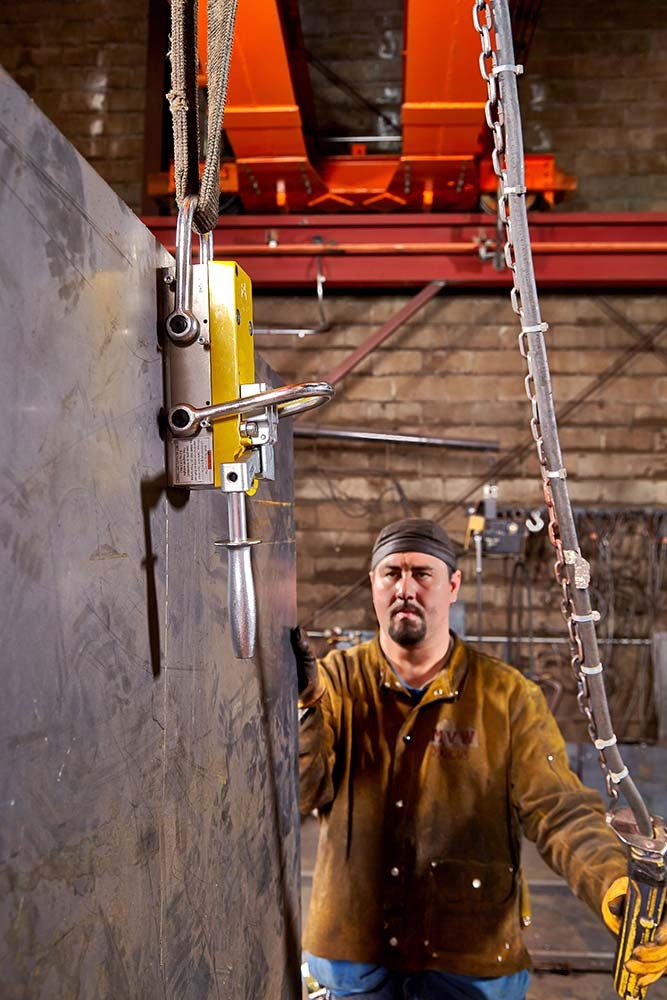

• It features a unique dual swivel hook design for both load stability and lifting from horizontal to vertical.

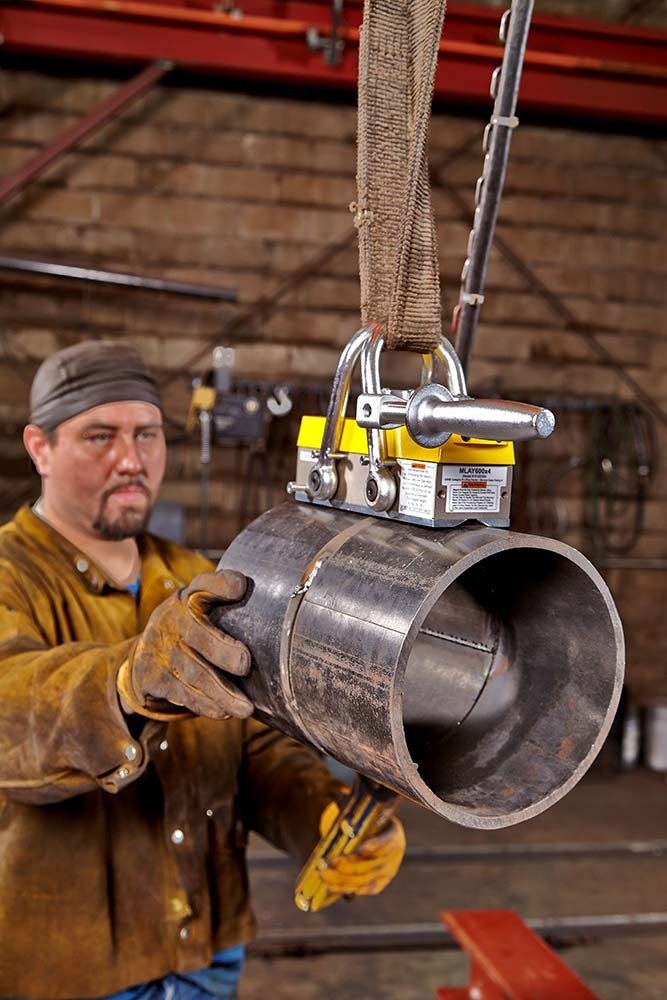

• With customizable pole shoes to fit almost any application, the LAY is a great all around tool that is perfect for picking pipe and round as well as large plate steel.

Max Breakaway*
2285 lbs/1036 kg
Safe Working Load*
762 lbs/346 kg
Full Saturation Thickness
1/2" / 9.5mm
Max Safe Shear*
330 lbs/150 kg
Minimum Thickness for De-Stack
1/2" / 9.5mm
Net Weight
17.9 lbs/8.1 kg
Mounting Thread
M6x1.0
Overall Height
166.47 mm
Magnetic Pole Footprint
223x71.12 mm

* Max Breakaway determined in laboratory environment on 2" thick SAE1018 Steel with surface application. Always test the magswitch in each application before deployment.

About MSA Magswitch

• The Magswitch Lifting Magnets are a powerful tool designed for moving heavy steel sections, beams, and components.
• These magnets allow for operators to safely and easily lift steel material on and off trucks, cutting beds, guillotines, saws, etc.
• Not only do these magnets substantially save time and allow for increase in production, they also greatly reduce WHS risks such as back injury caused by lifting heavy steel objects.
• Magswitch technology values Heavy Lifting capabilities to a whole new level of strength & safety.
