Master Lock 51mm Magnum padlocks M5DLF, 9 x 38 x 24mm / 1
Available
Master Lock Magnum padlocks come with a 51mm body in three versions: M5DLF (single), M5T (2 pack KA) and M5TRILF (3 pack KA). KA means keyed alike, so every padlock in a pack opens with the same key.
The Magnum padlock has a laminated steel core surrounded by stainless steel and zinc outer components for weather resistance, an octagonal boron carbide shackle stated to be 50% harder than hardened steel, dual ball bearing locking, a reinforced body bumper and a 4-pin cylinder, and 2 keys are included.
Where this product is used
- Securing gates, sheds, lockers, toolboxes and equipment
- Keyed padlock security for workplaces, sites and general use
Features
- Laminated steel core with stainless steel and zinc outer components
- Octagonal boron carbide shackle, stated to be 50% harder than hardened steel
- Dual ball bearing locking
- Reinforced body bumper
- 4-pin cylinder
Key specifications
| Specification | Detail |
|---|---|
| Brand | Master Lock |
| Product | Magnum padlock, 51mm body |
| Part numbers | M5DLF, M5T, M5TRILF |
| Body width | 51mm |
| Shackle | Boron carbide |
| Pack | Single padlock, 2 pack, keyed alike, 3 pack, keyed alike |

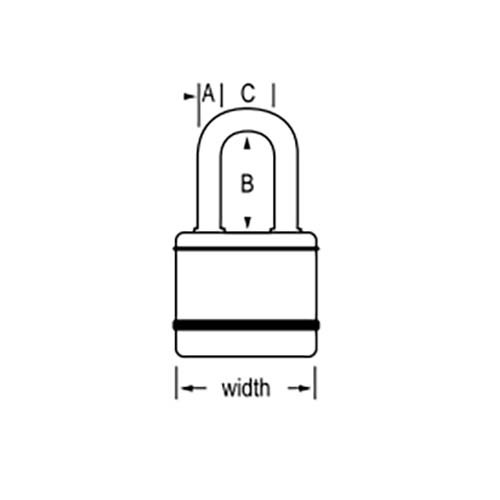

| Shackle diameter x height x width | 9mm x 38mm x 24mm, 9mm x 25mm x 24mm |
Choosing the right option
Choose the pack and shackle: M5DLF is a single padlock with a 38mm opening height, M5T is a 2 pack KA with a 25mm opening height, and M5TRILF is a 3 pack KA with a 38mm opening height.
Also from Master Lock: 45mm Magnum padlocks, 5DAU 51mm laminated steel padlock, Weather Tough covered laminated steel padlocks.
| Option | Part number | SKU |
|---|---|---|
| 9 x 38 x 24mm / 1 | M5DLF | A0164541 |

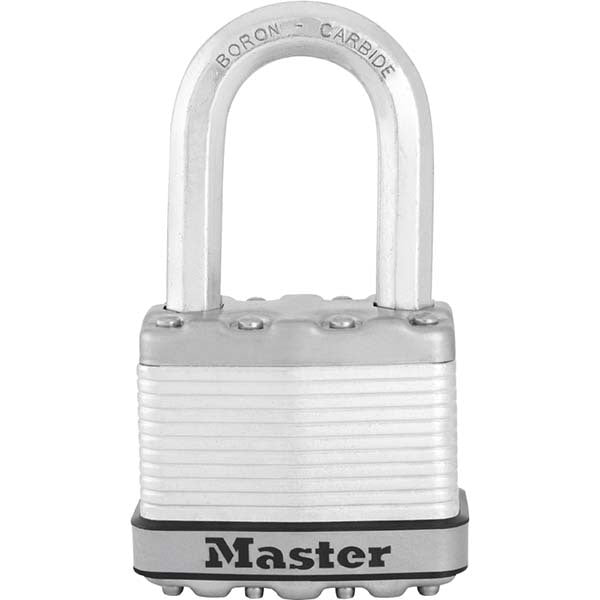

| 9 x 25 x 24mm / 2 | M5T | A0164542 |
| 9 x 38 x 24mm / 3 | M5TRILF | A0164543 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Master Lock 51mm Magnum Padlock Laminated Steel - Boron Carbide Shackle: 9 x 38 x 24 mm / 1
SKU: A0164541 | Model: M5DLF
Master Lock M5DLF: 51mm Magnum padlock, single, boron carbide shackle 9mm x 38mm.
