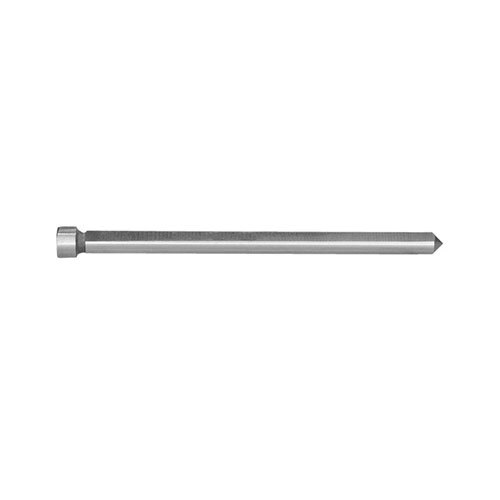

Maxbor EJPIN102 102mm Ejection Pilot Pin

The Maxbor 102mm Ejection Pilot Pin (EJPIN102) is a 102mm long pilot pin for annular cutters: it sits in the centre of the cutter and ejects the slug once the hole is cut.

This is the 102mm pin without the reduced shank. If you need a reduced shank at the same length, see the 102mm reduced shank pin (4.2/4.8mm). The catalogue pairs each annular cutter series with a specific pilot pin length, so check the pin against the cutter series you are using.

Where this product is used

• Centring an annular cutter at the start of the cut
• Ejecting the slug from the cutter after the hole is cut
• Replacing a worn or lost pilot pin on an annular cutter

Features

• 102mm long
• Pilot pin for annular cutters

Key specifications

Selecting the right option

Choose by pin length and shank: 102mm here, or the 102mm reduced shank pin. Shorter pins are the 77mm and the 82mm reduced shank; the 112mm pin is listed for TCHSS cutters 14-17mm.

Related products

See also the Maxbor long HSS annular cutters and the Maxbor TCT annular cutters.
