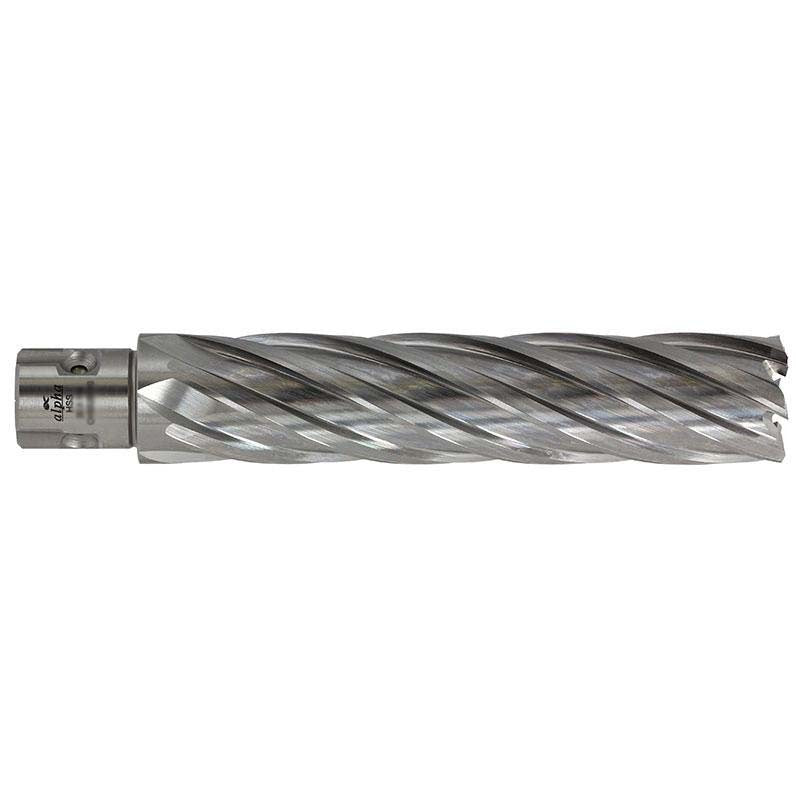

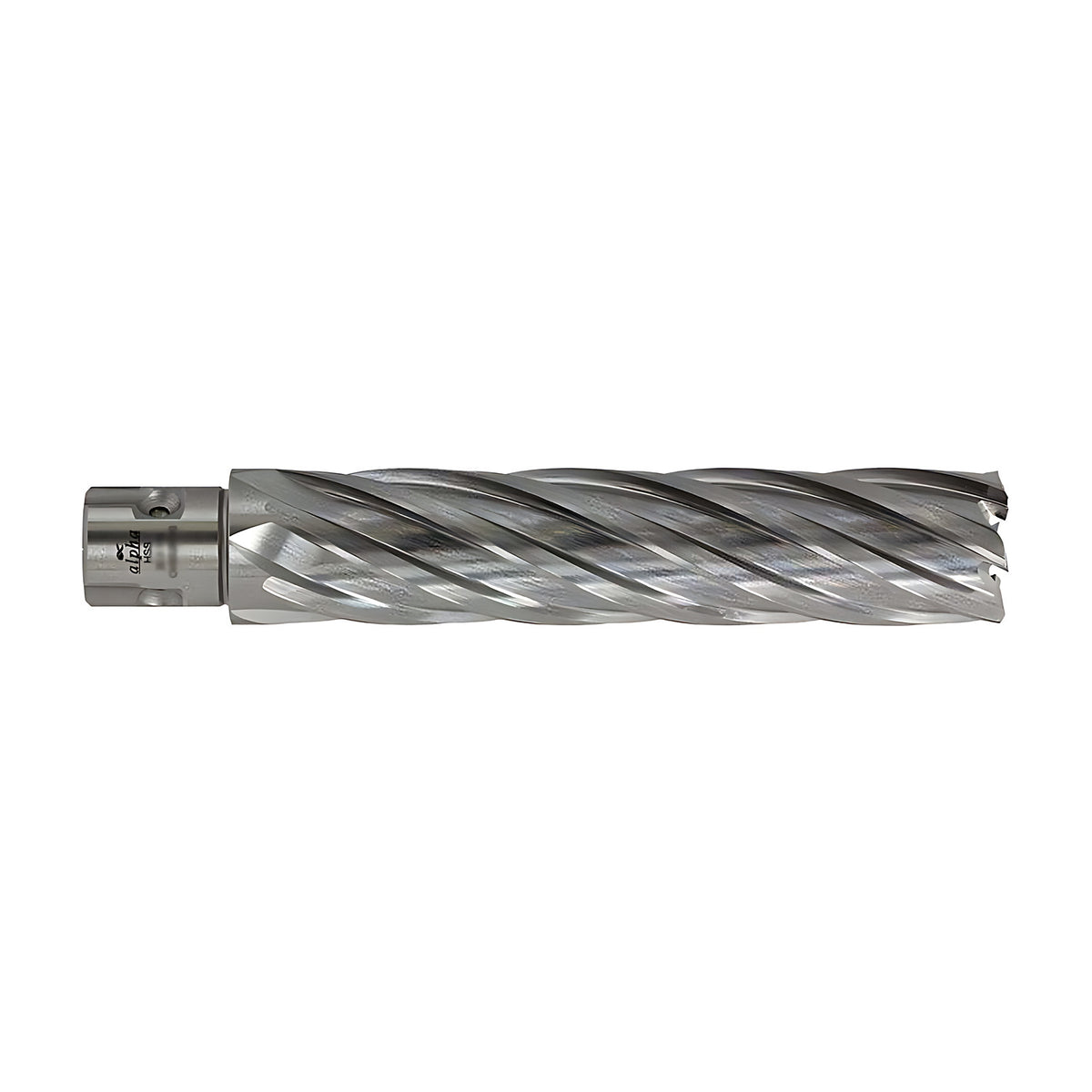

Maxbor CHSS25110 25 x 110mm Long Annular Cutter HSS Black Oxide

The Maxbor long annular cutter is a high speed steel (HSS) annular cutter with a black oxide finish and a 110mm depth of cut, with a 19.05mm (3/4") shank (manufacturer-stated). This page lists two diameters, 25mm and 43mm.

Both cutters share the same 110mm depth of cut (DoC) and shank, so the only difference between the two variants is the diameter of the hole they cut: 25mm or 43mm.

The catalogue lists a 6.35 x 155mm pilot pin for this 110mm series. That pin is not one of the Maxbor ejection pilot pins listed in this range, so check the pilot pin length against the cutter before you order.

Where this product is used

• Cutting 25mm or 43mm holes in metal plate and sections
• Drilling with an annular cutter in a magnetic drill
• Holes through thicker material where a short series cutter is too shallow

Features

• 110mm depth of cut (manufacturer-stated)
• High speed steel with a black oxide finish
• 19.05mm (3/4") shank (manufacturer-stated)
• Available here in 25mm and 43mm diameters

Common specifications

Key specifications

Depth of cut and shank are from the catalogue entry for these codes (manufacturer-stated); material and finish are from the item name.

Selecting the right option

Choose the diameter for the hole you need: 25mm (CHSS25110) or 43mm (CHSS43110). For a shallower cut see the Maxbor short series annular cutter set; for larger holes in thick material see the Maxbor tungsten carbide tipped annular cutters, 72mm to 100mm.
