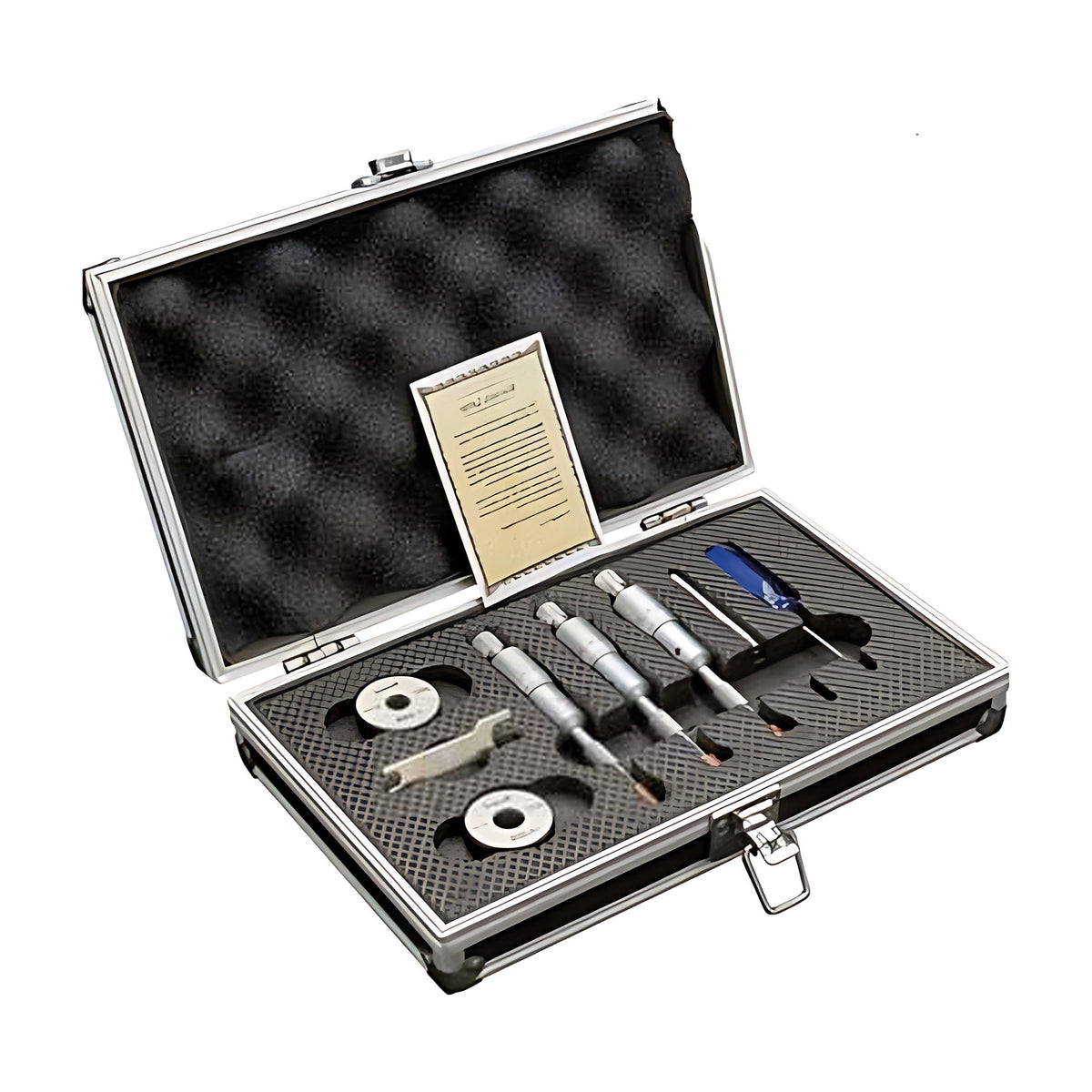

Dasqua MICIN0612 3 Point Inside Micrometer Set, 6-12mm Range
Available
Dasqua 3 point inside micrometer sets for inside measurement from 6-12mm to 50-100mm, made in accordance with DIN 863 (manufacturer-stated).
Each set has carbide measuring faces, satin chrome-plated scales and operating parts, a self aligning and self centreing action, a ratchet stop for uniform measuring pressure and non-removable anvils. (manufacturer-stated).
Where this product is used
- Inside measurement from 6mm to 100mm, by set
Features
- Made in accordance with DIN 863 (manufacturer-stated)
- Carbide measuring faces (manufacturer-stated)
- Satin chrome-plated scales and operating parts (manufacturer-stated)
- Self aligning and self centreing (manufacturer-stated)
- Ratchet stop for uniform measuring pressure (manufacturer-stated)
- Non-removable anvils (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | 3 point inside micrometer set |
| Ranges | 6-12mm, 12-20mm, 20-50mm and 50-100mm |
| Standard | Made in accordance with DIN 863 (manufacturer-stated) |
| Measuring faces | Carbide (manufacturer-stated) |
| Anvils | Non-removable (manufacturer-stated) |
Key specifications
| Part number | Range (mm) | Point ranges (mm) | Resolution (mm) | Extension (mm) |
|---|---|---|---|---|
| MICIN0612 | 6-12 | 6-8, 8-10, 10-12 | 0.001 | 50 |
| MICIN1220 | 12-20 | 12-16, 16-20 | 0.005 | 100 |
| MICIN2050 | 20-50 | 20-25, 25-30, 30-40, 40-50 | 0.005 | 150 |
| MICIN50100 | 50-100 | 50-63, 62-75, 75-88, 87-100 | 0.005 | 150 |
Resolution, point ranges and extension as printed for each set (manufacturer-stated).
Selecting the right option
Choose the set by the inside diameter: MICIN0612 covers 6-12mm, MICIN1220 12-20mm, MICIN2050 20-50mm and MICIN50100 50-100mm. MICIN0612 has the finer resolution, 0.001mm against 0.005mm on the other three (manufacturer-stated). Within a set the point ranges step up through the set range, for example 6-8, 8-10 and 10-12mm for MICIN0612.
Related products
Caliper Type Inside Micrometer (5 - 100mm, four ranges), Dial Bore Gauge and Outside Digital Micrometer - Metric.
