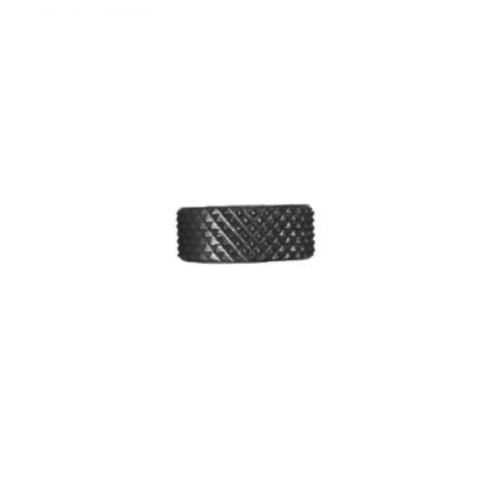

Maxigear Diamond Cross Medium Knurling Wheel, K5/8CM
Out of stock
Maxigear diamond cross medium knurling wheel replacement is available in 5/8" x 5/16" (K5/8CM, 7/32" bore).
A medium knurl has a pitch of 1.05mm or 21 TPI. The table gives each size with its bore and the tools it suits.
Where this product is used
- Replacement wheel for the KTAS and KT6S tools
Features
- Diamond cross knurling pattern
- Medium knurl, pitch 1.05mm or 21 TPI
- Size 5/8" x 5/16", bore 7/32"
- Type: Knurling wheel replacement
Key specifications
| Specification | Detail |
|---|---|
| Brand | Maxigear |
| Type | Knurling wheel replacement |
| Pattern | Diamond cross |
| Grade | Medium |
| Pitch | 1.05mm or 21 TPI |
| Part numbers | K5/8CM |
| Sizes | 5/8" x 5/16" |
Choosing the right option
Pick the wheel by the knurling tool you are fitting. The 5/8" x 5/16" size (7/32" bore) suits KTAS (self adjusting knurling tool) and KT6S (revolving knurling tool).
Same pattern, other grades: Diamond cross fine wheel, Diamond cross coarse wheel.
Same grade, other patterns: Straight medium wheel, Diagonal left hand medium wheel, Diagonal right hand medium wheel.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Maxigear Diamond Cross Medium Knurling Wheel Replacement
SKU: A0112520 | Model: K5/8CM
Maxigear K5/8CM: 5/8" x 5/16" diamond cross medium knurling wheel, bore 7/32", suits KTAS and KT6S.
