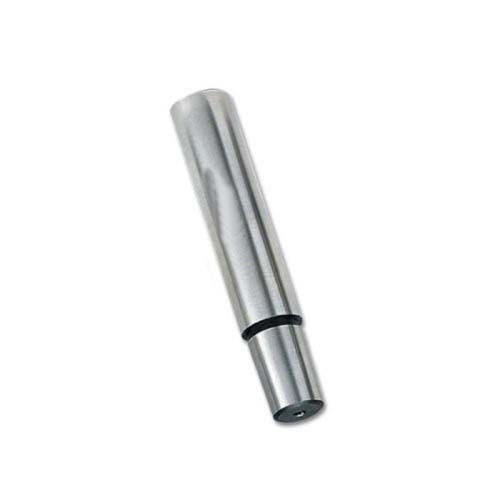

Maxigear Round Shank To Jacobs Taper Drill Chuck Arbor
Available
Maxigear round shank drill chuck arbors to Jacobs taper are available in shank diameters of 1/2", 5/8", 3/4" and 1" with Jacobs tapers 0, 1, 2, 3, 4, 6 and 33.
These arbors are in the economy range of drill chuck arbors, manufactured in India. Each part number gives its own shank diameter and Jacobs taper.
Where this product is used
- Adapting a round shank to a Jacobs taper drill chuck
Features
- Round shank in 1/2", 5/8", 3/4" or 1" diameter, by part number
- Jacobs taper 0, 1, 2, 3, 4, 6 or 33, by part number
- Part of the drill chuck arbors economy range
- Manufactured in India
Key specifications
| Specification | Detail |
|---|---|
| Brand | Maxigear |
| Type | Round shank to Jacobs taper drill chuck arbor |
| Shank diameters | 1/2", 5/8", 3/4" and 1" |
| Jacobs tapers | 0, 1, 2, 3, 4, 6 and 33 |
| Range | Economy range |
| Origin | Manufactured in India |
Choosing the right option
Choose by the shank diameter you need to grip and the Jacobs taper of your drill chuck. Jacobs tapers by shank diameter: 1/2" shank: Jacobs taper 0, 1, 2, 3, 6 and 33; 5/8" shank: Jacobs taper 1, 2, 3, 4, 6 and 33; 3/4" shank: Jacobs taper 2, 3, 4, 6 and 33; 1" shank: Jacobs taper 3 and 4. For a DIN taper instead see the round shank to DIN taper arbor.
Round shank to DIN taper: round shank to DIN taper arbor.
Other drill chuck arbors: R8 to Jacobs taper arbor, turret socket arbor, Morse taper to Jacobs taper arbor.
| Option | Part number | SKU |
|---|---|---|
| 1/2 / 0 | CA1/2-0JT | A0108614 |
| 1/2 / 1 | CA1/2-1J | A0108615 |
| 1/2 / 2 | CA1/2-2JT | A0108616 |
| 1 / 3 | CA1-3J | A0108612 |
| 1/2 / 3 | CA1/2-3J | A0108618 |
| 1 / 4 | CA1-4J | A0108613 |
| 1/2 / 6 | CA1/2-6J | A0108619 |
| 1/2 / 33 | CA1/2-33J | A0108617 |
| 3/4 / 2 | CA3/4-2JT | A0108620 |
| 3/4 / 3 | CA3/4-3JT | A0108622 |
| 3/4 / 4 | CA3/4-4JT | A0108623 |
| 3/4 / 6 | CA3/4-6JT | A0108624 |
| 3/4 / 33 | CA3/4-33JT | A0108621 |
| 5/8 / 1 | CA5/8-1J | A0108625 |
| 5/8 / 2 | CA5/8-2J | A0108626 |
| 5/8 / 3 | CA5/8-3J | A0108628 |
| 5/8 / 4 | CA5/8-4JA | A0108629 |
| 5/8 / 6 | CA5/8-6J | A0108630 |
| 5/8 / 33 | CA5/8-33J | A0108627 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Maxigear Drill Chuck Arbor Round Shank To Jacobs Taper: 1/2 / 0
SKU: A0108614 | Model: CA1/2-0JT
Maxigear CA1/2-0JT: 1/2" round shank drill chuck arbor to Jacobs taper 0, manufactured in India.
