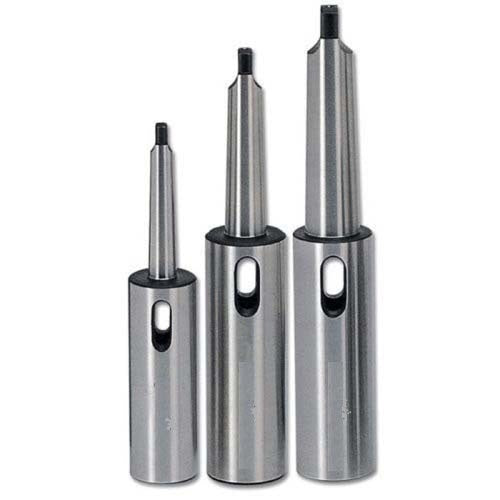

Maxigear ESMT1M-1F Economy Extension Socket, MT1 Outside, MT1 Inside, 145mm
Available
Maxigear economy range Morse taper extension sockets, from ESMT1M-1F to ESMT5M-6F: outside Morse taper 1 to 5, inside Morse taper 1 to 6, in 20 part numbers.
Maxigear lists each part number with its outside Morse taper, its inside Morse taper and its length, in its drill sleeves economy range, which it states is manufactured in India (manufacturer-stated).
Where this product is used
- Use as a Morse taper extension socket, with the outside and inside tapers set by part number
Features
- Outside and inside Morse taper listed for each part number (manufacturer-stated)
- Length listed for each part number (manufacturer-stated)
- Manufactured in India (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | Economy range Morse taper extension socket |
| Part numbers | ESMT1M-1F to ESMT5M-6F |
| Outside Morse tapers | 1 to 5 (manufacturer-stated) |
| Inside Morse tapers | 1 to 6 (manufacturer-stated) |
| Length | 145mm to 400mm (manufacturer-stated) |
| Origin | Manufactured in India (manufacturer-stated) |
Key specifications
| Part number | Outside Morse taper | Inside Morse taper | Length (manufacturer-stated) |
|---|---|---|---|
| ESMT1M-1F | 1 | 1 | 145mm |
| ESMT1M-2F | 1 | 2 | 159mm |
| ESMT1M-3F | 1 | 3 | 180mm |
| ESMT2M-1F | 2 | 1 | 160mm |
| ESMT2M-2F | 2 | 2 | 176mm |
| ESMT2M-3F | 2 | 3 | 195mm |
| ESMT2M-4F | 2 | 4 | 220mm |
| ESMT3M-1F | 3 | 1 | Not listed |
| ESMT3M-2F | 3 | 2 | 194mm |
| ESMT3M-3F | 3 | 3 | 215mm |
| ESMT3M-4F | 3 | 4 | 239mm |
| ESMT3M-5F | 3 | 5 | 270mm |
| ESMT4M-2F | 4 | 2 | 215mm |
| ESMT4M-3F | 4 | 3 | 240mm |
| ESMT4M-4F | 4 | 4 | 265mm |
| ESMT4M-5F | 4 | 5 | 300mm |
| ESMT5M-3F | 5 | 3 | 295mm |
| ESMT5M-4F | 5 | 4 | 295mm |
| ESMT5M-5F | 5 | 5 | 335mm |
| ESMT5M-6F | 5 | 6 | 400mm |
Tapers and length as printed by Maxigear for each part number; no length is listed for ESMT3M-1F (manufacturer-stated).
Selecting the right option
Choose by the two Morse tapers and the length. The code reads ESMT, the outside taper, M-, the inside taper and F: ESMT3M-2F has Morse taper 3 outside and Morse taper 2 inside. The longest in this range is ESMT5M-6F (400mm) and the shortest ESMT1M-1F (145mm). For the 300mm and 350mm sockets see the Morse taper extension socket.
Related products
Other extension sockets: Morse taper extension socket. Drill sleeves: economy range drill sleeve. Morse taper arbors: Morse taper to Jacobs taper arbor.
