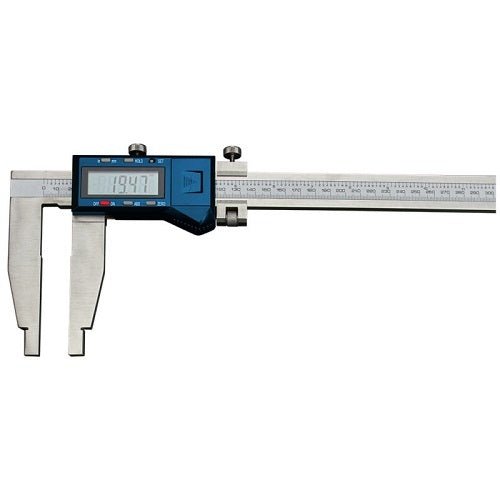

Dasqua heavy duty digital calipers, Range 500mm

Dasqua heavy duty digital calipers in 300mm / 12", 500mm / 20", 600mm / 24" and 1000mm / 40" ranges, with a large screen readout and long jaws.

The reading is 0.01mm / 0.0005" on every range. The jaws are 90mm on the 300mm caliper, 100mm on the 500mm and 600mm calipers and 200mm on the 1000mm caliper. They have fine adjustment, a hold function, metric / inch fraction conversion and hardened stainless steel construction for long life, and they are made in accordance with DIN862.

Where this product is used

• Measuring over long ranges, 300mm to 1000mm, with a large screen readout

Features

• Large screen readout, 15mm character height
• Long jaws
• Fine adjustment
• Hold function
• Metric / inch fraction conversion
• Hardened stainless steel construction for long life
• Made in accordance with DIN862

Key specifications

Choosing the right option

Choose by range first: the CE300LJ measures to 300mm / 12", the CE500 to 500mm / 20", the CE600 to 600mm / 24" and the CE1000 to 1000mm / 40", all with a reading of 0.01mm / 0.0005". The jaws are 90mm, 100mm, 100mm and 200mm respectively. If 300mm is enough and you want protection against liquids, see the IP54 large screen digital caliper or the IP67 coolant proof digital caliper.

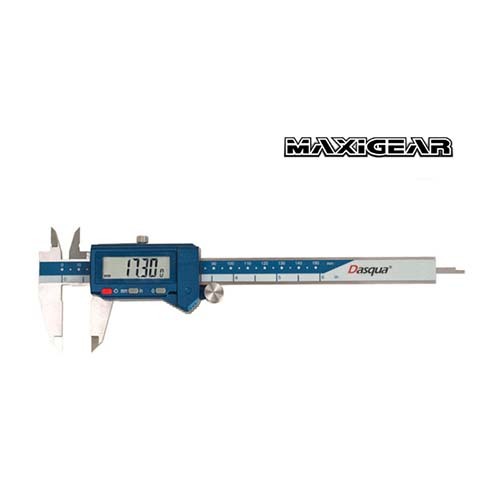

300mm digital calipers with liquid protection: Dasqua IP54 large screen digital caliper, Dasqua IP67 coolant proof digital caliper.

Vernier calipers in long ranges: Dasqua vernier caliper with fine adjustment.
