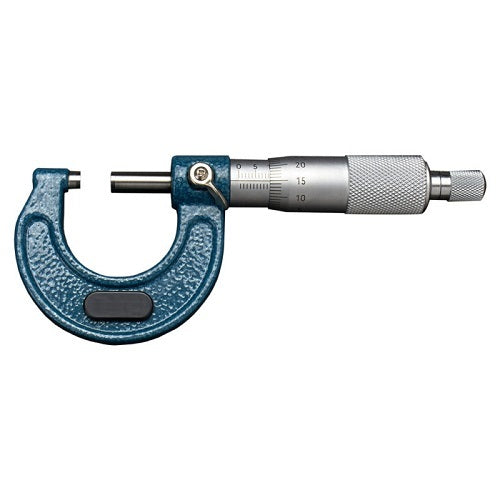

Dasqua imperial outside micrometers, 0 - 1

Imperial outside micrometers in 1" ranges, from 0-1" to 9-10" and the 11-12" size, each with a 0.001" reading.

The part number ends in the range in inches: MIC4-5 measures from 4" to 5". The 0-1" to 5-6" micrometers are made to DIN 863, with carbide measuring faces, a stainless steel measuring spindle and a ratchet stop that sets a 5-8N measuring force.

Where this product is used

• Measuring the outside dimension of a part between the anvil and the spindle

Features

• 0.001" reading on every size, from 0-1" to 11-12"
• DIN 863, carbide measuring faces and a stainless steel spindle on the 0-1" to 5-6" micrometers
• Ratchet stop with a 5-8N measuring force on the 0-1" to 5-6" micrometers, to limit the force on the spindle
• Laser-engraved scales on a chrome-plated surface, 0-1" to 5-6"

Key specifications

Supplied with

• MIC0-1, 0-1", 0.00015"
• MIC1-2, 1-2", 0.00015"
• MIC2-3, 2-3", 0.0002"
• MIC3-4, 3-4", 0.0002"
• MIC4-5, 4-5", 0.00025"
• MIC5-6, 5-6", 0.00025"

Choosing the right option

Choose the model whose range contains the dimension you are measuring: MIC0-1 reads 0-1", MIC5-6 reads 5-6" and MIC11-12 reads 11-12". Every size reads to 0.001". From 0-1" to 5-6", and an accuracy of 0.00015" up to 2", 0.0002" from 2 to 4" and 0.00025" from 4 to 6". For millimetre work see the metric outside micrometers; for several ranges in one box see the outside micrometer boxed sets, which include a 0-6" set.

Same type: Outside Micrometer - Metric, Outside Micrometer Boxed Set.
