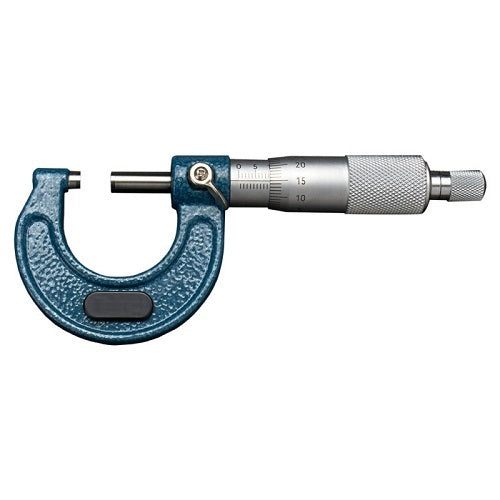

Dasqua metric outside micrometers, 0 -25

Metric outside micrometers from 0-25mm to 900-1000mm, each with a 0.01mm reading.

The ranges step in 25mm from 0-25mm to 275-300mm, then in 100mm up to 900-1000mm, and the part number ends in the range: MIC125-150 measures from 125mm to 150mm. The 0-25mm to 125-150mm micrometers are made to DIN 863, with carbide measuring faces, a stainless steel measuring spindle and a ratchet stop that sets a 5-8N measuring force.

Where this product is used

• Measuring the outside dimension of a part between the anvil and the spindle

Features

• 0.01mm reading on every size, from 0-25mm to 900-1000mm
• Interchangeable anvils on the large micrometers, 300-400mm to 900-1000mm
• DIN 863, carbide measuring faces and a stainless steel spindle on the 0-25mm to 125-150mm micrometers
• Ratchet stop with a 5-8N measuring force on the 0-25mm to 125-150mm micrometers, to limit the force on the spindle
• Laser-engraved scales on a chrome-plated surface, 0-25mm to 125-150mm

Key specifications

Supplied with

• MIC0-25, 0-25mm, 0.004mm
• MIC25-50, 25-50mm, 0.004mm
• MIC50-75, 50-75mm, 0.005mm
• MIC75-100, 75-100mm, 0.005mm
• MIC100-125, 100-125mm, 0.006mm
• MIC125-150, 125-150mm, 0.006mm

Choosing the right option

Choose the model whose range contains the dimension you are measuring: MIC0-25 to MIC275-300 cover 25mm each, and MIC300-400 to MIC900-1000 cover 100mm each. Every size reads to 0.01mm. Large micrometers have interchangeable anvils: these are the 300-400mm and larger models here. From 0-25mm to 125-150mm, and an accuracy of 0.004mm up to 50mm, 0.005mm from 50 to 100mm and 0.006mm from 100 to 150mm. For inch work see the imperial outside micrometers; for several ranges in one box see the outside micrometer boxed sets.
