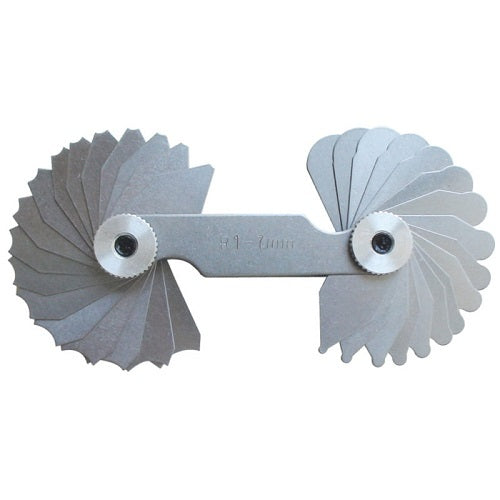

Maxigear Imperial Radius Gauge, RG1/32-1/4, RG17/64-1/2, 30
Available
Maxigear imperial radius gauges are available in two ranges: 1/32 - 1/4" (RG1/32-1/4) and 17/64 - 1/2" (RG17/64-1/2), both in 1/64" steps.
It is a handy device for checking radii of tools and dies easier and faster, measuring both convex and concave radii. The leaf count is given for each range: 30 and 32 leaves.
Where this product is used
- Checking radii of tools and dies
- Measuring both convex and concave radii
Features
- Checks convex and concave radii
- Two imperial ranges from 1/32" to 1/2", by 1/64"
- 30 or 32 leaves, by range
- Type: Imperial radius gauge
Key specifications
| Specification | Detail |
|---|---|
| Brand | Maxigear |
| Type | Imperial radius gauge |
| Part numbers | RG1/32-1/4 and RG17/64-1/2 |
| Radius ranges | 1/32 - 1/4" and 17/64 - 1/2", by 1/64" |
| Leaves | 30 and 32, by range |
Choosing the right option
Choose the range that holds the radius you check: RG1/32-1/4 for 1/32 - 1/4" (30 leaves) or RG17/64-1/2 for 17/64 - 1/2" (32 leaves). For metric radii see the metric radius gauge.
Metric version: Metric radius gauge.
Other gauges: Imperial drill gauge, Taper bore gauge.
| Option | Part number | SKU |
|---|---|---|
| 30 | RG1/32-1/4 | A0112822 |
| 32 | RG17/64-1/2 | A0112823 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Maxigear Radius Gauge - Imperial: 30
SKU: A0112822 | Model: RG1/32-1/4
Maxigear RG1/32-1/4: imperial radius gauge, 1/32 - 1/4" range by 1/64", 30 leaves, checks convex and concave radii.
