Maxigear MPA16x17 16 x 17mm Round Pot Magnet, 16mm Diameter
Available

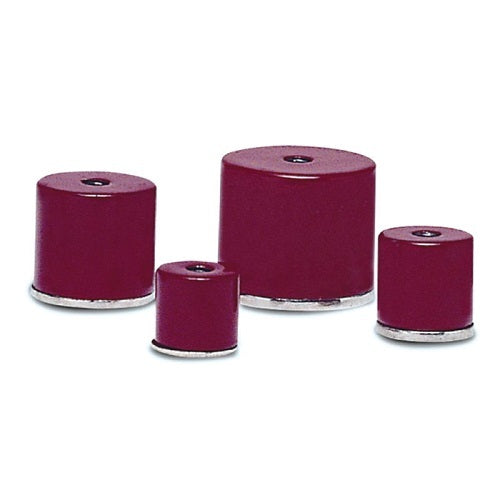

Maxigear round pot magnets in four sizes, from 16 x 17mm (MPA16x17) to 30 x 35mm (MPD30x35).
Maxigear describes a general purpose magnet for magnetic fasteners, displays and holding maps, supplied with plated keepers (manufacturer-stated). An approximate pull is printed for each size, from 2.65 kg to 10.5 kg (manufacturer-stated).
Where this product is used
- Magnetic fasteners (manufacturer-stated)
- Displays (manufacturer-stated)
- Holding maps (manufacturer-stated)
Features
- General purpose pot magnet (manufacturer-stated)
- Supplied with plated keepers (manufacturer-stated)
- Approximate pull printed for each size (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Type | Round pot magnet |
| Part numbers | MPA16x17 to MPD30x35 |
| Diameters | 16mm to 30mm |
| Approximate pull | 2.65 kg to 10.5 kg, by size (manufacturer-stated) |
| Keepers | Plated keepers supplied (manufacturer-stated) |
Key specifications
| Part number | Diameter | Size (manufacturer-stated) | Approximate pull (manufacturer-stated) |
|---|---|---|---|
| MPA16x17 | 16mm | 16 x 17mm | 2.65 kg |
| MPB19x22 | 19mm | 19 x 22mm | 4 kg |
| MPC25x27 | 25mm | 25 x 27mm | 5 kg |
| MPD30x35 | 30mm | 30 x 35mm | 10.5 kg |
Size and approximate pull as printed by Maxigear for each part number.
Selecting the right option
Choose by the pull you need: Maxigear prints an approximate pull of 2.65 kg (MPA16x17), 4 kg (MPB19x22), 5 kg (MPC25x27) and 10.5 kg (MPD30x35) (manufacturer-stated). Treat the figures as approximate and allow a margin for your load.
