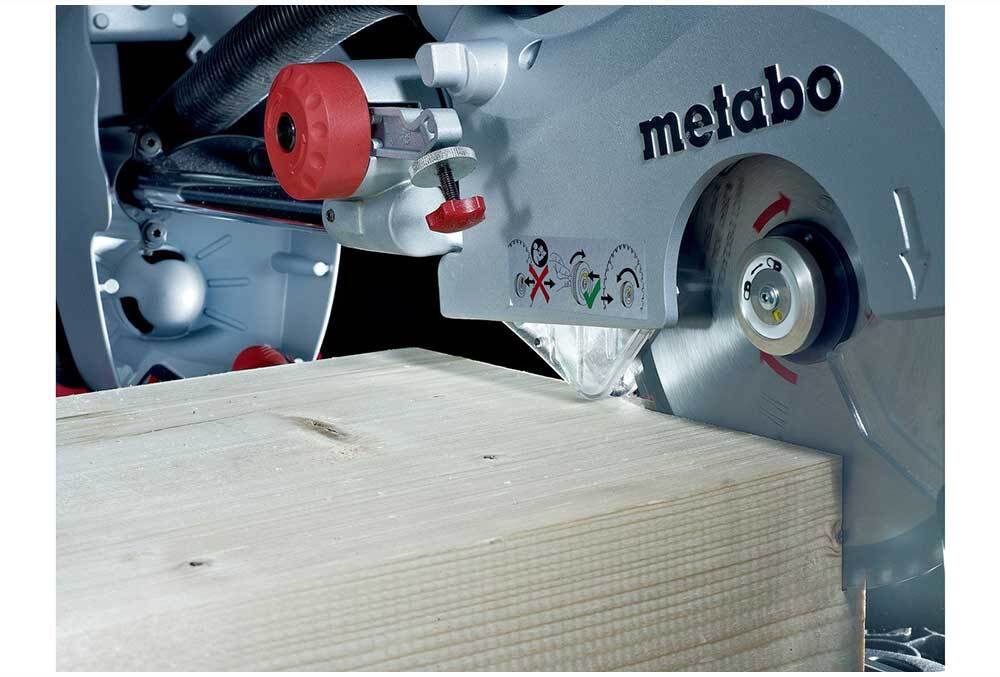

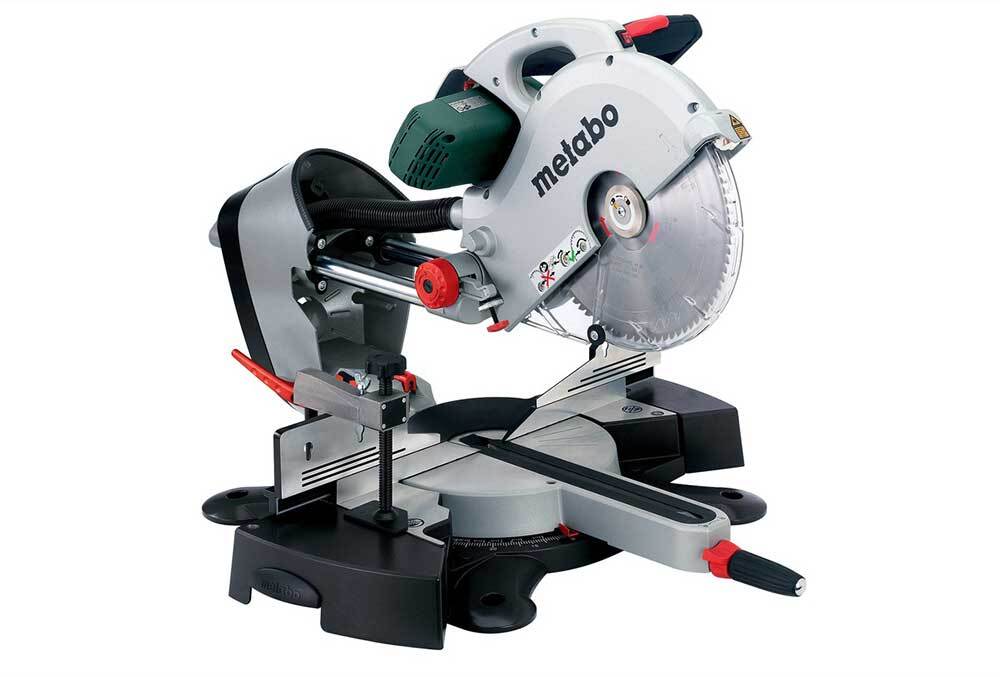

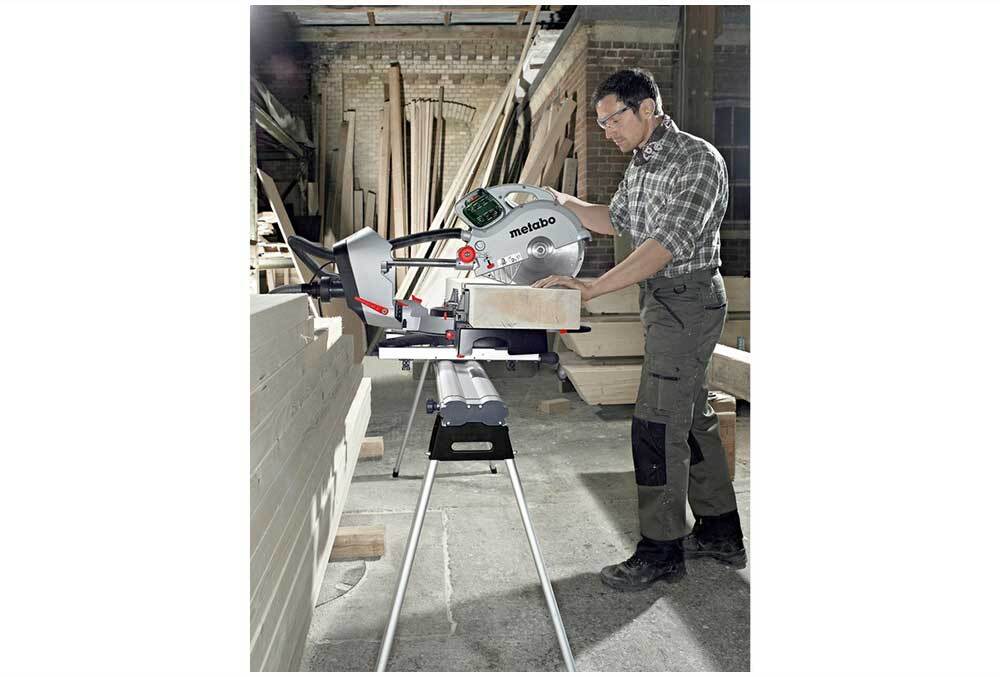

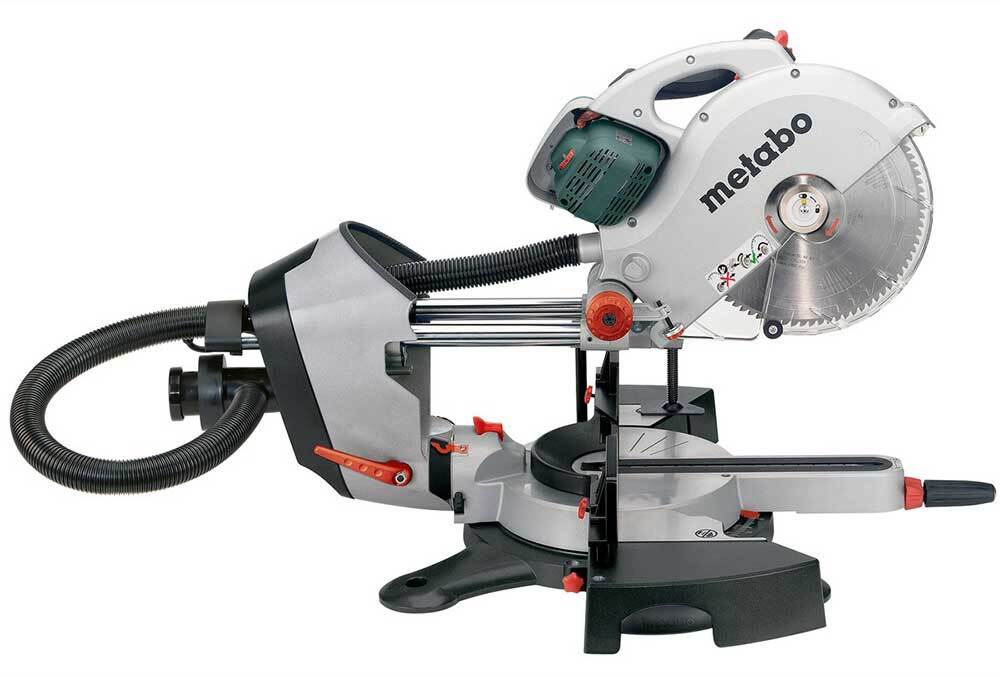

Metabo KGS 315 Plus Sliding Compound Mitre Saw

• Maximum flexibility when sawing thanks to rotating table and inclinable saw head on both sides
• Enormous cutting performance due to extremely powerful universal motor and large saw blade
• Speed control for extended range of application, e.g. for cutting of aluminium profiles and plastics
• Large cutting capacity thanks to sliding function for wide work pieces
• Easy transport thanks to ergonomically-designed handles and saw head lock
• Superb dust extraction capability thanks to a dual extraction port design aligned closely to the work piece.
• Vario-Constamatic (VC)-Full wave electronics for working at customised speeds to suit the application materials, and speeds that remain almost constant even under load
• Metabo Quick for changing saw blades without tools
• Soft start for long service life of motor and drive
• Fast and precise setting of common angles using stop points
• Sliding high rear fence profiles for safe sawing
• Quick-action clamp for secure fixing of the work piece from the top or front
• Integrated, pull-out table width extensions made from die-cast aluminium
• Depth guide for easy creation of grooves
• All scales and operating elements are visible from the working position and can be operated intuitively

Includes

• Carbide saw blade (84 teeth)
• 2 Table length extensions
• Material clamp
• Adapter 35/58 mm

Technical Data

• Maximum cutting width 90°/45°: 320 / 223 mm // 12 9/16 / 8 3/4 "
• Maximum cutting depth at 90°/45°: 120 / 76 mm // 4 11/16 / 3 "
• Rated input power: 1600 W
• Rated input power S1 100%: 1600 W
• Rated input power S6 20%: 2200 W

Characteristics

Dimensions
950 x 765 x 660 mm // 3.2 x 2.5 x 2.2 ft
Support surface
1070 x 505 x 365 mm
Maximum cutting width 90°/45°
320 / 223 mm // 12 9/16 / 8 3/4 "
Maximum cutting depth at 90°/45°
120 / 76 mm // 4 11/16 / 3 "
Cutting capacity 90°/90°
320 x 120 mm // 12 9/16 x 4 11/16 "
Cutting capacity 45°/45°
223 x 76 mm // 8 25/32 x 3 "
Turntable setting left/right
47 / 60 °
Saw blade tilt left/right
46 / 46 °
Saw blade
315 x 30 mm // 12 3/8 x 1.181 "
Rated input power
1600 W
Rated input power S1 100%
1600 W
Rated input power S6 20%
2200 W
No-load speed
3100 - 4100 rpm
Revolutions at rated load
4100 rpm
Cutting speed
51 - 68 m/s // 167 - 223 ft/s
Weight
27.2 kg / 60 lbs
Cable length
2.1 m / 7 ft

Noise Emission

Sound pressure level
89 dB(A)
Sound power level (LwA)
98 dB(A)
Uncertainty of measurement K
2.6 dB(A)
