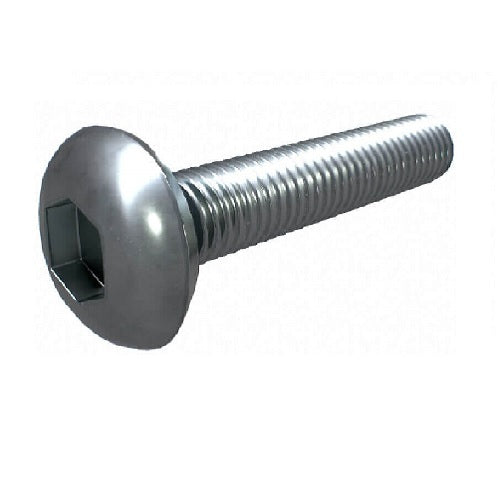

Hobson Metric Button Head Socket Screw, M4 / 8mm

The Hobson metric button head socket screw has a metric thread and is alloy steel, zinc finish, grade 12.9. There are 56 items: M4 to M12, in lengths from 8mm to 100mm. Head style: BHCS, Button Head Cap Screw.

The head is low and domed, with a socket drive. This item is Grade 12.9. It changes with the size and length.

Where this product is used

• Low-profile fixing where a smooth rounded head is wanted, such as guards, covers and panels
• Machine guards and enclosures where a rounded head will not snag clothing or hands
• Light-duty fixing where the taller head of a cap screw would be in the way
• Dry, indoor and sheltered locations such as workshops, enclosed machinery and interior fit-out
• Heavy-duty, high-load assemblies in machinery and equipment
• Choosing between the 56 items here: they cover diameters from M4 to M12 and lengths from 8mm to 100mm

Features

• 56 items: M4 to M12
• Metric thread, button head socket screw
• Alloy steel
• Zinc finish
• Zinc plated finish, for indoor and sheltered locations
• Class 12.9 alloy steel for heavy-duty, high-load work

Key specifications

Choosing the right option

Choose the thread form first: the screw must match its nut or tapped hole in thread form, diameter and pitch.

Zinc plating suits workshops, enclosed machinery and interior fit-out. Because the electroplated coating is thin, it is generally unsuitable for outdoor exposure and does not meet treated-timber requirements (not suitable for treated pine). For weather-exposed work, look at a hot dip galvanised version instead; within about 1 km of the sea, 316 stainless is generally the safer choice. Because electroplating can cause hydrogen embrittlement in high-strength steel, high-strength zinc plated fasteners are baked after plating.

Class 12.9 is alloy steel for heavy-duty, high-load assemblies, with the minimum tensile strength shown against each size. For load-critical, structural or lifting joints, confirm the fastener against the engineer's specification. Fasteners are not lifting rated unless marked.
