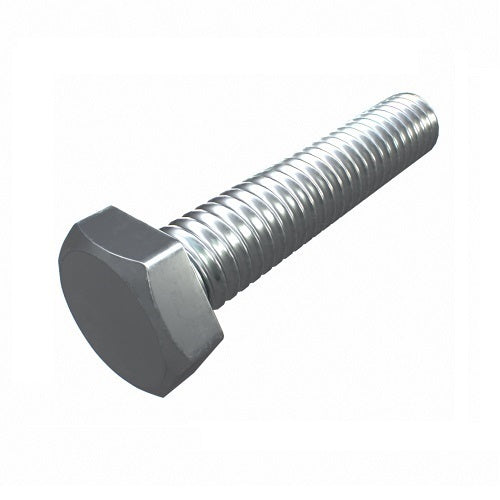

Hobson BS46PCM160040 M16 x 40mm Metric Hex Set Screw, Class 4.6 UTS, Plain

The Hobson metric hex set screw has a hex head and a metric thread, and is fitted into a tapped hole or through a clearance hole with a nut (Class 4.6 UTS, plain). This page lists 14 items: M16, M20 and M24, in lengths from 40 to 150mm.

Hobson lists class 4.6 as low tensile carbon steel, and its class and grade chart pairs class 4.6 with imperial grade 2 (manufacturer-stated).

The supplier names these screws Class 4.6 UTS. The Hobson acronym list includes UTS as a tensile strength abbreviation (manufacturer-stated).

The pitch shown for each size is the coarse pitch given in the Hobson thread table (manufacturer-stated).

Pack quantity is shown for each item in the table.

Where this product is used

• Fitted into a tapped hole, or through a clearance hole with a nut and washer, to clamp parts together
• Replacing a hex head screw of the same thread form, diameter, pitch and length
• Machinery, equipment and fabrication work where a hex head screw is called for

Features

• 14 items: M16, M20 and M24
• Metric thread, pitch shown in the table
• Class 4.6 UTS, plain
• Length 40 to 150mm

Common specifications

Key specifications

Selecting the right option

Choose the thread form first: the screw and the nut or tapped hole must match in thread form, diameter and pitch. Metric sizes are the nominal diameter in millimetres; compare the pitch in the table with your nut or tapped hole. Length is measured from under the head to the end of the screw. Check the across-flats size of the head before choosing a spanner; no spanner size is published for these items. For a different strength level see Hobson Metric Hex Set Screw, Class 8.8, Plain, M6 to M24.
