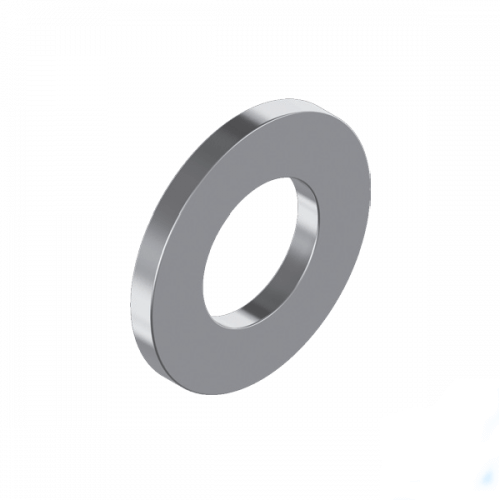

M3 Mudguard Washer, 304 Stainless Steel - FWMA2M3
The price shown is for the box.
Available
Made in 304 (A2) stainless steel, the Metric Mudguard Washer is a flat washer with a large outer diameter. The wide bearing area spreads the load on thin or soft materials.
A2 stainless (grade 304) gives sound general corrosion resistance for inside work, fresh water and ordinary outdoor exposure. It is not the grade normally chosen for coastal, pool or marine work, where A4 (316) is recommended. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.
This listing has 12 variants covering sizes M3 to M30. Variants are supplied in packs of 20 to 200, depending on size.
Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Fixing thin sheet, plastic and fibreglass panels
- Small sizes for enclosures, instruments and light fittings
- Fresh water and general outdoor fittings
- Indoor architectural and joinery work
- Bulk jobs and trade or maintenance stores buying in larger packs
- Mudguards, guards and covers
Features
- Choice of 12 sizes, M3 to M30
- Large outer diameter spreads the load
- Reduces pull-through in thin material
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
- Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
- Supplied in packs of 20 to 200
Key specifications
| Specification | Detail |
|---|---|
| Product | Metric Mudguard Washer |
| Type | Flat washer with a large outer diameter |
| Material | A2 (304) stainless steel |
| Size system | Metric |
| Pack size | 20 to 200, by size |
| Suited to | Indoor, fresh water and general outdoor use |
| Number of variants | 12 |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Key features | Large outer diameter spreads the load; Reduces pull-through in thin material |
| Sizes | M3 to M30 |
Selecting the right option

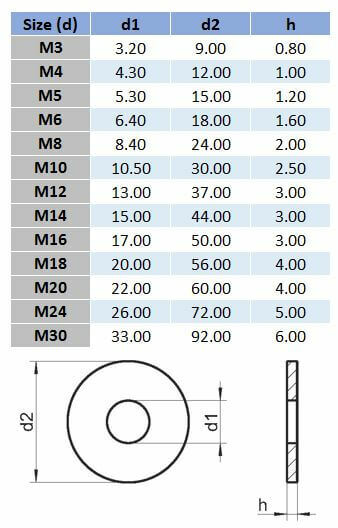

Match the washer to the fastener size. Outer diameter and thickness are listed on each variant. For coastal or chloride-exposed use, choose the A4 (316) version: Metric Mudguard Washer - 316 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Metric Mudguard Washer - 304 Stainless Steel: M3
SKU: A0073234 | Model: FWMA2M3
FWMA2M3: M3 mudguard washer, 304 Stainless Steel. Sold in a box of 200. Suits fixing thin sheet, plastic and fibreglass panels.
