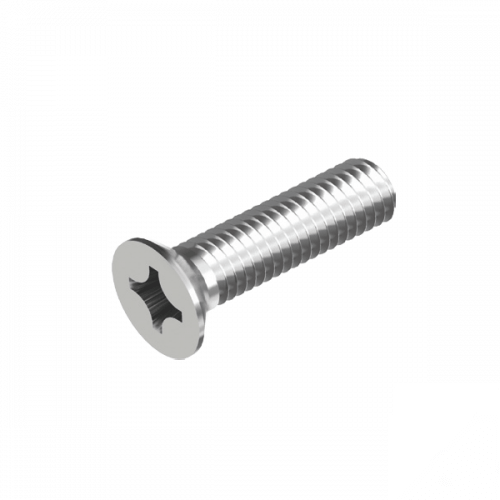

M2 x 4 mm Phillips Countersunk Machine Screw, 304 Stainless Steel - CPSA2M2X4
The price shown is for the box.
Available
The Metric Phillips Head Countersunk (Machine) Screw, 304 Stainless Steel is a machine-thread screw with a flat countersunk head and a Phillips cross recess. The head sits flush in a countersunk hole.
The range runs to 97 variants, covering sizes M2 to M8 and lengths 4 mm to 100 mm. Pack quantities depend on size: packs of 50 to 100.
A2 (304) stainless steel is the common general-purpose austenitic grade. It resists corrosion well indoors, in fresh water and in most general outdoor conditions, but it is not recommended where chlorides are present, such as coastal, pool and marine settings. Choose A4 (316) there. Metric sizes are written M followed by the nominal thread diameter in millimetres, so M10 is a 10 mm thread.
Austenitic stainless steel is generally non-magnetic, although cold-worked parts can show weak magnetism. In wet conditions, keep stainless steel apart from aluminium and galvanised steel with a washer or sleeve, to reduce the risk of galvanic corrosion.
Where this product is used
- Kitchen, bathroom and laundry fixtures
- Flush fixings in panels, brackets and plates
- Small sizes for enclosures, instruments and light fittings
- Fresh water and general outdoor fittings
- Indoor architectural and joinery work
- Hinges and hardware that need a flat surface
Features
- Supplied in packs of 50 to 100
- Choice of 97 sizes, M2 to M8
- Phillips cross recess for common screwdrivers
- Countersunk head sits flush in a countersunk hole
- Metric thread sizes match the nuts, bolts and tapped holes in most Australian-supplied equipment
- A2 (304) stainless steel for indoor, fresh water and general outdoor use
Key specifications
| Specification | Detail |
|---|---|
| Product | Metric Phillips Head Countersunk (Machine) Screw |
| Type | Machine-thread screw with a flat countersunk head and a Phillips cross recess |
| Material | A2 (304) stainless steel |
| Length range | 4 mm to 100 mm |
| Fitting tip | Use anti-seize on the thread to reduce galling |
| Drive | Phillips |
| Head type | Countersunk |
| Sizes | M2 to M8 |
| Magnetic response | Generally non-magnetic (austenitic); cold-worked parts can show weak magnetism |
| Key features | Countersunk head sits flush in a countersunk hole; Phillips cross recess for common screwdrivers |
| Supplied in packs of | 50 to 100, by size |
| Environment | Indoor, fresh water and general outdoor use |
| Number of variants | 97 |
| Thread system | Metric |
Selecting the right option
The material needs a countersink cut to suit the head. Use a correctly sized Phillips driver and avoid power drivers at speed. A drop of anti-seize on the thread helps prevent galling. For coastal or chloride-exposed use, choose the A4 (316) version: Metric Phillips Head Countersunk (Machine) Screw - 316 Stainless Steel.
Related products
Other versions in this range: BSW Phillips Head Countersunk (Machine) Screw - 316 Stainless Steel and BSW Phillips Head Countersunk (Machine) Screw - 304 Stainless Steel. Matching products: Metric Standard Hex Nut - 304 Stainless Steel and Inox Standard Flat Round Washer - 304 Stainless Steel.
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Metric Phillips Head Countersunk (Machine) Screw - 304 Stainless Steel: M2 / 4 mm
SKU: A0072646 | Model: CPSA2M2X4
CPSA2M2X4: M2 x 4 mm Phillips countersunk machine screw, 304 Stainless Steel. Sold in a box of 100. Suits flush fixings in panels, brackets and plates.
