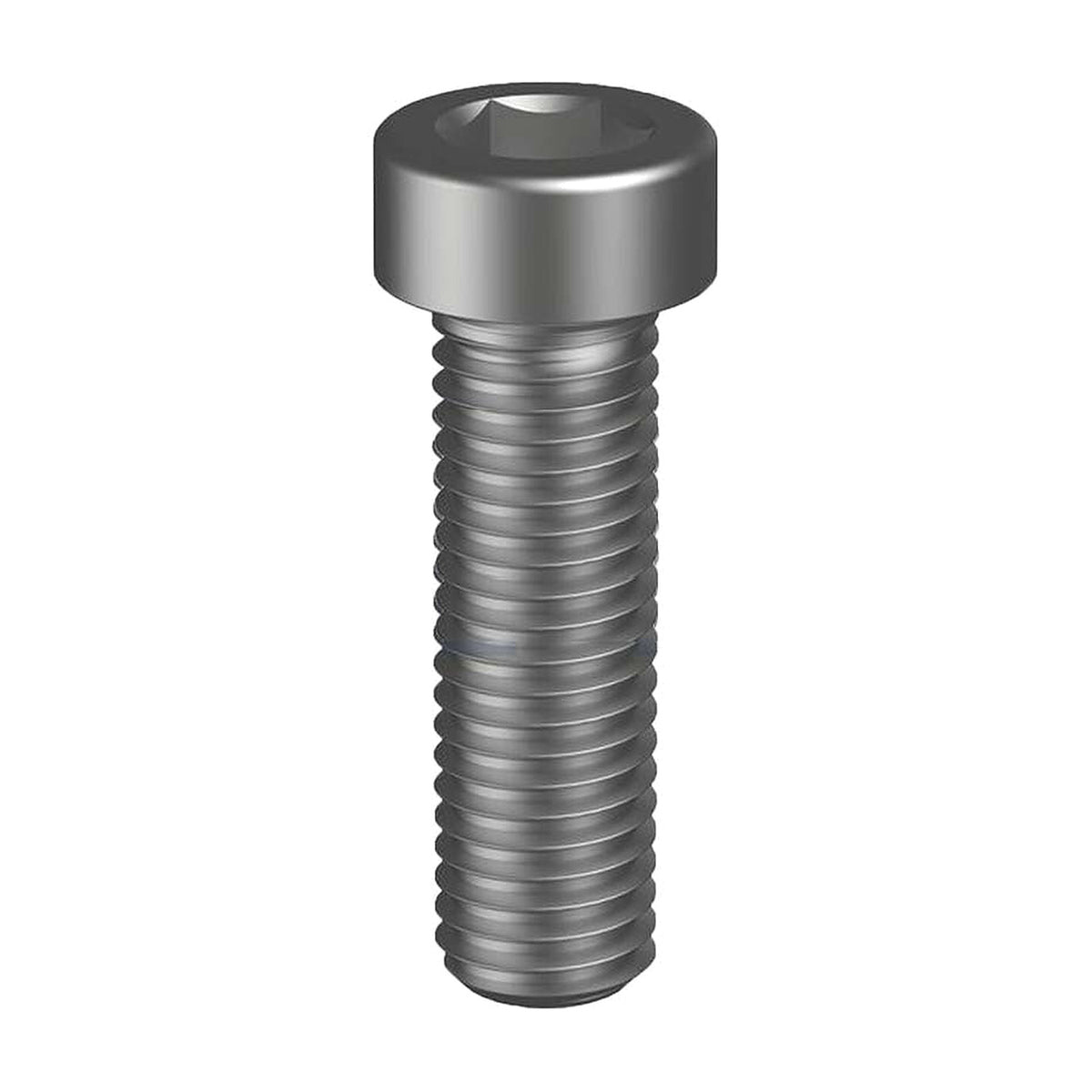

Hobson metric socket head cap screw, plain finish, close view of round head with hex socket and threaded shank
Hobson metric socket head cap screw, plain finish, close view of round head with hex socket and threaded shank

Hobson SHSOPCM020006 M2 x 6mm Metric Socket Head Cap Screw, Grade 12.9, Plain

$5.50
$5.50
Inc. GST

Available

The Hobson metric socket head cap screw on this page has a metric thread and is alloy steel, plain finish, grade 12.9. This page lists 250 items: M2 to M22, in lengths from 6mm to 300mm.

The Hobson acronym list names this head style: SHCS, Socket Head Cap Screw (manufacturer-stated).

The head carries a socket, so the screw is driven with a key or bit instead of a spanner.

The supplier names this item G12.9. The Hobson guide lists class 12.9 as alloy steel, quenched and tempered, for metric sizes M6 to M48 (the guide says class where the supplier says grade) (manufacturer-stated).

Strength figures are shown for sizes M6 and above only; the Hobson table does not cover the smaller sizes, so none is published for them.

The pitch shown for each size is the coarse pitch given in the Hobson thread table (manufacturer-stated).

Pack quantity is shown for each item in the table. It changes with the size and length.

The supplier file does not give the socket (key) size, head dimensions or thread length for these screws, so none are published. Check the key size against a screw in hand.

Where this product is used

  • Fastening parts together into a tapped hole or with a nut
  • Driven from the socket in the head with a matching key or bit
  • Replacing a socket head cap screw of the same thread form, size and length

Features

  • 250 items: M2 to M22
  • Metric thread, socket head cap screw
  • Alloy steel
  • Plain finish
  • Grade 12.9 strength level named by the supplier
  • Minimum tensile strength per size from the Hobson guide, shown in the table (manufacturer-stated)

Common specifications

Specification Detail
Sizes M2 to M22
Thread Metric
Head Socket head cap
Material Alloy steel
Finish Plain
Strength class Grade 12.9
Lengths 6mm to 300mm

Pitch and strength by size

Size Pitch (manufacturer-stated) Min. tensile strength (manufacturer-stated) Proof load (manufacturer-stated)
M2 0.4mm - -
M2.5 0.45mm - -
M3 0.5mm - -
M4 0.7mm - -
M5 0.8mm - -
M6 1mm 1220 MPa 970 MPa
M8 1.25mm 1220 MPa 970 MPa
M10 1.5mm 1220 MPa 970 MPa
M12 1.75mm 1220 MPa 970 MPa
M14 2mm 1220 MPa 970 MPa
M16 2mm 1220 MPa 970 MPa
M18 2.5mm 1220 MPa 970 MPa
M20 2.5mm 1220 MPa 970 MPa
M22 2.5mm 1220 MPa 970 MPa

Key specifications

Model Size Supplied as
SHSOPCM020006 M2 x 6mm Box of 100
SHSOPCM020008 M2 x 8mm Box of 100
SHSOPCM020010 M2 x 10mm Box of 100
SHSOPCM020012 M2 x 12mm Box of 100
SHSOPCM0250006 M2.5 x 6mm Box of 100
SHSOPCM0250008 M2.5 x 8mm Box of 100
SHSOPCM0250010 M2.5 x 10mm Box of 100
SHSOPCM0250012 M2.5 x 12mm Box of 100
SHSOPCM0250016 M2.5 x 16mm Box of 100
SHSOPCM030006 M3 x 6mm Box of 100
SHSOPCM030008 M3 x 8mm Box of 100
SHSOPCM030010 M3 x 10mm Box of 100
SHSOPCM030012 M3 x 12mm Box of 100
SHSOPCM030016 M3 x 16mm Box of 100
SHSOPCM030020 M3 x 20mm Box of 100
SHSOPCM030025 M3 x 25mm Box of 100
SHSOPCM030030 M3 x 30mm Box of 100
SHSOPCM030035 M3 x 35mm Box of 100
SHSOPCM030040 M3 x 40mm Box of 100
SHSOPCM030045 M3 x 45mm Box of 100
SHSOPCM030050 M3 x 50mm Box of 100
SHSOPCM040006 M4 x 6mm Box of 100
SHSOPCM040008 M4 x 8mm Box of 100
SHSOPCM040010 M4 x 10mm Pack of 100
SHSOPCM040012 M4 x 12mm Box of 100
SHSOPCM040016 M4 x 16mm Box of 100
SHSOPCM040020 M4 x 20mm Box of 100
SHSOPCM040025 M4 x 25mm Box of 100
SHSOPCM040030 M4 x 30mm Box of 100
SHSOPCM040035 M4 x 35mm Box of 100
SHSOPCM040040 M4 x 40mm Box of 100
SHSOPCM040045 M4 x 45mm Box of 100
SHSOPCM040050 M4 x 50mm Pack of 100
SHSOPCM040055 M4 x 55mm Box of 100
SHSOPCM040060 M4 x 60mm Box of 100
SHSOPCM040065 M4 x 65mm Box of 100
SHSOPCM040080 M4 x 80mm Box of 100
SHSOPCM040090 M4 x 90mm Box of 100
SHSOPCM050006 M5 x 6mm Box of 100
SHSOPCM050008 M5 x 8mm Box of 100
SHSOPCM050010 M5 x 10mm Box of 100
SHSOPCM050012 M5 x 12mm Box of 100
SHSOPCM050016 M5 x 16mm Box of 100
SHSOPCM050020 M5 x 20mm Box of 100
SHSOPCM050025 M5 x 25mm Box of 100
SHSOPCM050030 M5 x 30mm Box of 100
SHSOPCM050035 M5 x 35mm Box of 100
SHSOPCM050040 M5 x 40mm Box of 100
SHSOPCM050045 M5 x 45mm Box of 100
SHSOPCM050050 M5 x 50mm Box of 100
SHSOPCM050055 M5 x 55mm Box of 100
SHSOPCM050060 M5 x 60mm Box of 100
SHSOPCM050065 M5 x 65mm Box of 100
SHSOPCM050070 M5 x 70mm Box of 100
SHSOPCM050075 M5 x 75mm Box of 100
SHSOPCM050080 M5 x 80mm Box of 100
SHSOPCM050085 M5 x 85mm Box of 100
SHSOPCM050090 M5 x 90mm Box of 100
SHSOPCM050100 M5 x 100mm Box of 50
SHSOPCM050120 M5 x 120mm Box of 50
SHSOPCM050130 M5 x 130mm Box of 25
SHSOPCM050140 M5 x 140mm Box of 25
SHSOPCM060008 M6 x 8mm Box of 100
SHSOPCM060010 M6 x 10mm Box of 100
SHSOPCM060012 M6 x 12mm Box of 100
SHSOPCM060016 M6 x 16mm Box of 100
SHSOPCM060020 M6 x 20mm Box of 100
SHSOPCM060025 M6 x 25mm Box of 100
SHSOPCM060030 M6 x 30mm Box of 100
SHSOPCM060035 M6 x 35mm Box of 100
SHSOPCM060040 M6 x 40mm Box of 100
SHSOPCM060045 M6 x 45mm Box of 100
SHSOPCM060050 M6 x 50mm Box of 100
SHSOPCM060055 M6 x 55mm Box of 100
SHSOPCM060060 M6 x 60mm Box of 100
SHSOPCM060065 M6 x 65mm Box of 100
SHSOPCM060070 M6 x 70mm Box of 100
SHSOPCM060075 M6 x 75mm Box of 100
SHSOPCM060080 M6 x 80mm Box of 100
SHSOPCM060090 M6 x 90mm Box of 100
SHSOPCM060100 M6 x 100mm Box of 100
SHSOPCM060110 M6 x 110mm Box of 100
SHSOPCM060120 M6 x 120mm Box of 100
SHSOPCM060130 M6 x 130mm Box of 50
SHSOPCM060140 M6 x 140mm Box of 50
SHSOPCM060150 M6 x 150mm Box of 50
SHSOPCM060160 M6 x 160mm Pack of 50
SHSOPCM060200 M6 x 200mm Pack of 100
SHSOPCM080010 M8 x 10mm Box of 100
SHSOPCM080012 M8 x 12mm Box of 100
SHSOPCM080016 M8 x 16mm Box of 100
SHSOPCM080020 M8 x 20mm Box of 100
SHSOPCM080025 M8 x 25mm Box of 100
SHSOPCM080030 M8 x 30mm Box of 100
SHSOPCM080035 M8 x 35mm Box of 100
SHSOPCM080040 M8 x 40mm Box of 100
SHSOPCM080045 M8 x 45mm Box of 100
SHSOPCM080050 M8 x 50mm Box of 100
SHSOPCM080055 M8 x 55mm Box of 100
SHSOPCM080060 M8 x 60mm Box of 100
SHSOPCM080065 M8 x 65mm Box of 100
SHSOPCM080070 M8 x 70mm Box of 100
SHSOPCM080075 M8 x 75mm Box of 100
SHSOPCM080080 M8 x 80mm Box of 100
SHSOPCM080090 M8 x 90mm Box of 100
SHSOPCM080100 M8 x 100mm Box of 100
SHSOPCM080110 M8 x 110mm Box of 100
SHSOPCM080120 M8 x 120mm Box of 100
SHSOPCM080130 M8 x 130mm Box of 100
SHSOPCM080140 M8 x 140mm Box of 50
SHSOPCM080150 M8 x 150mm Box of 50
SHSOPCM080160 M8 x 160mm Box of 50
SHSOPCM080180 M8 x 180mm Box of 50
SHSOPCM080200 M8 x 200mm Box of 50
SHSOPCM100010 M10 x 10mm Box of 100
SHSOPCM100012 M10 x 12mm Box of 100
SHSOPCM100016 M10 x 16mm Box of 100
SHSOPCM100020 M10 x 20mm Box of 100
SHSOPCM100025 M10 x 25mm Box of 100
SHSOPCM100030 M10 x 30mm Box of 100
SHSOPCM100035 M10 x 35mm Box of 100
SHSOPCM100040 M10 x 40mm Box of 100
SHSOPCM100045 M10 x 45mm Box of 50
SHSOPCM100050 M10 x 50mm Box of 50
SHSOPCM100055 M10 x 55mm Box of 50
SHSOPCM100060 M10 x 60mm Box of 50
SHSOPCM100065 M10 x 65mm Box of 50
SHSOPCM100070 M10 x 70mm Box of 50
SHSOPCM100075 M10 x 75mm Box of 50
SHSOPCM100080 M10 x 80mm Box of 50
SHSOPCM100090 M10 x 90mm Box of 50
SHSOPCM100100 M10 x 100mm Box of 50
SHSOPCM100110 M10 x 110mm Box of 50
SHSOPCM100120 M10 x 120mm Box of 50
SHSOPCM100130 M10 x 130mm Box of 50
SHSOPCM100140 M10 x 140mm Box of 50
SHSOPCM100150 M10 x 150mm Box of 50
SHSOPCM100160 M10 x 160mm Box of 25
SHSOPCM100170 M10 x 170mm Pack of 25
SHSOPCM100180 M10 x 180mm Box of 25
SHSOPCM100220 M10 x 220mm Box of 20
SHSOPCM120016 M12 x 16mm Box of 50
SHSOPCM120020 M12 x 20mm Box of 50
SHSOPCM120025 M12 x 25mm Box of 50
SHSOPCM120030 M12 x 30mm Box of 50
SHSOPCM120035 M12 x 35mm Box of 50
SHSOPCM120040 M12 x 40mm Box of 50
SHSOPCM120045 M12 x 45mm Box of 50
SHSOPCM120050 M12 x 50mm Box of 50
SHSOPCM120060 M12 x 60mm Box of 50
SHSOPCM120065 M12 x 65mm Box of 50
SHSOPCM120070 M12 x 70mm Box of 25
SHSOPCM120075 M12 x 75mm Box of 25
SHSOPCM120080 M12 x 80mm Box of 25
SHSOPCM120090 M12 x 90mm Box of 25
SHSOPCM120100 M12 x 100mm Box of 25
SHSOPCM120110 M12 x 110mm Box of 25
SHSOPCM120120 M12 x 120mm Box of 25
SHSOPCM120130 M12 x 130mm Box of 25
SHSOPCM120140 M12 x 140mm Box of 25
SHSOPCM120150 M12 x 150mm Box of 25
SHSOPCM120160 M12 x 160mm Box of 10
SHSOPCM120170 M12 x 170mm Box of 10
SHSOPCM120180 M12 x 180mm Box of 10
SHSOPCM120190 M12 x 190mm Box of 10
SHSOPCM120200 M12 x 200mm Box of 10
SHSOPCM120220 M12 x 220mm Box of 10
SHSOPCM120240 M12 x 240mm Box of 10
SHSOPCM120260 M12 x 260mm Box of 10
SHSOPCM140025 M14 x 25mm Box of 50
SHSOPCM140030 M14 x 30mm Box of 50
SHSOPCM140035 M14 x 35mm Box of 50
SHSOPCM140040 M14 x 40mm Box of 50
SHSOPCM140045 M14 x 45mm Box of 50
SHSOPCM140050 M14 x 50mm Box of 50
SHSOPCM140055 M14 x 55mm Box of 50
SHSOPCM140060 M14 x 60mm Box of 25
SHSOPCM140065 M14 x 65mm Box of 25
SHSOPCM140070 M14 x 70mm Box of 25
SHSOPCM140075 M14 x 75mm Box of 25
SHSOPCM140080 M14 x 80mm Box of 25
SHSOPCM140090 M14 x 90mm Box of 25
SHSOPCM140100 M14 x 100mm Box of 25
SHSOPCM140120 M14 x 120mm Box of 25
SHSOPCM140130 M14 x 130mm Box of 25
SHSOPCM140140 M14 x 140mm Box of 25
SHSOPCM140150 M14 x 150mm Pack of 25
SHSOPCM160025 M16 x 25mm Box of 25
SHSOPCM160030 M16 x 30mm Box of 25
SHSOPCM160035 M16 x 35mm Box of 25
SHSOPCM160040 M16 x 40mm Box of 25
SHSOPCM160045 M16 x 45mm Box of 25
SHSOPCM160050 M16 x 50mm Box of 25
SHSOPCM160055 M16 x 55mm Box of 25
SHSOPCM160060 M16 x 60mm Box of 25
SHSOPCM160065 M16 x 65mm Box of 25
SHSOPCM160070 M16 x 70mm Box of 25
SHSOPCM160075 M16 x 75mm Box of 25
SHSOPCM160080 M16 x 80mm Box of 25
SHSOPCM160090 M16 x 90mm Box of 25
SHSOPCM160100 M16 x 100mm Box of 25
SHSOPCM160110 M16 x 110mm Box of 25
SHSOPCM160120 M16 x 120mm Box of 25
SHSOPCM160140 M16 x 140mm Box of 10
SHSOPCM160150 M16 x 150mm Box of 10
SHSOPCM160160 M16 x 160mm Box of 10
SHSOPCM160170 M16 x 170mm Box of 10
SHSOPCM160180 M16 x 180mm Box of 10
SHSOPCM160200 M16 x 200mm Box of 10
SHSOPCM160280 M16 x 280mm Box of 10
SHSOPCM180050 M18 x 50mm Box of 25
SHSOPCM180060 M18 x 60mm Box of 25
SHSOPCM180070 M18 x 70mm Box of 25
SHSOPCM180080 M18 x 80mm Box of 25
SHSOPCM180090 M18 x 90mm Box of 25
SHSOPCM180100 M18 x 100mm Pack of 10
SHSOPCM180120 M18 x 120mm Pack of 25
SHSOPCM180140 M18 x 140mm Box of 10
SHSOPCM180160 M18 x 160mm Box of 10
SHSOPCM180180 M18 x 180mm Box of 10
SHSOPCM180200 M18 x 200mm Pack of 5
SHSOPCM200030 M20 x 30mm Box of 25
SHSOPCM200035 M20 x 35mm Box of 25
SHSOPCM200040 M20 x 40mm Box of 25
SHSOPCM200045 M20 x 45mm Box of 25
SHSOPCM200050 M20 x 50mm Box of 25
SHSOPCM200055 M20 x 55mm Box of 25
SHSOPCM200060 M20 x 60mm Box of 25
SHSOPCM200065 M20 x 65mm Box of 25
SHSOPCM200070 M20 x 70mm Box of 25
SHSOPCM200075 M20 x 75mm Box of 25
SHSOPCM200080 M20 x 80mm Box of 25
SHSOPCM200090 M20 x 90mm Box of 25
SHSOPCM200100 M20 x 100mm Box of 25
SHSOPCM200110 M20 x 110mm Box of 25
SHSOPCM200120 M20 x 120mm Box of 10
SHSOPCM200130 M20 x 130mm Box of 10
SHSOPCM200140 M20 x 140mm Box of 10
SHSOPCM200150 M20 x 150mm Box of 10
SHSOPCM200160 M20 x 160mm Box of 10
SHSOPCM200180 M20 x 180mm Box of 10
SHSOPCM200200 M20 x 200mm Pack of 10
SHSOPCM200220 M20 x 220mm Box of 5
SHSOPCM200240 M20 x 240mm Box of 5
SHSOPCM200260 M20 x 260mm Box of 5
SHSOPCM200280 M20 x 280mm Box of 5
SHSOPCM200300 M20 x 300mm Box of 5
SHSOPCM220050 M22 x 50mm Pack of 5
SHSOPCM220055 M22 x 55mm Pack of 10
SHSOPCM220060 M22 x 60mm Pack of 5

Selecting the right option

Choose the thread form first: the screw must match its nut or tapped hole in thread form, diameter and pitch. Metric sizes are the nominal diameter in millimetres; compare the pitch in the table with your thread. By convention the length of a socket head cap or button head screw is measured from under the head; the supplier file does not state the measuring point. Check the key size against the screw in hand, as the supplier file does not state it. For a different class or finish see the related pages.

Related products

Related socket screws: Hobson Metric Socket Head Cap Screw, Grade 12.9 Alloy Steel, Zinc, M3 to M24, Hobson Metric Socket Head Cap Screw, Grade 12.9, Plain, M22 to M36, Hobson Metric Fine Socket Head Cap Screw, Class 12.9, Zinc Plated, M10 and M12 and Hobson Metric Socket Head Cap Screw, Natural Nylon, M3 to M12.
Product Highlights −

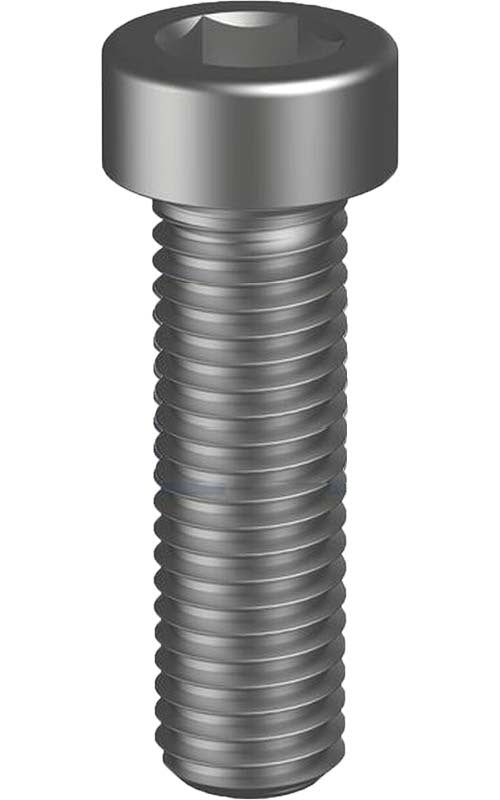

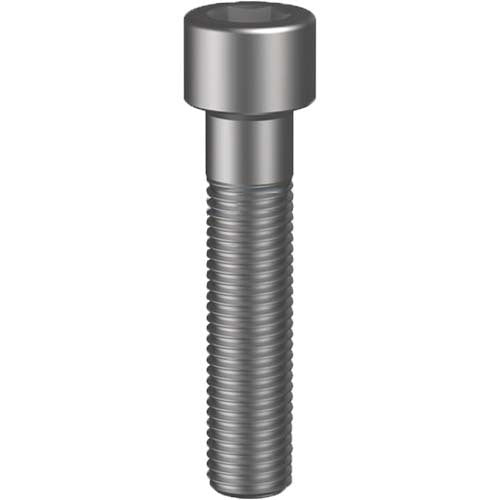

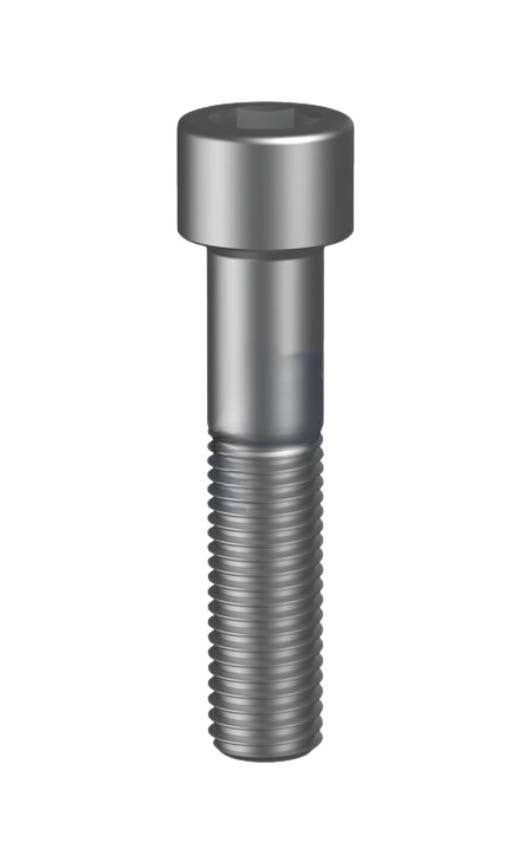

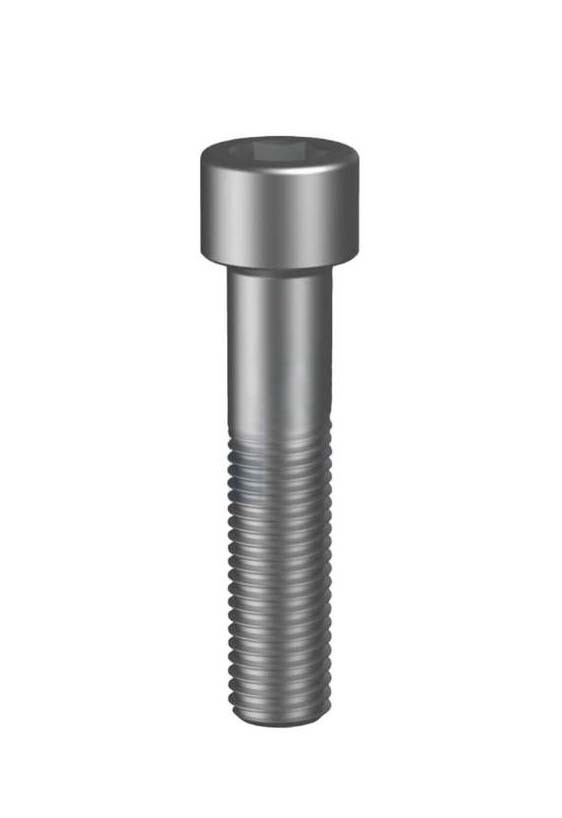

The Hobson metric socket head cap screw on this page has a metric thread and is alloy steel, plain finish, grade 12.9. This page lists 250 items: M2 to M22, in lengths from 6mm to 300mm.

The Hobson acronym list names this head style: SHCS, Socket Head Cap Screw (manufacturer-stated).

The head carries a socket, so the screw is driven with a key or bit instead of a spanner.

The supplier names this item G12.9. The Hobson guide lists class 12.9 as alloy steel, quenched and tempered, for metric sizes M6 to M48 (the guide says class where the supplier says grade) (manufacturer-stated).

Strength figures are shown for sizes M6 and above only; the Hobson table does not cover the smaller sizes, so none is published for them.

The pitch shown for each size is the coarse pitch given in the Hobson thread table (manufacturer-stated).

Pack quantity is shown for each item in the table. It changes with the size and length.

The supplier file does not give the socket (key) size, head dimensions or thread length for these screws, so none are published. Check the key size against a screw in hand.

Resources

Payment & Security
  • Apple Pay
  • Google Pay
  • American Express
  • Mastercard
  • Visa
  • PayPal
  • Union Pay

Secure Checkout. We do not store credit card details

Available Options:
  • M2 / 6 mmmm socket
    Model Number: SHSOPCM020006
  • M2 / 8 mmmm socket
    Model Number: SHSOPCM020008
  • M2 / 10 mmmm socket
    Model Number: SHSOPCM020010
  • M2 / 12 mmmm socket
    Model Number: SHSOPCM020012
  • M2.5 / 6 mmmm socket
    Model Number: SHSOPCM0250006
  • M2.5 / 8 mmmm socket
    Model Number: SHSOPCM0250008
  • M2.5 / 10 mmmm socket
    Model Number: SHSOPCM0250010
  • M2.5 / 12 mmmm socket
    Model Number: SHSOPCM0250012
  • M2.5 / 16 mmmm socket
    Model Number: SHSOPCM0250016
  • M3 / 6 mmmm socket
    Model Number: SHSOPCM030006
  • M3 / 8 mmmm socket
    Model Number: SHSOPCM030008
  • M3 / 10 mmmm socket
    Model Number: SHSOPCM030010
  • M3 / 12 mmmm socket
    Model Number: SHSOPCM030012
  • M3 / 16 mmmm socket
    Model Number: SHSOPCM030016
  • M3 / 20 mmmm socket
    Model Number: SHSOPCM030020
  • M3 / 25 mmmm socket
    Model Number: SHSOPCM030025
  • M3 / 30 mmmm socket
    Model Number: SHSOPCM030030
  • M3 / 35 mmmm socket
    Model Number: SHSOPCM030035
  • M3 / 40 mmmm socket
    Model Number: SHSOPCM030040
  • M3 / 45 mmmm socket
    Model Number: SHSOPCM030045
  • M3 / 50 mmmm socket
    Model Number: SHSOPCM030050
  • M4 / 6 mmmm socket
    Model Number: SHSOPCM040006
  • M4 / 8 mmmm socket
    Model Number: SHSOPCM040008
  • M4 / 10 mmmm socket
    Model Number: SHSOPCM040010
  • M4 / 12 mmmm socket
    Model Number: SHSOPCM040012
  • M4 / 16 mmmm socket
    Model Number: SHSOPCM040016
  • M4 / 20 mmmm socket
    Model Number: SHSOPCM040020
  • M4 / 25 mmmm socket
    Model Number: SHSOPCM040025
  • M4 / 30 mmmm socket
    Model Number: SHSOPCM040030
  • M4 / 35 mmmm socket
    Model Number: SHSOPCM040035
  • M4 / 40 mmmm socket
    Model Number: SHSOPCM040040
  • M4 / 45 mmmm socket
    Model Number: SHSOPCM040045
  • M4 / 50 mmmm socket
    Model Number: SHSOPCM040050
  • M4 / 55 mmmm socket
    Model Number: SHSOPCM040055
  • M4 / 60 mmmm socket
    Model Number: SHSOPCM040060
  • M4 / 65 mmmm socket
    Model Number: SHSOPCM040065
  • M4 / 80 mmmm socket
    Model Number: SHSOPCM040080
  • M4 / 90 mmmm socket
    Model Number: SHSOPCM040090
  • M5 / 6 mmmm socket
    Model Number: SHSOPCM050006
  • M5 / 8 mmmm socket
    Model Number: SHSOPCM050008
  • M5 / 10 mmmm socket
    Model Number: SHSOPCM050010
  • M5 / 12 mmmm socket
    Model Number: SHSOPCM050012
  • M5 / 16 mmmm socket
    Model Number: SHSOPCM050016
  • M5 / 20 mmmm socket
    Model Number: SHSOPCM050020
  • M5 / 25 mmmm socket
    Model Number: SHSOPCM050025
  • M5 / 30 mmmm socket
    Model Number: SHSOPCM050030
  • M5 / 35 mmmm socket
    Model Number: SHSOPCM050035
  • M5 / 40 mmmm socket
    Model Number: SHSOPCM050040
  • M5 / 45 mmmm socket
    Model Number: SHSOPCM050045
  • M5 / 50 mmmm socket
    Model Number: SHSOPCM050050
  • M5 / 55 mmmm socket
    Model Number: SHSOPCM050055
  • M5 / 60 mmmm socket
    Model Number: SHSOPCM050060
  • M5 / 65 mmmm socket
    Model Number: SHSOPCM050065
  • M5 / 70 mmmm socket
    Model Number: SHSOPCM050070
  • M5 / 75 mmmm socket
    Model Number: SHSOPCM050075
  • M5 / 80 mmmm socket
    Model Number: SHSOPCM050080
  • M5 / 85 mmmm socket
    Model Number: SHSOPCM050085
  • M5 / 90 mmmm socket
    Model Number: SHSOPCM050090
  • M5 / 100 mmmm socket
    Model Number: SHSOPCM050100
  • M5 / 120 mmmm socket
    Model Number: SHSOPCM050120
  • M5 / 130 mmmm socket
    Model Number: SHSOPCM050130
  • M5 / 140 mmmm socket
    Model Number: SHSOPCM050140
  • M6 / 8 mmmm socket
    Model Number: SHSOPCM060008
  • M6 / 10 mmmm socket
    Model Number: SHSOPCM060010
  • M6 / 12 mmmm socket
    Model Number: SHSOPCM060012
  • M6 / 16 mmmm socket
    Model Number: SHSOPCM060016
  • M6 / 20 mmmm socket
    Model Number: SHSOPCM060020
  • M6 / 25 mmmm socket
    Model Number: SHSOPCM060025
  • M6 / 30 mmmm socket
    Model Number: SHSOPCM060030
  • M6 / 35 mmmm socket
    Model Number: SHSOPCM060035
  • M6 / 40 mmmm socket
    Model Number: SHSOPCM060040
  • M6 / 45 mmmm socket
    Model Number: SHSOPCM060045
  • M6 / 50 mmmm socket
    Model Number: SHSOPCM060050
  • M6 / 55 mmmm socket
    Model Number: SHSOPCM060055
  • M6 / 60 mmmm socket
    Model Number: SHSOPCM060060
  • M6 / 65 mmmm socket
    Model Number: SHSOPCM060065
  • M6 / 70 mmmm socket
    Model Number: SHSOPCM060070
  • M6 / 75 mmmm socket
    Model Number: SHSOPCM060075
  • M6 / 80 mmmm socket
    Model Number: SHSOPCM060080
  • M6 / 90 mmmm socket
    Model Number: SHSOPCM060090
  • M6 / 100 mmmm socket
    Model Number: SHSOPCM060100
  • M6 / 110 mmmm socket
    Model Number: SHSOPCM060110
  • M6 / 120 mmmm socket
    Model Number: SHSOPCM060120
  • M6 / 130 mmmm socket
    Model Number: SHSOPCM060130
  • M6 / 140 mmmm socket
    Model Number: SHSOPCM060140
  • M6 / 150 mmmm socket
    Model Number: SHSOPCM060150
  • M6 / 160 mmmm socket
    Model Number: SHSOPCM060160
  • M6 / 200 mmmm socket
    Model Number: SHSOPCM060200
  • M8 / 10 mmmm socket
    Model Number: SHSOPCM080010
  • M8 / 12 mmmm socket
    Model Number: SHSOPCM080012
  • M8 / 16 mmmm socket
    Model Number: SHSOPCM080016
  • M8 / 20 mmmm socket
    Model Number: SHSOPCM080020
  • M8 / 25 mmmm socket
    Model Number: SHSOPCM080025
  • M8 / 30 mmmm socket
    Model Number: SHSOPCM080030
  • M8 / 35 mmmm socket
    Model Number: SHSOPCM080035
  • M8 / 40 mmmm socket
    Model Number: SHSOPCM080040
  • M8 / 45 mmmm socket
    Model Number: SHSOPCM080045
  • M8 / 50 mmmm socket
    Model Number: SHSOPCM080050
  • M8 / 55 mmmm socket
    Model Number: SHSOPCM080055
  • M8 / 60 mmmm socket
    Model Number: SHSOPCM080060
  • M8 / 65 mmmm socket
    Model Number: SHSOPCM080065
  • M8 / 70 mmmm socket
    Model Number: SHSOPCM080070
  • M8 / 75 mmmm socket
    Model Number: SHSOPCM080075
  • M8 / 80 mmmm socket
    Model Number: SHSOPCM080080
  • M8 / 90 mmmm socket
    Model Number: SHSOPCM080090
  • M8 / 100 mmmm socket
    Model Number: SHSOPCM080100
  • M8 / 110 mmmm socket
    Model Number: SHSOPCM080110
  • M8 / 120 mmmm socket
    Model Number: SHSOPCM080120
  • M8 / 130 mmmm socket
    Model Number: SHSOPCM080130
  • M8 / 140 mmmm socket
    Model Number: SHSOPCM080140
  • M8 / 150 mmmm socket
    Model Number: SHSOPCM080150
  • M8 / 160 mmmm socket
    Model Number: SHSOPCM080160
  • M8 / 180 mmmm socket
    Model Number: SHSOPCM080180
  • M8 / 200 mmmm socket
    Model Number: SHSOPCM080200
  • M10 / 10 mmmm socket
    Model Number: SHSOPCM100010
  • M10 / 12 mmmm socket
    Model Number: SHSOPCM100012
  • M10 / 16 mmmm socket
    Model Number: SHSOPCM100016
  • M10 / 20 mmmm socket
    Model Number: SHSOPCM100020
  • M10 / 25 mmmm socket
    Model Number: SHSOPCM100025
  • M10 / 30 mmmm socket
    Model Number: SHSOPCM100030
  • M10 / 35 mmmm socket
    Model Number: SHSOPCM100035
  • M10 / 40 mmmm socket
    Model Number: SHSOPCM100040
  • M10 / 45 mmmm socket
    Model Number: SHSOPCM100045
  • M10 / 50 mmmm socket
    Model Number: SHSOPCM100050
  • M10 / 55 mmmm socket
    Model Number: SHSOPCM100055
  • M10 / 60 mmmm socket
    Model Number: SHSOPCM100060
  • M10 / 65 mmmm socket
    Model Number: SHSOPCM100065
  • M10 / 70 mmmm socket
    Model Number: SHSOPCM100070
  • M10 / 75 mmmm socket
    Model Number: SHSOPCM100075
  • M10 / 80 mmmm socket
    Model Number: SHSOPCM100080
  • M10 / 90 mmmm socket
    Model Number: SHSOPCM100090
  • M10 / 100 mmmm socket
    Model Number: SHSOPCM100100
  • M10 / 110 mmmm socket
    Model Number: SHSOPCM100110
  • M10 / 120 mmmm socket
    Model Number: SHSOPCM100120
  • M10 / 130 mmmm socket
    Model Number: SHSOPCM100130
  • M10 / 140 mmmm socket
    Model Number: SHSOPCM100140
  • M10 / 150 mmmm socket
    Model Number: SHSOPCM100150
  • M10 / 160 mmmm socket
    Model Number: SHSOPCM100160
  • M10 / 170 mmmm socket
    Model Number: SHSOPCM100170
  • M10 / 180 mmmm socket
    Model Number: SHSOPCM100180
  • M10 / 220 mmmm socket
    Model Number: SHSOPCM100220
  • M12 / 16 mmmm socket
    Model Number: SHSOPCM120016
  • M12 / 20 mmmm socket
    Model Number: SHSOPCM120020
  • M12 / 25 mmmm socket
    Model Number: SHSOPCM120025
  • M12 / 30 mmmm socket
    Model Number: SHSOPCM120030
  • M12 / 35 mmmm socket
    Model Number: SHSOPCM120035
  • M12 / 40 mmmm socket
    Model Number: SHSOPCM120040
  • M12 / 45 mmmm socket
    Model Number: SHSOPCM120045
  • M12 / 50 mmmm socket
    Model Number: SHSOPCM120050
  • M12 / 60 mmmm socket
    Model Number: SHSOPCM120060
  • M12 / 65 mmmm socket
    Model Number: SHSOPCM120065
  • M12 / 70 mmmm socket
    Model Number: SHSOPCM120070
  • M12 / 75 mmmm socket
    Model Number: SHSOPCM120075
  • M12 / 80 mmmm socket
    Model Number: SHSOPCM120080
  • M12 / 90 mmmm socket
    Model Number: SHSOPCM120090
  • M12 / 100 mmmm socket
    Model Number: SHSOPCM120100
  • M12 / 110 mmmm socket
    Model Number: SHSOPCM120110
  • M12 / 120 mmmm socket
    Model Number: SHSOPCM120120
  • M12 / 130 mmmm socket
    Model Number: SHSOPCM120130
  • M12 / 140 mmmm socket
    Model Number: SHSOPCM120140
  • M12 / 150 mmmm socket
    Model Number: SHSOPCM120150
  • M12 / 160 mmmm socket
    Model Number: SHSOPCM120160
  • M12 / 170 mmmm socket
    Model Number: SHSOPCM120170
  • M12 / 180 mmmm socket
    Model Number: SHSOPCM120180
  • M12 / 190 mmmm socket
    Model Number: SHSOPCM120190
  • M12 / 200 mmmm socket
    Model Number: SHSOPCM120200
  • M12 / 220 mmmm socket
    Model Number: SHSOPCM120220
  • M12 / 240 mmmm socket
    Model Number: SHSOPCM120240
  • M12 / 260 mmmm socket
    Model Number: SHSOPCM120260
  • M14 / 25 mmmm socket
    Model Number: SHSOPCM140025
  • M14 / 30 mmmm socket
    Model Number: SHSOPCM140030
  • M14 / 35 mmmm socket
    Model Number: SHSOPCM140035
  • M14 / 40 mmmm socket
    Model Number: SHSOPCM140040
  • M14 / 45 mmmm socket
    Model Number: SHSOPCM140045
  • M14 / 50 mmmm socket
    Model Number: SHSOPCM140050
  • M14 / 55 mmmm socket
    Model Number: SHSOPCM140055
  • M14 / 60 mmmm socket
    Model Number: SHSOPCM140060
  • M14 / 65 mmmm socket
    Model Number: SHSOPCM140065
  • M14 / 70 mmmm socket
    Model Number: SHSOPCM140070
  • M14 / 75 mmmm socket
    Model Number: SHSOPCM140075
  • M14 / 80 mmmm socket
    Model Number: SHSOPCM140080
  • M14 / 90 mmmm socket
    Model Number: SHSOPCM140090
  • M14 / 100 mmmm socket
    Model Number: SHSOPCM140100
  • M14 / 120 mmmm socket
    Model Number: SHSOPCM140120
  • M14 / 130 mmmm socket
    Model Number: SHSOPCM140130
  • M14 / 140 mmmm socket
    Model Number: SHSOPCM140140
  • M14 / 150 mmmm socket
    Model Number: SHSOPCM140150
  • M16 / 25 mmmm socket
    Model Number: SHSOPCM160025
  • M16 / 30 mmmm socket
    Model Number: SHSOPCM160030
  • M16 / 35 mmmm socket
    Model Number: SHSOPCM160035
  • M16 / 40 mmmm socket
    Model Number: SHSOPCM160040
  • M16 / 45 mmmm socket
    Model Number: SHSOPCM160045
  • M16 / 50 mmmm socket
    Model Number: SHSOPCM160050
  • M16 / 55 mmmm socket
    Model Number: SHSOPCM160055
  • M16 / 60 mmmm socket
    Model Number: SHSOPCM160060
  • M16 / 65 mmmm socket
    Model Number: SHSOPCM160065
  • M16 / 70 mmmm socket
    Model Number: SHSOPCM160070
  • M16 / 75 mmmm socket
    Model Number: SHSOPCM160075
  • M16 / 80 mmmm socket
    Model Number: SHSOPCM160080
  • M16 / 90 mmmm socket
    Model Number: SHSOPCM160090
  • M16 / 100 mmmm socket
    Model Number: SHSOPCM160100
  • M16 / 110 mmmm socket
    Model Number: SHSOPCM160110
  • M16 / 120 mmmm socket
    Model Number: SHSOPCM160120
  • M16 / 140 mmmm socket
    Model Number: SHSOPCM160140
  • M16 / 150 mmmm socket
    Model Number: SHSOPCM160150
  • M16 / 160 mmmm socket
    Model Number: SHSOPCM160160
  • M16 / 170 mmmm socket
    Model Number: SHSOPCM160170
  • M16 / 180 mmmm socket
    Model Number: SHSOPCM160180
  • M16 / 200 mmmm socket
    Model Number: SHSOPCM160200
  • M16 / 280 mmmm socket
    Model Number: SHSOPCM160280
  • M18 / 50 mmmm socket
    Model Number: SHSOPCM180050
  • M18 / 60 mmmm socket
    Model Number: SHSOPCM180060
  • M18 / 70 mmmm socket
    Model Number: SHSOPCM180070
  • M18 / 80 mmmm socket
    Model Number: SHSOPCM180080
  • M18 / 90 mmmm socket
    Model Number: SHSOPCM180090
  • M18 / 100 mmmm socket
    Model Number: SHSOPCM180100
  • M18 / 120 mmmm socket
    Model Number: SHSOPCM180120
  • M18 / 140 mmmm socket
    Model Number: SHSOPCM180140
  • M18 / 160 mmmm socket
    Model Number: SHSOPCM180160
  • M18 / 180 mmmm socket
    Model Number: SHSOPCM180180
  • M18 / 200 mmmm socket
    Model Number: SHSOPCM180200
  • M20 / 30 mmmm socket
    Model Number: SHSOPCM200030
  • M20 / 35 mmmm socket
    Model Number: SHSOPCM200035
  • M20 / 40 mmmm socket
    Model Number: SHSOPCM200040
  • M20 / 45 mmmm socket
    Model Number: SHSOPCM200045
  • M20 / 50 mmmm socket
    Model Number: SHSOPCM200050
  • M20 / 55 mmmm socket
    Model Number: SHSOPCM200055
  • M20 / 60 mmmm socket
    Model Number: SHSOPCM200060
  • M20 / 65 mmmm socket
    Model Number: SHSOPCM200065
  • M20 / 70 mmmm socket
    Model Number: SHSOPCM200070
  • M20 / 75 mmmm socket
    Model Number: SHSOPCM200075
  • M20 / 80 mmmm socket
    Model Number: SHSOPCM200080
  • M20 / 90 mmmm socket
    Model Number: SHSOPCM200090
  • M20 / 100 mmmm socket
    Model Number: SHSOPCM200100
  • M20 / 110 mmmm socket
    Model Number: SHSOPCM200110
  • M20 / 120 mmmm socket
    Model Number: SHSOPCM200120
  • M20 / 130 mmmm socket
    Model Number: SHSOPCM200130
  • M20 / 140 mmmm socket
    Model Number: SHSOPCM200140
  • M20 / 150 mmmm socket
    Model Number: SHSOPCM200150
  • M20 / 160 mmmm socket
    Model Number: SHSOPCM200160
  • M20 / 180 mmmm socket
    Model Number: SHSOPCM200180
  • M20 / 200 mmmm socket
    Model Number: SHSOPCM200200
  • M20 / 220 mmmm socket
    Model Number: SHSOPCM200220
  • M20 / 240 mmmm socket
    Model Number: SHSOPCM200240
  • M20 / 260 mmmm socket
    Model Number: SHSOPCM200260
  • M20 / 280 mmmm socket
    Model Number: SHSOPCM200280
  • M20 / 300 mmmm socket
    Model Number: SHSOPCM200300
  • M22 / 50 mmmm socket
    Model Number: SHSOPCM220050
  • M22 / 55 mmmm socket
    Model Number: SHSOPCM220055
  • M22 / 60 mmmm socket
    Model Number: SHSOPCM220060
Aims white logo

Industrial Supplies Made Simple!

About AIMS

Shop

Contact Details

Milperra NSW 2214, Australia
+61297730122
8:00am - 5:00pm, Mon to Fri

© 2026 AIMS Industrial Supplies.

Home Cart Products
Quote Cart
+ Add more products Submit Quote Request
