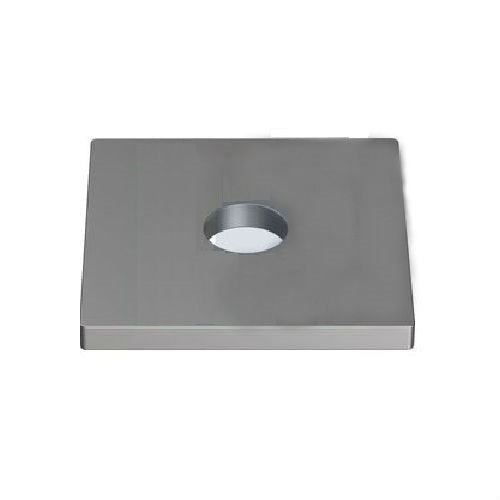

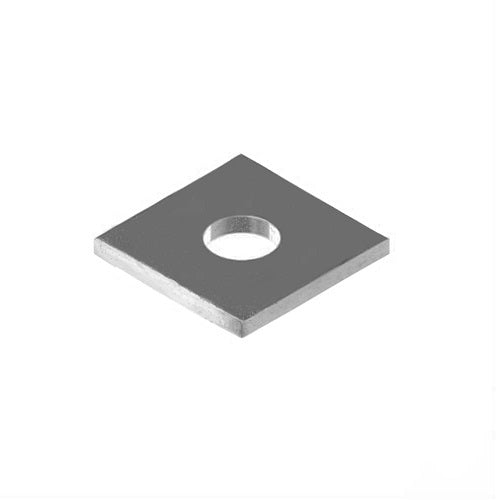

Hobson Metric Square Washer, M12 x 50mm x 3mm

The Hobson metric square washer comes in 5 sizes (mild steel, hot dip galvanised): M12, M16 and M20. A square washer spreads the load of a nut or bolt head over a larger square area than a round washer of the same bolt size.

Where this product is used

• Under bolt heads or nuts on timber, spreading the load over a larger area so the washer does not pull into the wood
• Bolting timber to steel brackets, with the square plate on the timber face
• Cup head and hex bolts through posts, where a round washer would be too small
• Outdoor and long-term exposure, including structural steelwork, roofing and fencing

Features

• 5 items: M12, M16 and M20
• Mild steel, hot dip galvanised
• Dimensions shown
• Pack quantity shown for each item
• Hot dip galvanised finish, for outdoor and weather-exposed work
• Material: mild steel

Key specifications

Choosing the right option

Hot dip galvanising is a zinc coating that is thicker than zinc plating. For a similar washer in another material, finish or size range see Hobson Metric Square Washer, Hot Dip Galvanised, 60 x 4mm, M16 to M30 and Hobson Metric Square Washer, Mild Steel, Hot Dip Galvanised, M8 to M36, 38 to 100mm Side.

These hot dip galvanised square washers carry a thick zinc coating that suits weather-exposed work such as fencing, roofing and structural steel. Close to the sea, within about 1 km, or in splash zones, 316 stainless is generally the better choice.

Square washers spread a bolt load over a larger plate, which is why they are used on timber. The listed dimensions give the bolt size, the side of the square and the thickness.
