Hobson Metric Thread Slotted Cheese Screw, M2.5 / 5
The price shown is for the pack.
Available

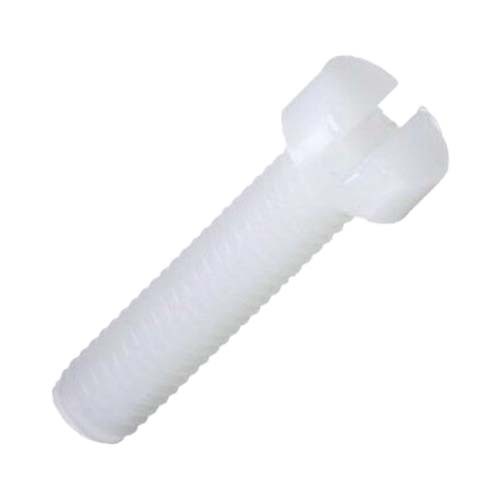

The Hobson metric thread slotted cheese screw range has 57 items in sizes M2.5 to M10 and lengths 5 to 80mm (cheese head, slotted drive, natural nylon).
Where this product is used
- Fitting into a tapped hole or with a nut of the same thread
- Where a plastic screw is wanted instead of a metal one
- Replacing a nylon screw of the same size, length and head style
Features
- 57 items: sizes M2.5 to M10, lengths 5 to 80mm
- Cheese head, slotted drive, natural nylon
- Thread pitch for each size
- Sizes: M2.5 to M10
Key specifications
| Specification | Detail |
|---|---|
| Brand | Hobson |
| Sizes | M2.5 to M10 |
| Lengths | 5 to 80mm |
| Head | Cheese |
| Drive | Slotted |
| Material | Natural nylon |
Choosing the right option
Nylon is a plastic, so avoid over-tightening. A cheese head is a cylindrical head with a flat top.
Related screws: Hobson Metric Thread Slotted Countersunk Screw, Nylon, M3 to M12, 6 to 65mm, Hobson Metric Thread Wing Screw, Natural Nylon, M5 and M6, 10 to 30mm and Hobson UNC Fillister Slotted Machine Screw, Natural Nylon, No. 10 and 1/4", 3/8" to 2".
| Option | Part number | SKU |
|---|---|---|
| M2.5 / 5 | MS66ESM0250005 | A0138605 |
| M2.5 / 8 | MS66ESM0250008 | A0138606 |
| M2.5 / 10 | MS66ESM0250010 | A0138607 |
| M2.5 / 12 | MS66ESM0250012 | A0138608 |
| M2.5 / 16 | MS66ESM0250016 | A0138609 |
| M3 / 6 | MS66ESM030006 | A0138612 |
| M3 / 8 | MS66ESM030008 | A0138613 |
| M3 / 10 | MS66ESM030010 | A0138614 |
| M3 / 12 | MS66ESM030012 | A0138615 |
| M3 / 16 | MS66ESM030016 | A0138616 |
| M3 / 20 | MS66ESM030020 | A0138617 |
| M3 / 25 | MS66ESM030025 | A0138618 |
| M3 / 35 | MS66ESM030035 | A0138619 |
| M4 / 6 | MS66ESM040006 | A0138620 |
| M4 / 8 | MS66ESM040008 | A0138621 |
| M4 / 10 | MS66ESM040010 | A0138622 |
| M4 / 12 | MS66ESM040012 | A0138623 |
| M4 / 16 | MS66ESM040016 | A0138624 |
| M4 / 20 | MS66ESM040020 | A0138625 |
| M4 / 25 | MS66ESM040025 | A0138626 |
| M4 / 30 | MS66ESM040030 | A0138627 |
| M4 / 40 | MS66ESM040040 | A0138628 |
| M4 / 50 | MS66ESM040050 | A0138629 |
| M5 / 10 | MS66ESM050010 | A0138630 |
| M5 / 12 | MS66ESM050012 | A0138631 |
| M5 / 16 | MS66ESM050016 | A0138632 |
| M5 / 20 | MS66ESM050020 | A0138633 |
| M5 / 25 | MS66ESM050025 | A0138634 |
| M5 / 30 | MS66ESM050030 | A0138635 |
| M5 / 40 | MS66ESM050040 | A0138636 |
| M5 / 50 | MS66ESM050050 | A0138637 |
| M5 / 60 | MS66ESM050060 | A0138638 |
| M5 / 70 | MS66ESM050070 | A0138639 |
| M6 / 10 | MS66ESM060010 | A0138640 |
| M6 / 12 | MS66ESM060012 | A0138641 |
| M6 / 16 | MS66ESM060016 | A0138642 |
| M6 / 20 | MS66ESM060020 | A0138643 |
| M6 / 25 | MS66ESM060025 | A0138644 |
| M6 / 30 | MS66ESM060030 | A0138645 |
| M6 / 35 | MS66ESM060035 | A0138646 |
| M6 / 40 | MS66ESM060040 | A0138647 |
| M6 / 50 | MS66ESM060050 | A0138648 |
| M6 / 60 | MS66ESM060060 | A0138649 |
| M6 / 70 | MS66ESM060070 | A0138650 |
| M8 / 12 | MS66ESM080012 | A0138651 |
| M8 / 16 | MS66ESM080016 | A0138652 |
| M8 / 20 | MS66ESM080020 | A0138653 |
| M8 / 25 | MS66ESM080025 | A0138654 |
| M8 / 30 | MS66ESM080030 | A0138655 |
| M8 / 35 | MS66ESM080035 | A0138656 |
| M8 / 40 | MS66ESM080040 | A0138657 |
| M8 / 50 | MS66ESM080050 | A0138658 |
| M8 / 60 | MS66ESM080060 | A0138659 |
| M8 / 70 | MS66ESM080070 | A0138660 |
| M8 / 80 | MS66ESM080080 | A0138661 |
| M10 / 30 | MS66ESM100030 | A0138662 |
| M10 / 35 | MS66ESM100035 | A0138663 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Hobson Metric Thread Slotted Cheese Screw, Natural Nylon, M2.5 to M10, 5 to 80mm: M2.5 / 5
SKU: A0138605 | Model: MS66ESM0250005
Hobson MS66ESM0250005: M2.5 x 5mm metric thread slotted cheese screw, natural nylon. Pack of 100. Pitch 0.45mm.
