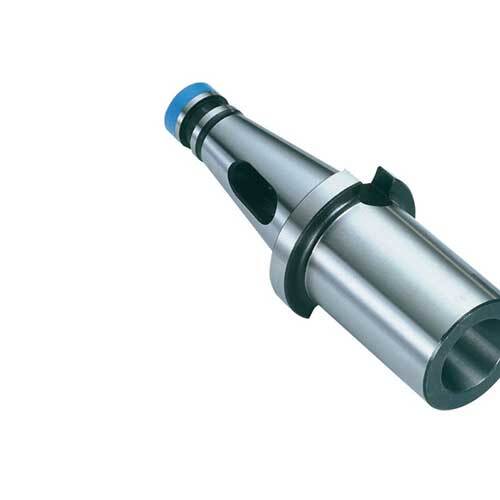

Maxigear Milling Machine Adaptor SY82900 to SY82903, 118

Maxigear milling machine adaptors are available in four part numbers: SY82900 (NT30 x MT2), SY82901 (NT30 x MT3), SY82902 (NT40 x MT2) and SY82903 (NT40 x MT3).

Each part number has its own drawbar thread and overall length: M12 x 1.75 on the NT30 adaptors and M16 x 2.0 on the NT40 adaptors, 118mm to 142mm overall.

Where this product is used

• Permitting the use of Morse taper shank tools in machines with NT (ISO) tapers

Features

• Permits the use of Morse taper shank tools in machines with NT (ISO) tapers
• NT30 or NT40 with MT2 or MT3, by part number
• Drawbar thread and overall length for each part number
• Type: Milling machine adaptor

Key specifications

Choosing the right option

Choose by the machine taper (NT30 or NT40) and the Morse taper of your tooling (MT2 or MT3). SY82900 and SY82901 are NT30 with an M12 x 1.75 drawbar thread (124mm and 142mm); SY82902 and SY82903 are NT40 with an M16 x 2.0 drawbar thread (118mm and 140mm).
