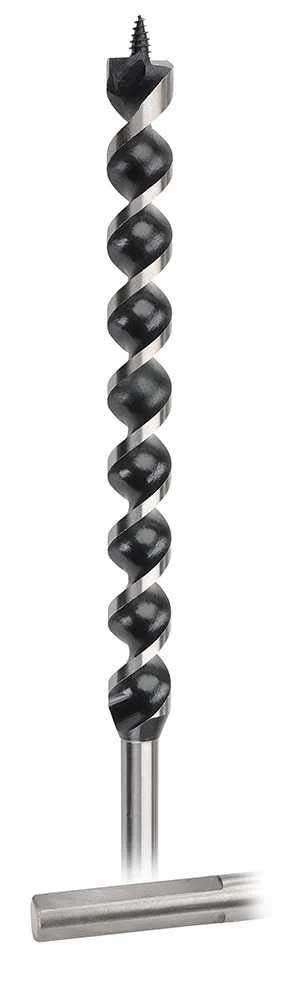

Morris 28mm x 600mm Extra Long Hardwood Auger Bit
Out of stock
Morris extra long hardwood auger bits drill deep holes in Australian soft and hard woods. They are Scotch pattern, two flute bits in diameters from 10mm to 32mm and lengths from 600mm to 1200mm. Tradespeople, installers and DIY users use them when a standard auger is too short.
The wide flutes clear chips quickly, and the heavy duty worm point pulls the bit into the timber. The bit is unlikely to wander because of grain or knots. It has a hardened cutting edge and can be resharpened. The shank has three flats so it will not slip in the chuck, and it suits power, petrol and battery drills with a 13mm Jacobs style chuck. These are the 600mm to 1200mm lengths. For 1400mm to 2200mm, choose the Morris Extra Long Hardwood Auger Drill Bit (1400 - 2200mm). The length shown is the overall length of the whole bit, shank included.
Where this product is used
- Drilling deep holes in Australian hardwoods and softwoods
- Holes through timber with knots or uneven grain, where the bit is unlikely to wander
- Jobs that need more reach than a standard auger, from 600mm to 1200mm overall
Features
- Scotch pattern auger with two flutes, for Australian soft and hard woods
- Overall lengths from 600mm to 1200mm in diameters from 10mm to 32mm
- Wide flutes clear chips quickly
- Heavy duty worm point that resists breakage
- Unlikely to wander because of grain or knots in the timber
- Hardened cutting edge for long life in hard timber
- Fully-forged bit with a heavy duty milled flute design
- Resharpenable
- Shank of 10mm on 10, 11 and 12mm bits and 12mm on larger bits, with three flats to stop slipping
- Suits power, petrol and battery drills with a 13mm Jacobs style chuck
Key specifications
| Specification | Detail |
|---|---|
| Brand | Morris |
| Range | Extra long hardwood auger |
| Type | Scotch pattern, two flute auger bit |
| Diameters | 10mm to 32mm |
| Overall length | 600mm to 1200mm |
| Shank | 10mm on 10, 11 and 12mm bits, 12mm on larger bits |
| Shank fitment | 3 flats |
| Point | Heavy duty worm point |
| Resharpenable | Yes |
| Suits drills with | 13mm Jacobs style chuck (power, petrol and battery) |
Supplied with
- The auger bit only, in the diameter and length you select
Choosing the right option
| Option | Part number | SKU |
|---|---|---|
| 10 / 600 | 2800-EAHW10600 | A0206302 |
| 10 / 800 | 2800-EAHW10800 | A0206312 |
| 10 / 1000 | 2800-EAHW101000 | A0206323 |
| 10 / 1100 | 2800-EAHW101100 | A0206334 |
| 10 / 1200 | 2800-EAHW101200 | A0206344 |
| 11 / 600 | 2800-EAHW11600 | A0206303 |
| 11 / 800 | 2800-EAHW11800 | A0206313 |
| 11 / 1000 | 2800-EAHW111000 | A0206324 |
| 11 / 1100 | 2800-EAHW111100 | A0206335 |
| 11 / 1200 | 2800-EAHW111200 | A0206345 |
| 12 / 600 | 2800-EAHW12600 | A0206304 |
| 12 / 800 | 2800-EAHW12800 | A0206314 |
| 12 / 1000 | 2800-EAHW121000 | A0206325 |
| 12 / 1100 | 2800-EAHW121100 | A0206336 |
| 12 / 1200 | 2800-EAHW121200 | A0206346 |
| 14 / 600 | 2800-EAHW14600 | A0206305 |
| 14 / 800 | 2800-EAHW14800 | A0206315 |
| 14 / 1000 | 2800-EAHW141000 | A0206326 |
| 14 / 1100 | 2800-EAHW141100 | A0206337 |
| 14 / 1200 | 2800-EAHW141200 | A0206347 |
| 16 / 600 | 2800-EAHW16600 | A0206306 |
| 16 / 800 | 2800-EAHW16800 | A0206316 |
| 16 / 1000 | 2800-EAHW161000 | A0206327 |
| 16 / 1100 | 2800-EAHW161100 | A0206338 |
| 16 / 1200 | 2800-EAHW161200 | A0206348 |
| 18 / 600 | 2800-EAHW19600 | A0206307 |
| 18 / 800 | 2800-EAHW19800 | A0206317 |
| 18 / 1000 | 2800-EAHW191000 | A0206328 |
| 18 / 1200 | 2800-EAHW191200 | A0206349 |
| 20 / 800 | 2800-EAHW21800 | A0206318 |
| 20 / 1000 | 2800-EAHW211000 | A0206329 |
| 20 / 1100 | 2800-EAHW211100 | A0206339 |
| 22 / 600 | 2800-EAHW22600 | A0206308 |
| 22 / 800 | 2800-EAHW22800 | A0206319 |
| 22 / 1000 | 2800-EAHW221000 | A0206330 |
| 22 / 1100 | 2800-EAHW221100 | A0206340 |
| 22 / 1200 | 2800-EAHW221200 | A0206350 |
| 25 / 600 | 2800-EAHW25600 | A0206309 |
| 25 / 800 | 2800-EAHW25800 | A0206320 |
| 25 / 1000 | 2800-EAHW251000 | A0206331 |
| 25 / 1100 | 2800-EAHW251100 | A0206341 |
| 25 / 1200 | 2800-EAHW251200 | A0206351 |
| 28 / 600 | 2800-EAHW28600 | A0206310 |
| 28 / 800 | 2800-EAHW28800 | A0206321 |
| 28 / 1000 | 2800-EAHW281000 | A0206332 |
| 28 / 1100 | 2800-EAHW281100 | A0206342 |
| 28 / 1200 | 2800-EAHW281200 | A0206352 |
| 32 / 600 | 2800-EAHW32600 | A0206311 |
| 32 / 800 | 2800-EAHW32800 | A0206322 |
| 32 / 1000 | 2800-EAHW321000 | A0206333 |
| 32 / 1100 | 2800-EAHW321100 | A0206343 |
| 32 / 1200 | 2800-EAHW321200 | A0206353 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Morris Extra Long Hardwood Auger Drill Bit: 28 / 600
SKU: A0206310 | Model: 2800-EAHW28600
The 28mm x 600mm Morris extra long hardwood auger bit (2800-EAHW28600) drills a 28mm hole in Australian soft and hard woods. It is a Scotch pattern, two flute bit with a heavy duty worm point, and it has a 12mm shank with three flats so it will not slip in the chuck. The overall length is 600mm, so allow for the shank when you work out how deep it will go. The 28mm diameter is also available in 800, 1000, 1100 and 1200mm. This is the shortest length in this range.
