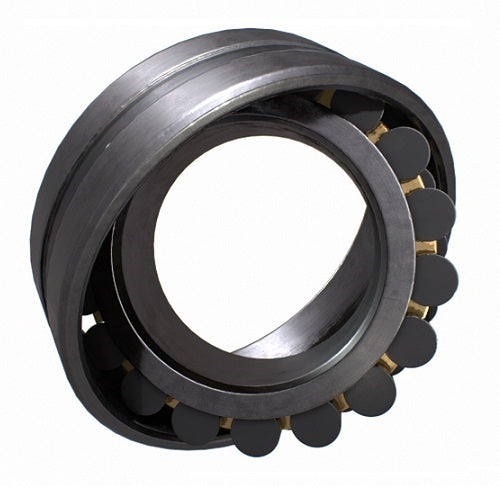

NACHI 23128EW33KC3 Spherical Roller Bearing, Tapered Bore 1:12, W33, C3, 140 x 225 x 68 mm
Available
The NACHI 23128EW33KC3 is a double row spherical roller bearing with a tapered bore (1:12 taper, K), W33 outer ring oil holes and groove, and C3 radial internal clearance. It measures 140 x 225 x 68mm (bore x outer diameter x width).
Spherical roller bearings have two rows of rollers running on a spherical outer ring raceway. They carry heavy radial loads and moderately high axial loads in both directions, have a high impact-load capacity, and tolerate shaft deflection or mounting error. The E in the model number is the roller bearing design change symbol. W33 means oil holes and an oil groove in the outer ring, and C3 is a radial internal clearance larger than Normal.
Where this product is used
- Paper mill and rolling mill equipment, and other large machines where shaft deflection or mounting error can occur
- Gearboxes and industrial transmissions carrying heavy radial and combined loads
- Fans, blowers and pumps
- Conveyors, crushers and mining and mineral processing machinery
- General heavy industrial machinery
Features
- Double row spherical roller bearing: the spherical outer ring raceway lets the bearing tolerate shaft deflection and mounting error, about 2 degrees of misalignment under general service conditions
- W33 outer ring: oil holes and an oil groove to feed lubricant to the rollers
- C3 radial internal clearance, larger than Normal
- Tapered bore, 1:12 taper (K): always fitted with an interference fit on a tapered shaft seat or sleeve, set by measuring clearance reduction or axial drive-up
Key specifications
| Specification | Detail |
|---|---|
| Brand | NACHI |
| Model | 23128EW33KC3 |
| Type | Double row spherical roller bearing |
| Bore d | 140mm |
| Outer diameter D | 225mm |
| Width B | 68mm |
| Bore type | Tapered bore, 1:12 taper (K) |
| Outer ring | W33: oil holes and oil groove |
| Radial internal clearance | C3 (larger than Normal) |
Fitting and use
Tapered bore bearings are always fitted with an interference fit on the shaft, on a tapered shaft seat or an adapter or withdrawal sleeve (ordered separately). Measuring the reduction in radial internal clearance is the more reliable way to set the fit than measuring axial drive-up, and the clearance left after mounting must not fall below the range minimum for the bore size.
Misalignment of about 2 degrees is permitted under general service conditions. Misaligned bearings run noisier as speed rises, so the practical limit can be lower.
W33 means the outer ring has oil holes and an oil groove. Line the housing lubricant port up with the groove so lubricant reaches the rollers.
Choosing the right option
C3 clearance is larger than Normal. It suits a tight shaft fit or a temperature difference between the inner and outer ring, both of which take up clearance.
The bore is tapered, so the shaft seat must be tapered or the bearing mounted on a sleeve; a straight shaft will not take it directly. The taper is 1:12.
See also: NACHI E-series spherical roller bearings with tapered bore (11 sizes, 40 to 190mm bore), NACHI E-series spherical roller bearings with straight bore (6 sizes, 140 to 240mm bore), NACHI EXQ spherical roller bearings with tapered bore (62 sizes, 25 to 180mm bore).
