NACHI 23238EW33KC3MY Spherical Roller Bearing, Tapered Bore 1:12, W33, C3, 190 x 340 x 120 mm
Available

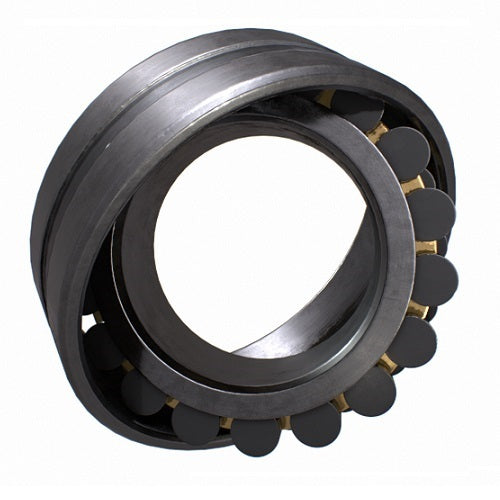

The NACHI 23238EW33KC3MY is a double row spherical roller bearing with a tapered bore (1:12 taper, K), W33 outer ring oil holes and groove, and C3 radial internal clearance. It measures 190 x 340 x 120 mm (bore x outer diameter x width), with a basic dynamic load rating of 2,070,000 N and a basic static load rating of 2,450,000 N.
Spherical roller bearings have two rows of rollers running on a spherical outer ring raceway. They carry heavy radial loads and moderately high axial loads in both directions, have a high impact-load capacity, and tolerate shaft deflection or mounting error.
These are E-series bearings: the E in the model number is the roller bearing design change symbol, and the load ratings and limiting speeds are the general catalogue E-series figures. They are rated on a different basis to the EXQ bearings, so compare speeds only between bearings from the same table.
The MY in the model number is the catalogue symbol for a machined bronze cage. The ratings shown are the catalogue 23238E figures.
Where this product is used
- Paper mill and rolling mill equipment, and other large machines where shaft deflection or mounting error can occur
- Gearboxes and industrial transmissions carrying heavy radial and combined loads
- Fans, blowers and pumps
- Conveyors, crushers and mining and mineral processing machinery
- General heavy industrial machinery
Features
- Double row spherical roller bearing: the spherical outer ring raceway lets the bearing tolerate shaft deflection and mounting error, about 2 degrees of misalignment under general service conditions
- E-series design, rated on the general catalogue limiting speeds
- W33 outer ring: oil holes and an oil groove to feed lubricant to the rollers (10 mm holes, 6 off, groove 22 mm wide)
- C3 radial internal clearance, larger than Normal: 220 to 290 µm for this bore
- Tapered bore, 1:12 taper (K): always fitted with an interference fit on a tapered shaft seat or sleeve, set by measuring clearance reduction or axial drive-up
- MY: machined bronze cage
- Basic dynamic load rating 2,070 kN and static 2,450 kN; heat-stabilised as standard for service up to 200 °C
Key specifications
| Specification | Detail |
|---|---|
| Model | 23238EW33KC3MY |
| Design | E series |
| Type | Double row spherical roller bearing |
| Bore d | 190 mm |
| Outer diameter D | 340 mm |
| Width B | 120 mm |
| Bore type | Tapered bore, 1:12 taper (K) |
| Outer ring | oil holes and oil groove in the outer ring, hole diameter du 10 mm, groove width A 22 mm, 6 holes |
| Radial internal clearance | C3, 220 to 290 µm (tapered bore table, bore over 180 to 200 mm) |
| Cage | Machined bronze (MY) |
| Chamfer dimension r (min) | 4 mm |
| Basic dynamic load rating Cr | 2,070,000 N |
| Basic static load rating Cor | 2,450,000 N |
| Limiting Speed, grease | 1,200 rpm (general catalogue) |
| Limiting Speed, oil | 1,500 rpm (general catalogue) |
| Axial load factors | e 0.36, Y1 1.87, Y2 2.79, Y0 1.83 |
| Mass (reference) | 48 kg (catalogue reference mass, listed against the cylindrical-bore number) |
| Shaft shoulder diameter da (min) | 208 mm |
| Housing shoulder diameter Da (max) | 322 mm |
| Fillet radius ra (max) | 3 mm |
Selecting the right option
This listing is one size, 190 x 340 x 120 mm. The speeds are the limiting speed figures from the general catalogue.
As an E-series design its speeds are the general catalogue limiting speeds. EXQ bearings are rated on a different basis (the EXQ brochure), so compare speeds only between bearings from the same table.
C3 clearance is larger than Normal. It suits a tight shaft fit or a temperature difference between the inner and outer ring, both of which take up clearance.
The bore is tapered, so the shaft seat must be tapered or the bearing mounted on a sleeve; a straight shaft will not take it directly. The taper is 1:12.
Fitting and use
Where there is axial load, keep Fa at or below 0.6 Fr. A bearing running with no load can skid, so apply a load greater than 0.02 Cr.
Tapered bore bearings are always fitted with an interference fit on the shaft, on a tapered shaft seat or an adapter or withdrawal sleeve (ordered separately). Measuring the reduction in radial internal clearance is the more reliable way to set the fit than measuring axial drive-up, and the clearance left after mounting must not fall below the catalogue minimum for the bore size.
Misalignment of about 2 degrees is permitted under general service conditions. Misaligned bearings run noisier as speed rises, so the practical limit can be lower.
W33 means the outer ring has oil holes and an oil groove. Line the housing lubricant port up with the groove so lubricant reaches the rollers.
