NBR 70 O-Ring BS001, 1/32 x 1/32 in, Pack of 100
The price shown is for the pack.
Available

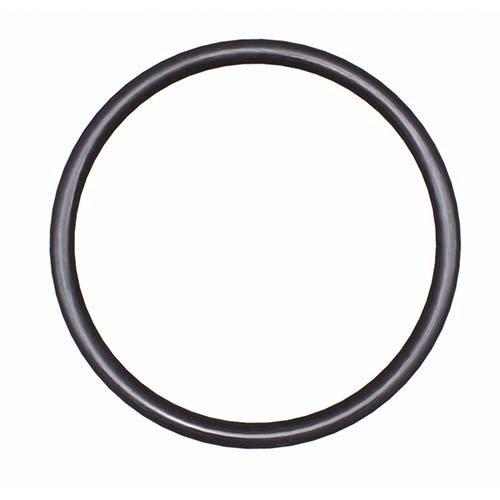

NBR (nitrile rubber) 70 durometer O-ring, BS001, 1/32" inside diameter x 1/32" cross section (0.74 x 1.02mm). Supplied in a pack of 100.
An O-ring seals a joint by sitting in a groove and being squeezed between two surfaces.
Where this product is used
- Sealing flanges, covers and housings in machinery
- Sealing hydraulic and pneumatic fittings, cylinders and valves
- Sealing pump, gearbox and filter housings
- Replacing worn or damaged O-rings during maintenance
Features
- Nitrile rubber (NBR), 70 durometer
- BS series part number BS001
- Size 1/32 x 1/32"
- Measured dimensions and tolerances for the part number
- Pack of 100
Key specifications
| Specification | Detail |
|---|---|
| Material | Nitrile rubber (NBR) |
| Hardness | 70 durometer |
| Part number | BS001 |
| Inside diameter | 1/32" |
| Cross section | 1/32" |
| Pack quantity | 100 |
Choosing the right option
Choose the O-ring from the groove it fits: the inside diameter, the cross section and the part number. To match an existing O-ring, measure the cross section with calipers and the inside diameter with the O-ring relaxed.
Larger BS series cross sections are under NBR 70 O-Ring, BS Series, 1/16" Cross Section, 1/16 to 5-1/4" ID; NBR 70 O-Ring, BS Series, 3/32" Cross Section, 1/16 to 9-3/4" ID; NBR 70 O-Ring, BS Series, 1/8" Cross Section, 3/16 to 18" ID. For a size that is not stocked, NBR 70 O-Ring Cord, Imperial, 1/16 to 1/2 in Diameter can be cut and joined to make a seal for a non-standard groove.
Nitrile rubber suits many oils, fuels and hydraulic fluids. Check that the fluid and the operating conditions suit nitrile before fitting.
