Finer Power NBR 70 O-Ring, inside diameter - id (mm) 1.5
The price shown is for the pack.
Available
NBR (nitrile rubber) 70 durometer metric O-rings with a 1.5mm cross section.
An O-ring seals a joint by sitting in a groove and being squeezed between two surfaces, and nitrile rubber is a common choice for oils, fuels and hydraulic fluids. The part number reads MOR, the inside diameter, X and the cross section, so MOR24X1.5 is 24mm inside diameter by 1.5mm cross section. Measured dimensions and tolerances come in each part number.
Where this product is used
- Sealing flanges, covers and housings in machinery
- Sealing hydraulic and pneumatic fittings, cylinders and valves
- Sealing pump, gearbox and filter housings
- Replacing worn or damaged O-rings during maintenance
Features
- Nitrile rubber (NBR), 70 durometer
- 49 sizes, 1.5 to 50mm inside diameter
- Cross section 1.5mm
- Measured dimensions and tolerances for every part number
- Pack quantities of 50, by size
Key specifications
| Specification | Detail |
|---|---|
| Material | Nitrile rubber (NBR) |
| Hardness | 70 durometer |
| Series | Metric (MOR) |
| Cross section | 1.5mm |
| Inside diameter | 1.5 to 50mm |
| Sizes | 49 part numbers |
| Pack quantities | 50 by size |
Sizes available
| Part number | ID (mm) | Cross section (mm) | ID (in) | Pack |
|---|---|---|---|---|
| MOR1.5X1.5 | 1.5 ± 0.12 | 1.5 ± 0.08 | 0.059 ± 0.005 | 50 |
| MOR2X1.5 | 2 ± 0.13 | 1.5 ± 0.08 | 0.079 ± 0.005 | 50 |
| MOR3X1.5 | 3 ± 0.14 | 1.5 ± 0.08 | 0.118 ± 0.006 | 50 |
| MOR4X1.5 | 4 ± 0.14 | 1.5 ± 0.08 | 0.158 ± 0.006 | 50 |
| MOR5X1.5 | 5 ± 0.15 | 1.5 ± 0.08 | 0.197 ± 0.006 | 50 |

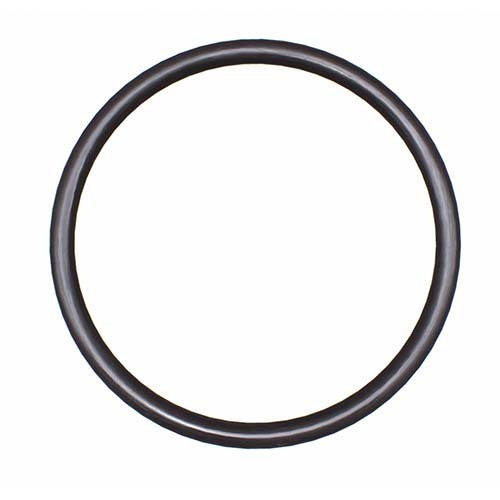

| MOR6X1.5 | 6 | 1.5 ± 0.08 | 0.236 | 50 |
| MOR7X1.5 | 7 ± 0.16 | 1.5 ± 0.08 | - | 50 |
| MOR8X1.5 | 8 ± 0.16 | 1.5 ± 0.08 | 0.315 ± 0.006 | 50 |
| MOR9X1.5 | 9 ± 0.17 | 1.5 ± 0.08 | 0.354 ± 0.007 | 50 |
| MOR10X1.5 | 10 ± 0.17 | 1.5 ± 0.08 | 0.394 ± 0.007 | 50 |
| MOR11X1.5 | 11 ± 0.18 | 1.5 ± 0.08 | 0.433 ± 0.007 | 50 |
| MOR12.5X1.5 | 12.5 ± 0.19 | 1.5 ± 0.08 | 0.492 ± 0.008 | 50 |
| MOR13X1.5 | 13 ± 0.19 | 1.5 ± 0.08 | - | 50 |
| MOR14X1.5 | 14 ± 0.19 | 1.5 ± 0.08 | 0.551 ± 0.008 | 50 |
| MOR15X1.5 | 15 ± 0.2 | 1.5 ± 0.08 | 0.591 ± 0.008 | 50 |
| MOR16X1.5 | 16 ± 0.2 | 1.5 ± 0.08 | 0.63 ± 0.008 | 50 |
| MOR17X1.5 | 17 ± 0.21 | 1.5 ± 0.08 | 0.669 ± 0.008 | 50 |
| MOR18X1.5 | 18 ± 0.21 | 1.5 ± 0.08 | 0.709 ± 0.008 | 50 |
| MOR18.5X1.5 | 18.5 ± 0.22 | 1.5 ± 0.08 | 0.728 ± 0.009 | 50 |
| MOR19X1.5 | 19 ± 0.22 | 1.5 ± 0.08 | 0.748 ± 0.009 | 50 |
| MOR20X1.5 | 20 ± 0.22 | 1.5 ± 0.08 | 0.787 ± 0.009 | 50 |
| MOR21X1.5 | 21 ± 0.23 | 1.5 ± 0.08 | 0.827 ± 0.009 | 50 |
| MOR22X1.5 | 22 ± 0.24 | 1.5 ± 0.08 | 0.866 ± 0.009 | 50 |
| MOR23X1.5 | 23 ± 0.24 | 1.5 ± 0.08 | 0.906 ± 0.009 | 50 |
| MOR24X1.5 | 24 ± 0.24 | 1.5 ± 0.08 | 0.945 ± 0.009 | 50 |
| MOR25X1.5 | 25 ± 0.25 | 1.5 ± 0.08 | 0.984 ± 0.01 | 50 |
| MOR26X1.5 | 26 ± 0.26 | 1.5 ± 0.08 | 1.024 ± 0.01 | 50 |
| MOR27X1.5 | 27 ± 0.26 | 1.5 ± 0.08 | 1.063 ± 0.01 | 50 |
| MOR28X1.5 | 28 ± 0.28 | 1.5 ± 0.08 | 1.102 ± 0.011 | 50 |
| MOR29X1.5 | 29 ± 0.29 | 1.5 ± 0.08 | 1.142 ± 0.011 | 50 |
| MOR30X1.5 | 30 ± 0.29 | 1.5 ± 0.08 | 1.181 ± 0.011 | 50 |
| MOR31X1.5 | 31 ± 0.31 | 1.5 ± 0.08 | 1.221 ± 0.012 | 50 |
| MOR32X1.5 | 32 ± 0.32 | 1.5 ± 0.08 | 1.26 ± 0.013 | 50 |
| MOR33X1.5 | 33 ± 0.32 | 1.5 ± 0.08 | 1.299 ± 0.013 | 50 |
| MOR34X1.5 | 34 ± 0.33 | 1.5 ± 0.08 | 1.339 ± 0.013 | 50 |
| MOR35X1.5 | 35 ± 0.34 | 1.5 ± 0.08 | 1.378 ± 0.013 | 50 |
| MOR36X1.5 | 36 ± 0.35 | 1.5 ± 0.08 | 1.417 ± 0.014 | 50 |
| MOR37X1.5 | 37 ± 0.36 | 1.5 ± 0.08 | 1.457 ± 0.014 | 50 |
| MOR38X1.5 | 38 ± 0.36 | 1.5 ± 0.08 | 1.496 ± 0.014 | 50 |
| MOR39X1.5 | 39 ± 0.37 | 1.5 ± 0.08 | 1.535 ± 0.015 | 50 |
| MOR40X1.5 | 40 ± 0.38 | 1.5 ± 0.08 | 1.575 ± 0.015 | 50 |
| MOR42X1.5 | 42 ± 0.4 | 1.5 ± 0.08 | 1.654 ± 0.016 | 50 |
| MOR43X1.5 | 43 ± 0.4 | 1.5 ± 0.08 | 1.693 ± 0.016 | 50 |
| MOR45X1.5 | 45 ± 0.42 | 1.5 ± 0.08 | 1.772 ± 0.017 | 50 |
| MOR46X1.5 | 46 ± 0.43 | 1.5 ± 0.08 | 1.811 ± 0.017 | 50 |
| MOR47X1.5 | 47 ± 0.44 | 1.5 ± 0.08 | 1.85 ± 0.017 | 50 |
| MOR48X1.5 | 48 ± 0.44 | 1.5 ± 0.08 | 1.89 ± 0.017 | 50 |
| MOR49X1.5 | 49 ± 0.45 | 1.5 ± 0.08 | 1.929 ± 0.018 | 50 |
| MOR50X1.5 | 50 ± 0.46 | 1.5 ± 0.08 | 1.969 ± 0.018 | 50 |
Choosing the right option
Choose the O-ring from the groove it fits: the inside diameter, the cross section and the part number. To match an existing O-ring, measure the cross section with calipers and the inside diameter with the O-ring relaxed, then pick the closest part number.
Other metric cross sections are under NBR 70 O-Ring, Metric, 1.6mm Cross Section, 14.1 and 15.1mm ID; NBR 70 O-Ring, Metric, 1mm Cross Section, 1 to 25mm ID; NBR 70 O-Ring, Metric, 2mm Cross Section, 1 to 100mm ID; NBR 70 O-Ring, Metric, 2.5mm Cross Section, 3 to 49mm ID. For a size that is not stocked, NBR 70 O-Ring Cord, Metric, 1.5 to 16mm Diameter can be cut and joined to make a seal for a non-standard groove.
Nitrile rubber suits many oils, fuels and hydraulic fluids. Check that the fluid and the operating conditions suit nitrile before fitting.
| Option | Part number | SKU |
|---|---|---|
| 1.5 | MOR1.5X1.5 | A0125909 |
| 2 | MOR2X1.5 | A0125921 |
| 3 | MOR3X1.5 | A0125925 |
| 4 | MOR4X1.5 | A0125929 |
| 5 | MOR5X1.5 | A0125936 |
| 6 | MOR6X1.5 | A0125942 |
| 7 | MOR7X1.5 | A0125947 |
| 8 | MOR8X1.5 | A0125951 |
| 9 | MOR9X1.5 | A0125957 |
| 10 | MOR10X1.5 | A0125913 |
| 11 | MOR11X1.5 | A0125962 |
| 12.5 | MOR12.5X1.5 | A0125967 |
| 13 | MOR13X1.5 | A0125978 |
| 14 | MOR14X1.5 | A0125986 |
| 15 | MOR15X1.5 | A0125992 |
| 16 | MOR16X1.5 | A0125996 |
| 17 | MOR17X1.5 | A0126003 |
| 18 | MOR18X1.5 | A0126009 |
| 18.5 | MOR18.5X1.5 | A0126006 |
| 19 | MOR19X1.5 | A0126015 |
| 20 | MOR20X1.5 | A0126019 |
| 21 | MOR21X1.5 | A0126024 |
| 22 | MOR22X1.5 | A0126028 |
| 23 | MOR23X1.5 | A0126071 |
| 24 | MOR24X1.5 | A0126075 |
| 25 | MOR25X1.5 | A0126080 |
| 26 | MOR26X1.5 | A0126083 |
| 27 | MOR27X1.5 | A0126088 |
| 28 | MOR28X1.5 | A0126091 |
| 29 | MOR29X1.5 | A0126095 |
| 30 | MOR30X1.5 | A0126098 |
| 31 | MOR31X1.5 | A0126103 |
| 32 | MOR32X1.5 | A0126105 |
| 33 | MOR33X1.5 | A0126110 |
| 34 | MOR34X1.5 | A0126113 |
| 35 | MOR35X1.5 | A0126119 |
| 36 | MOR36X1.5 | A0126121 |
| 37 | MOR37X1.5 | A0126126 |
| 38 | MOR38X1.5 | A0126129 |
| 39 | MOR39X1.5 | A0126135 |
| 40 | MOR40X1.5 | A0126138 |
| 42 | MOR42X1.5 | A0126145 |
| 43 | MOR43X1.5 | A0126150 |
| 45 | MOR45X1.5 | A0126158 |
| 46 | MOR46X1.5 | A0126161 |
| 47 | MOR47X1.5 | A0126166 |
| 48 | MOR48X1.5 | A0126169 |
| 49 | MOR49X1.5 | A0126175 |
| 50 | MOR50X1.5 | A0126178 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
NBR 70 O-Ring, Metric, 1.5 mm Cross Section, 1.5 to 50 mm ID: 1.5
SKU: A0125909 | Model: MOR1.5X1.5
NBR 70 O-ring MOR1.5X1.5, 1.5mm inside diameter x 1.5mm cross section, pack of 50. Nitrile rubber, 70 durometer.
