NBR 70 O-Ring MOR130X3, 130 x 3 mm
Available

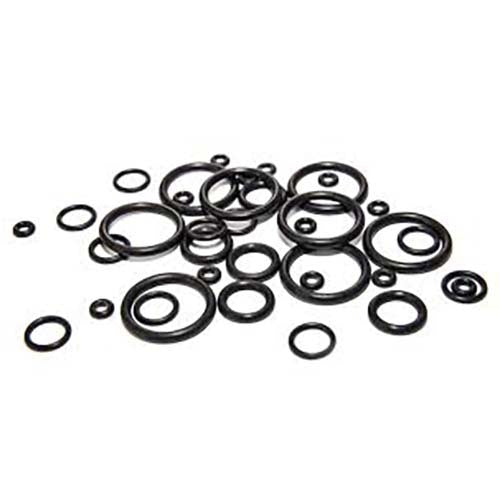

NBR (nitrile rubber) 70 durometer O-ring, MOR130X3, 130mm inside diameter x 3mm cross section.
An O-ring seals a joint by sitting in a groove and being squeezed between two surfaces.
Where this product is used
- Sealing flanges, covers and housings in machinery
- Sealing hydraulic and pneumatic fittings, cylinders and valves
- Sealing pump, gearbox and filter housings
- Replacing worn or damaged O-rings during maintenance
Features
- Nitrile rubber (NBR), 70 durometer
- Metric series part number MOR130X3
- Size 130 x 3mm
- Measured dimensions and tolerances for the part number
Key specifications
| Specification | Detail |
|---|---|
| Material | Nitrile rubber (NBR) |
| Hardness | 70 durometer |
| Part number | MOR130X3 |
| Inside diameter | 130mm |
| Cross section | 3mm |
Choosing the right option
Choose the O-ring from the groove it fits: the inside diameter, the cross section and the part number. To match an existing O-ring, measure the cross section with calipers and the inside diameter with the O-ring relaxed, then pick the closest part number.
Other metric cross sections are under NBR 70 O-Ring, Metric, 3mm Cross Section, 3 to 150mm ID; NBR 70 O-Ring, Metric, 2.5mm Cross Section, 3 to 49mm ID; NBR 70 O-Ring, Metric, 2.5mm Cross Section, 50 to 150mm ID; NBR 70 O-Ring, Metric, 3.5mm Cross Section, 5 to 150mm ID. For a size that is not stocked, NBR 70 O-Ring Cord, Metric, 1.5 to 16mm Diameter can be cut and joined to make a seal for a non-standard groove.
Nitrile rubber suits many oils, fuels and hydraulic fluids. Check that the fluid and the operating conditions suit nitrile before fitting.
