Finer Power NBR 70 O-Ring, inside diameter - id (mm) 50
Available
NBR (nitrile rubber) 70 durometer metric O-rings with a 6mm cross section.
An O-ring seals a joint by sitting in a groove and being squeezed between two surfaces, and nitrile rubber is a common choice for oils, fuels and hydraulic fluids. The part number reads MOR, the inside diameter, X and the cross section, so MOR100X6 is 100mm inside diameter by 6mm cross section. Measured dimensions and tolerances come in each part number.
Where this product is used
- Sealing flanges, covers and housings in machinery
- Sealing hydraulic and pneumatic fittings, cylinders and valves
- Sealing pump, gearbox and filter housings
- Replacing worn or damaged O-rings during maintenance
Features
- Nitrile rubber (NBR), 70 durometer
- 21 sizes, 50 to 150mm inside diameter
- Cross section 6mm
- Measured dimensions and tolerances for every part number
Key specifications
| Specification | Detail |
|---|---|
| Material | Nitrile rubber (NBR) |
| Hardness | 70 durometer |
| Series | Metric (MOR) |
| Cross section | 6mm |
| Inside diameter | 50 to 150mm |
| Sizes | 21 part numbers |
Sizes available
| Part number | ID (mm) | Cross section (mm) | ID (in) | Pack |
|---|---|---|---|---|
| MOR50X6 | 50 ± 0.48 | 6 ± 0.15 | 1.969 ± 0.019 | - |
| MOR55X6 | 55 ± 0.52 | 6 ± 0.15 | 2.165 ± 0.02 | - |
| MOR60X6 | 60 ± 0.55 | 6 ± 0.15 | 2.362 ± 0.022 | - |

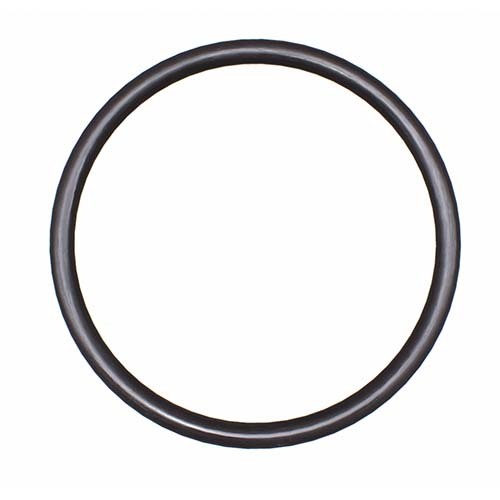

| MOR65X6 | 65 ± 0.58 | 6 ± 0.15 | 2.559 ± 0.023 | - |
| MOR70X6 | 70 ± 0.62 | 6 ± 0.15 | 2.756 ± 0.024 | - |
| MOR75X6 | 75 ± 0.65 | 6 ± 0.15 | 2.953 ± 0.026 | - |
| MOR80X6 | 80 ± 0.69 | 6 ± 0.15 | 3.15 ± 0.027 | - |
| MOR85X6 | 85 ± 0.72 | 6 ± 0.15 | 3.347 ± 0.028 | - |
| MOR90X6 | 90 ± 0.76 | 6 ± 0.15 | 3.543 ± 0.03 | - |
| MOR95X6 | 95 ± 0.79 | 6 ± 0.15 | 3.74 ± 0.031 | - |
| MOR100X6 | 100 ± 0.82 | 6 ± 0.15 | 3.937 ± 0.033 | - |
| MOR105X6 | 105 ± 0.86 | 6 ± 0.15 | 4.134 ± 0.034 | - |
| MOR110X6 | 110 ± 0.89 | 6 ± 0.15 | 4.331 ± 0.035 | - |
| MOR115X6 | 115 ± 0.93 | 6 ± 0.15 | 4.528 ± 0.037 | - |
| MOR120X6 | 120 ± 0.96 | 6 ± 0.15 | 4.724 ± 0.038 | - |
| MOR125X6 | 125 ± 0.99 | 6 ± 0.15 | 4.921 ± 0.039 | - |
| MOR130X6 | 130 ± 1.03 | 6 ± 0.15 | 5.118 ± 0.04 | - |
| MOR135X6 | 135 ± 1.06 | 6 ± 0.15 | 5.315 ± 0.042 | - |
| MOR140X6 | 140 ± 1.09 | 6 ± 0.15 | 5.512 ± 0.043 | - |
| MOR145X6 | 145 ± 1.13 | 6 ± 0.15 | 5.709 ± 0.045 | - |
| MOR150X6 | 150 ± 1.16 | 6 ± 0.15 | 5.906 ± 0.046 | - |
Choosing the right option
Choose the O-ring from the groove it fits: the inside diameter, the cross section and the part number. To match an existing O-ring, measure the cross section with calipers and the inside diameter with the O-ring relaxed, then pick the closest part number.
Other metric cross sections are under NBR 70 O-Ring, Metric, 5mm Cross Section, 30 to 150mm ID; NBR 70 O-Ring, Metric, 4mm Cross Section, 4 to 150mm ID; NBR 70 O-Ring, Metric, 3.5mm Cross Section, 5 to 150mm ID; NBR 70 O-Ring, Metric, 3mm Cross Section, 3 to 150mm ID. For a size that is not stocked, NBR 70 O-Ring Cord, Metric, 1.5 to 16mm Diameter can be cut and joined to make a seal for a non-standard groove.
Nitrile rubber suits many oils, fuels and hydraulic fluids. Check that the fluid and the operating conditions suit nitrile before fitting.
| Option | Part number | SKU |
|---|---|---|
| 50 | MOR50X6 | A0126183 |
| 55 | MOR55X6 | A0126199 |
| 60 | MOR60X6 | A0126216 |
| 65 | MOR65X6 | A0126225 |
| 70 | MOR70X6 | A0126238 |
| 75 | MOR75X6 | A0126247 |
| 80 | MOR80X6 | A0126265 |
| 85 | MOR85X6 | A0126274 |
| 90 | MOR90X6 | A0126286 |
| 95 | MOR95X6 | A0126295 |
| 100 | MOR100X6 | A0126252 |
| 105 | MOR105X6 | A0126034 |
| 110 | MOR110X6 | A0126038 |
| 115 | MOR115X6 | A0126042 |
| 120 | MOR120X6 | A0126046 |
| 125 | MOR125X6 | A0126050 |
| 130 | MOR130X6 | A0126053 |
| 135 | MOR135X6 | A0126057 |
| 140 | MOR140X6 | A0126060 |
| 145 | MOR145X6 | A0126064 |
| 150 | MOR150X6 | A0126068 |
Resources
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
NBR 70 O-Ring, Metric, 6 mm Cross Section, 50 to 150 mm ID: 50
SKU: A0126183 | Model: MOR50X6
NBR 70 O-ring MOR50X6, 50mm inside diameter x 6mm cross section. Nitrile rubber, 70 durometer.
