Finer Power NBR 70 O-Ring Cord, diameter (mm) 1.5
Available

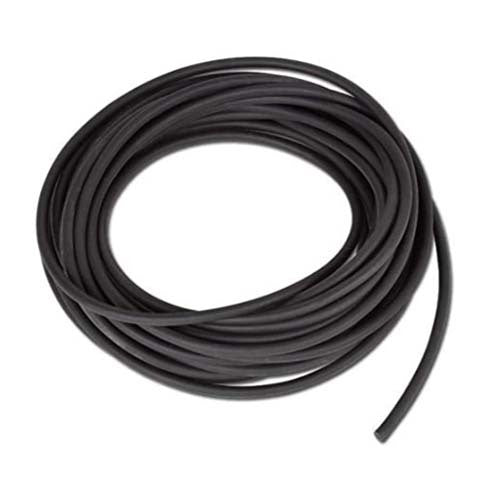

NBR (nitrile rubber) 70 durometer O-ring cord in 34 metric diameters from 1.5 to 16mm. Sold by the metre and cut to length.
Cut the cord to length and join the ends to make an O-ring for a non-standard groove, or to replace a seal when the standard size is not at hand. Nitrile rubber has good resistance to hydrocarbon fuels, greases and mineral oils.
Where this product is used
- Making custom O-rings for non-standard grooves
- Emergency and workshop seal repairs
- Replacing O-rings in older or unusual equipment
- Prototype and one-off sealing jobs
Features
- Nitrile rubber (NBR), 70 durometer
- 34 metric diameters, 1.5 to 16mm
- Sold by the metre and cut to length
- Make custom O-rings for non-standard grooves
Key specifications
| Specification | Detail |
|---|---|
| Material | Nitrile rubber (NBR) |
| Hardness | 70 durometer |
| Diameters | 34 sizes, 1.5 to 16mm |
| Supplied | By the metre, cut to length |
Sizes available
| Part number | Diameter (mm) |
|---|---|
| ORC-1.5MM | 1.5 |
| ORC-1.6MM | 1.6 |
| ORC-2MM | 2 |
| ORC-2.4MM | 2.4 |
| ORC-2.5MM | 2.5 |
| ORC-3MM | 3 |
| ORC-3.2MM | 3.2 |
| ORC-3.5MM | 3.5 |
| ORC-4MM | 4 |
| ORC-4.5MM | 4.5 |
| ORC-4.75MM | 4.75 |
| ORC-5MM | 5 |
| ORC-5.5MM | 5.5 |
| ORC-5.7MM | 5.7 |
| ORC-6MM | 6 |
| ORC-6.35MM | 6.35 |
| ORC-6.5MM | 6.5 |
| ORC-7MM | 7 |
| ORC-7.5MM | 7.5 |
| ORC-8MM | 8 |
| ORC-8.4MM | 8.4 |
| ORC-8.5MM | 8.5 |
| ORC-9MM | 9 |
| ORC-9.5MM | 9.5 |
| ORC-10MM | 10 |
| ORC-10.5MM | 10.5 |
| ORC-11MM | 11 |
| ORC-11.5MM | 11.5 |
| ORC-12MM | 12 |
| ORC-13MM | 13 |
| ORC-14MM | 14 |
| ORC-14.5MM | 14.5 |
| ORC-15MM | 15 |
| ORC-16MM | 16 |
Choosing the right option
Choose the cord diameter to match the cross section of the O-ring or the groove. Cut the cord to the length of the groove centreline, allowing for the join, and join the ends with a suitable adhesive.
A joined cord seal is a repair or workshop solution. Where a standard size is available, a ready-made O-ring is under NBR 70 O-Ring, Metric, 3mm Cross Section, 3 to 150mm ID and NBR 70 O-Ring, Metric, 2mm Cross Section, 1 to 100mm ID. Cord is also offered in NBR 70 O-Ring Cord, Imperial, 1/16 to 1/2 in Diameter.
Check that the fluid and the operating conditions suit nitrile before fitting.
| Option | Part number | SKU |
|---|---|---|
| 1.5 | ORC-1.5MM | A0126304 |
| 1.6 | ORC-1.6MM | A0126305 |
| 2 | ORC-2MM | A0126318 |
| 2.4 | ORC-2.4MM | A0126316 |
| 2.5 | ORC-2.5MM | A0126317 |
| 3 | ORC-3MM | A0126321 |
| 3.2 | ORC-3.2MM | A0126319 |
| 3.5 | ORC-3.5MM | A0126320 |
| 4 | ORC-4MM | A0126324 |
| 4.5 | ORC-4.5MM | A0126322 |
| 4.75 | ORC-4.75MM | A0126323 |
| 5 | ORC-5MM | A0126327 |
| 5.5 | ORC-5.5MM | A0126325 |
| 5.7 | ORC-5.7MM | A0126326 |
| 6 | ORC-6MM | A0126330 |
| 6.35 | ORC-6.35MM | A0126328 |
| 6.5 | ORC-6.5MM | A0126329 |
| 7 | ORC-7MM | A0126332 |
| 7.5 | ORC-7.5MM | A0126331 |
| 8 | ORC-8MM | A0126335 |
| 8.4 | ORC-8.4MM | A0126333 |
| 8.5 | ORC-8.5MM | A0126334 |
| 9 | ORC-9MM | A0126337 |
| 9.5 | ORC-9.5MM | A0126336 |
| 10 | ORC-10MM | A0126307 |
| 10.5 | ORC-10.5MM | A0126306 |
| 11 | ORC-11MM | A0126309 |
| 11.5 | ORC-11.5MM | A0126308 |
| 12 | ORC-12MM | A0126310 |
| 13 | ORC-13MM | A0126311 |
| 14 | ORC-14MM | A0126313 |
| 14.5 | ORC-14.5MM | A0126312 |
| 15 | ORC-15MM | A0126314 |
| 16 | ORC-16MM | A0126315 |
