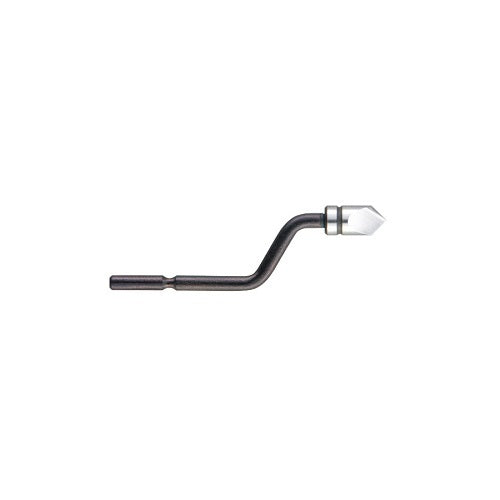

Noga BC6301, 1 - 6.3
Available

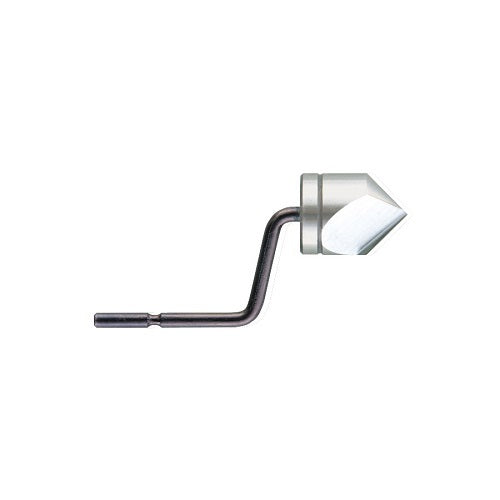

Noga BC6301, BC1041 and BC1651 are cranked countersink blades with ranges of 1-6.3mm, 1-10.4mm and 1-16.5mm.
They are the RD6.3, RD10.4 and RD16.5 blades, with a 90° angle, for steel, aluminium and plastic, in HSS with a hardness of 62-64Rc. The RD2010 Rotodrive Countersink Set includes the NG1000 handle with the 6.3 and 10.4 blades (BC6301 and BC1041).
Where this product is used
- Countersinking and deburring within a range of 1-6.3mm, 1-10.4mm or 1-16.5mm for steel, aluminium and plastic
Features
- Cranked RD countersink blades, 90° angle
- Ranges of 1-6.3mm (RD6.3), 1-10.4mm (RD10.4) and 1-16.5mm (RD16.5)
- HSS, hardness 62-64Rc
- Blade type: Cranked RD countersink blade
Key specifications
| Specification | Detail |
|---|---|
| Brand | Noga |
| Blade type | Cranked RD countersink blade |
| Angle | 90° |
| Material | HSS, hardness 62-64Rc |
| Listed for | Steel, aluminium and plastic |
| Noga blade | RD6.3, RD10.4, RD16.5 |
| Range | 1-6.3, 1-10.4, 1-16.5 |
Choosing the right option
For a 1-20mm range see the Noga Cranked RD20 Countersink Blade 1-20mm Range 3.2mm Shank. NG-1 handle Noga NG1000 NG-1 Handle (Holds S blades) beside these blades.
Larger range: Noga Cranked RD20 Countersink Blade 1-20mm Range 3.2mm Shank.
Handle: Noga NG1000 NG-1 Handle (Holds S blades).
Reversible countersinks: Noga Reversible Countersink.
| Option | Part number | SKU |
|---|---|---|
| 1 - 6.3 | BC6301 | A0111913 |
| 1 - 10.4 | BC1041 | A0111910 |
| 1 - 16.5 | BC1651 | A0111911 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Noga Cranked Countersink: 1 - 6.3
SKU: A0111913 | Model: BC6301
Noga BC6301: RD6.3 cranked countersink blade, range 1-6.3mm, 90° angle, HSS 62-64Rc.
