Noga RC1000 Mini Reversible Countersink, 3 to 5.5mm Range, R1 Blade

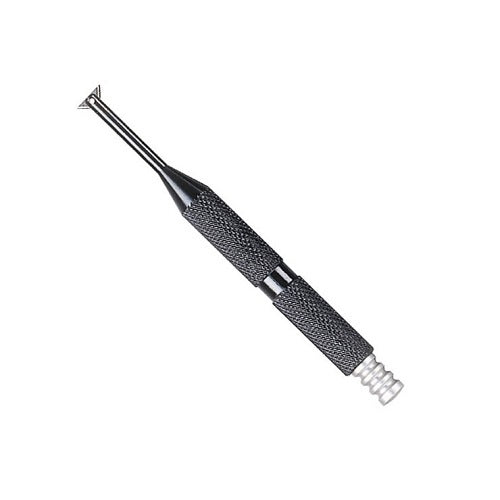

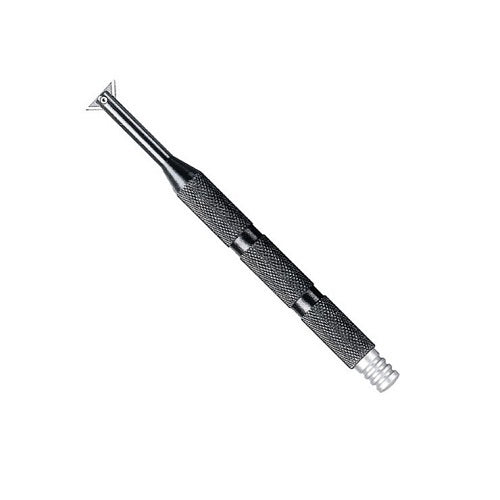

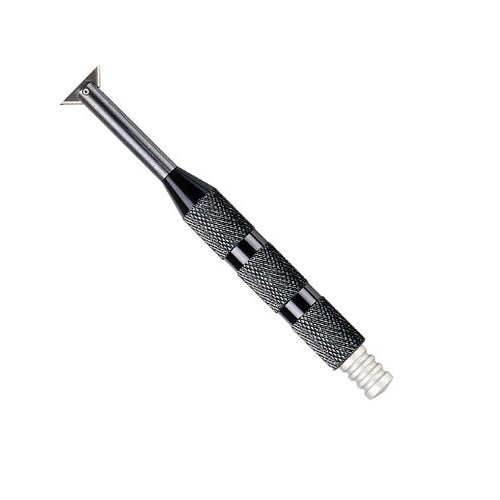

Noga RC1000, RC2000 and RC2200 are the Mini, Medium and Large Reversible countersink handles, for ranges of 3 to 5.5mm, 5 to 10mm and 10 to 22mm (manufacturer-stated).

Each is a steel handle with one reversible blade included: R1 with the RC1000, R2 with the RC2000 and R3 with the RC2200 (manufacturer-stated). The blade is H.S.S., hardness 62-64Rc, with a 90° angle (manufacturer-stated).

Where this product is used

• Deburring on external surfaces (blade position one) (manufacturer-stated)

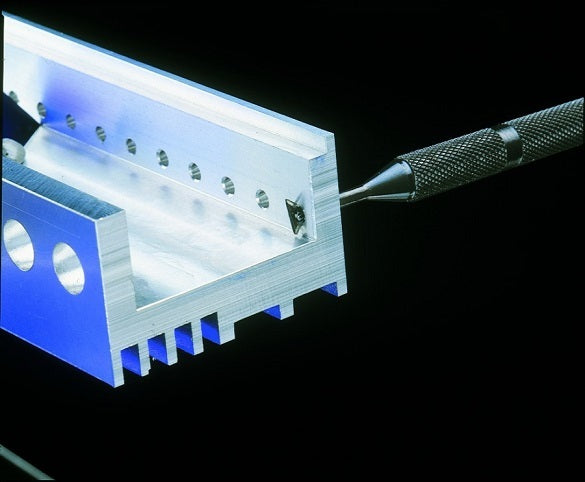

• Deburring on internal surfaces through an opening: rotate the blade 90° from position one, enter the opening, then rotate it another 90° (position two) (manufacturer-stated)
• RC1000: deburring both the back and front sides of holes (manufacturer-stated)

Features

• Mini, Medium and Large handles for 3 to 5.5mm, 5 to 10mm and 10 to 22mm (manufacturer-stated)
• Steel handle with a reversible blade included (manufacturer-stated)
• Two blade positions: external surface, or internal surface through an opening (manufacturer-stated)
• Allen key concealed under the aluminium part at the top of the handle, used to remove and replace the blade (manufacturer-stated)

Common specifications

Key specifications

Ranges as printed by Noga; the option shows the range in mm. Blade order numbers are the single R blades listed by Noga.

Selecting the right option

Choose the handle by the diameter range: the RC1000 covers 3 to 5.5mm, the RC2000 5 to 10mm and the RC2200 10 to 22mm. The ranges meet at 5mm and 10mm, so a hole of exactly that size is covered by either neighbouring handle. Each handle is listed with one blade, and spare blades are the Noga Deburring Blade, Reversible Countersink (BR1001 for R1, BR2001 for R2, BR3001 for R3). Noga also lists the three handles together as the Reversible Countersink Set RC3300, and the RC2000 is included in the Silver Unikit (manufacturer-stated).

Related products

Replacement R blades: Noga Deburring Blade, Reversible Countersink. Kit that includes the RC2000: Noga NG9300 Silver Unikit Deburring System.
