Noga BR1001, Large
Available
Noga BR1001, BR2001 and BR3001 are the R1, R2 and R3 blades for reversible countersink handles, for ranges of 3 to 5.5mm, 5 to 10mm and 10 to 22mm.
Each blade is H.S.S. with a hardness of 62-64Rc, has a 90° angle and is supplied with a replacement screw. R1, R2 and R3 blades with the RC1000, RC2000 and RC2200 reversible handles respectively.
Where this product is used
- Deburring on external surfaces (blade position one)
- Deburring on internal surfaces through an opening: rotate the blade 90° from position one, enter the opening, then rotate it another 90° (position two)
- Noga marks the R blades for holes and cross holes
Features
- Three ranges: R1 for 3 to 5.5mm, R2 for 5 to 10mm, R3 for 10 to 22mm
- H.S.S. blades, hardness 62-64Rc
- 90° angle, supplied with a replacement screw
- Blade is changed with the allen key kept under the aluminium part at the top of the reversible handle
Key specifications
| Specification | Detail |
|---|---|
| Brand | Noga |
| Blade material | H.S.S., hardness 62-64Rc |
| Angle | 90° |
| Supplied with | Replacement screw |
| Package quantity | 1 |
| Size option | Small, Medium, Large |
| Noga blade | R1, R2, R3 |
| Range | 3 to 5.5mm, 5 to 10mm, 10 to 22mm |
Choosing the right option
Choose the blade by the diameter range you need to deburr: BR1001 (R1) for 3 to 5.5mm, BR2001 (R2) for 5 to 10mm and BR3001 (R3) for 10 to 22mm. Each blade with the matching reversible handle: R1 with the RC1000, R2 with the RC2000 and R3 with the RC2200 (all Noga Reversible Countersink).
See also: Noga Reversible Countersink.
Sets that include a reversible countersink: Noga NG9300 Silver Unikit Deburring System.
| Option | Part number | SKU |
|---|---|---|
| Large | BR3001 | A0109108 |
| Medium | BR2001 | A0109107 |
| Small | BR1001 | A0109106 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details

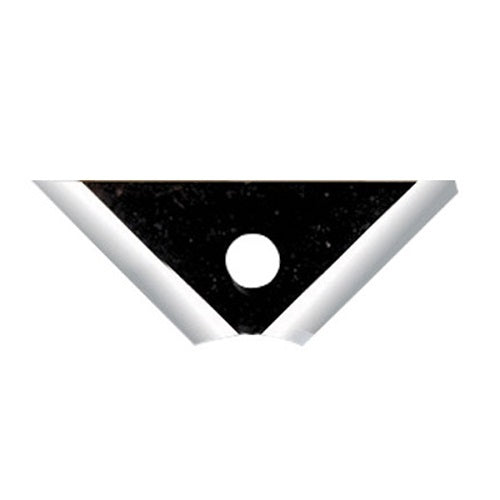

Noga Deburring Blade, Reversible Countersink: Large
SKU: A0109108 | Model: BR3001
Noga BR3001: R3 reversible countersink blade, 10 to 22mm range, 90° angle, H.S.S., 62-64Rc, with replacement screw.
