Noga FA1120 3/8" standard clamp
Available

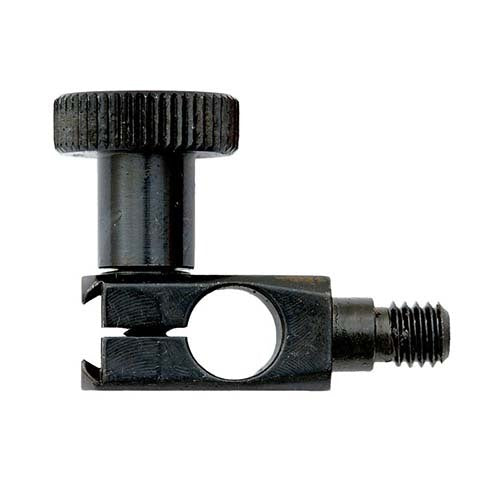

Noga FA1120 is a 3/8" standard clamp with no fine adjustment. It is the standard clamp of 3/8" diameter for its holders.

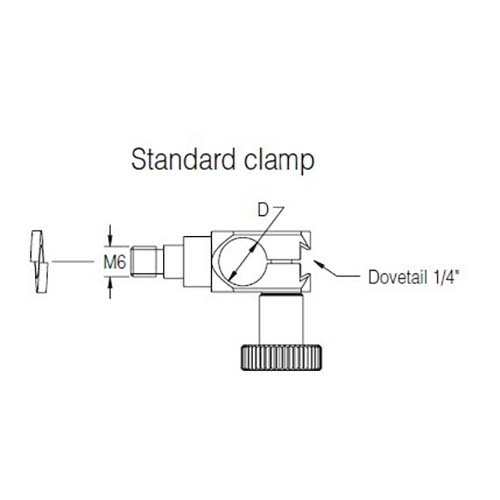

The FA1120 is the standard clamp for the NF10433, DG10533, MG10533, NF1018, NF1024, NF1033 and LC6210 holders. Noga's drawings mark an M6 thread on the standard clamp.
Where this product is used
- Holding magnetic bases and indicator arms in position
- Setting up dial indicators and test gauges on a stand
Features
- 3/8" standard clamp, no fine adjustment
- M6 thread marked on Noga's drawing
- Standard clamp for the NF10433, DG10533, MG10533, NF1018, NF1024, NF1033 and LC6210
- Clamp diameter: 3/8"
Key specifications
| Specification | Detail |
|---|---|
| Brand | Noga |
| Part number | FA1120 |
| Clamp diameter | 3/8" |
| Thread | M6, as marked on Noga's drawing |
| Fine adjustment | None |
| Standard clamp for | NF10433, DG10533, MG10533, NF1018, NF1024, NF1033, LC6210 |
Choosing the right option
The FA1120 is the 3/8" clamp; the Noga FA1100 Top Attachment With No Fine Adjustment M6 Thread W/ 8mm Clamp is the same standard clamp in the 8mm size. If you need fine adjustment, see the Noga FA1400 2SM Fine Adjustment or Noga FA1500 Top Attachment Only With Fine Adjustment.
8mm version: Noga FA1100 Top Attachment With No Fine Adjustment M6 Thread W/ 8mm Clamp.
Top attachments with fine adjustment: Noga FA1300 Plastic Fine Adjustment, Noga FA1400 2SM Fine Adjustment, Noga FA1500 Top Attachment Only With Fine Adjustment.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Noga FA1120 3/8" Standard Clamp No Fine Adjustment
SKU: A0108078 | Model: FA1120
Noga FA1120 is a 3/8" standard clamp. Clamp diameter: 3/8".
