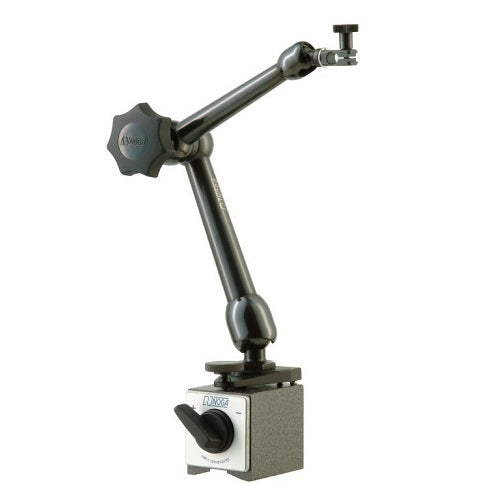

Dial Gauge Holder Articulated Arm Fine Adjustment at the Base

• Dial gauge holder with articulated arm and fine adjustment at the base arm is 133 & 113mm.
• The clamp is 8mm.
• Magnet Force is 800N.
• Dimensions 50mm x 60mm x 55mm.
• The easiest magnetic base to set into position.
• The Central locking mechanism unlocks & locks the arm in 3 places allowing for an efficient, fast & easy set up of gauges into the required position.
• These models have a unique fine adjustment mechanism which is placed on the magnetic base, allowing the hand to rest on the base rather than the clamp of the indicator.
• Zero setting becomes faster than with any other mechanism.
