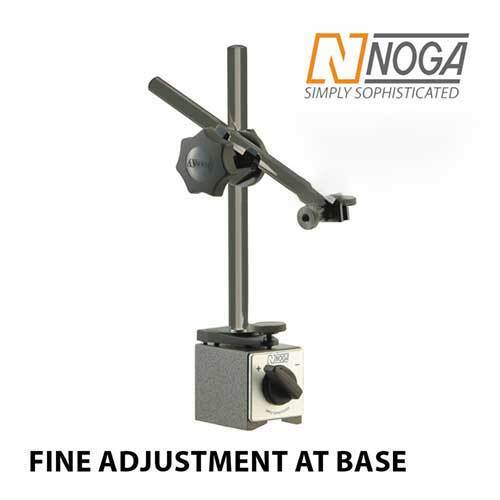

Noga PH2040 Post Arm Holder Dial Gauge Fine Adjustment
Available
The post is ø14 x 203mm and the arm ø12 x 185mm (diameter x length). The magnet measures 50 x 60 x 55mm (W x L x H) and the holder weighs 1.7kg. 3 points clamp PH0310 and universal swivel clamp FA1410 for it.
Where this product is used
- Holding a dial gauge on a post and arm with fine adjustment
- Setting up dial indicators and test gauges
Features
- Magnet force 800 N
- Post ø14 x 203mm, arm ø12 x 185mm
- 3 points clamp PH0310 and universal swivel clamp FA1410 for this holder
- Range: Fine Adjustment Base
Key specifications
| Specification | Detail |
|---|---|
| Brand | Noga |
| Part number | PH2040 |
| Range | Fine Adjustment Base |
| Post (D1 x L1) | ø14 x 203mm |
| Arm (D2 x L2) | ø12 x 185mm |
| Magnet force | 800 N |
| Magnet size (W x L x H) | 50 x 60 x 55mm |
| 3 points clamp | PH0310 |
| Universal swivel clamp | FA1410 |
| Weight | 1.7kg |
Choosing the right option
The PH2040 is the mid-size post holder in the Fine Adjustment Base range. The Noga PH6800 Post Arm Holder Dial Gauge Fine Adjustment on Top is the Fine Adjustment Top post holder with a longer post (ø18 x 350mm) and a 1300 N magnet. PH0310 as the 3 points clamp for the PH2040.
Larger post holder with fine adjustment on top: Noga PH6800 Post Arm Holder Dial Gauge Fine Adjustment on Top.
Magnet base of similar size: Noga 50 x 60 x 55mm DG0036 On/Off Holding System Magnet 800N M8 Thread.
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Noga PH2040 Post Arm Holder Dial Gauge Fine Adjustment
SKU: A0144277 | Model: PH2040
Noga PH2040 is a post arm holder. Post (D1 x L1): ø14 x 203mm. Arm (D2 x L2): ø12 x 185mm.
