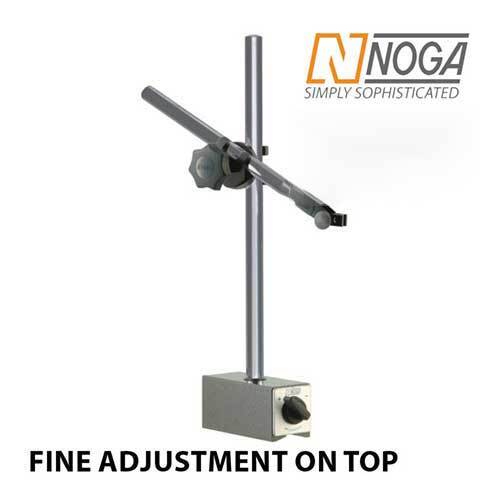

Noga PH6800 Post Arm Holder Dial Gauge Fine Adjustment on Top
Available
The post is ø18 x 350mm and the arm ø16 x 225mm (diameter x length), with an M10 x 1.25 bottom thread. The magnet measures 50 x 120 x 55mm (W x L x H) and the holder weighs 3.45kg. 3 points clamp PH0313 for it.
Where this product is used
- Holding a dial gauge on a post and arm with fine adjustment on top
- Setting up dial indicators and test gauges
Features
- Magnet force 1300 N
- Post ø18 x 350mm, arm ø16 x 225mm
- 3 points clamp PH0313 for this holder
- Range: Fine Adjustment Top
Key specifications
| Specification | Detail |
|---|---|
| Brand | Noga |
| Part number | PH6800 |
| Range | Fine Adjustment Top |
| Bottom thread | M10 x 1.25 |
| Post (D1 x L1) | ø18 x 350mm |
| Arm (D2 x L2) | ø16 x 225mm |
| Magnet force | 1300 N |
| Magnet size (W x L x H) | 50 x 120 x 55mm |
| 3 points clamp | PH0313 |
| Weight | 3.45kg |
Choosing the right option
The PH6800 has the longest post, ø18 x 350mm, of the Noga post holders with a magnet, with a 1300 N magnet and an M10 x 1.25 bottom thread. The Noga PH2040 Post Arm Holder Dial Gauge Fine Adjustment is the smaller Fine Adjustment Base post holder (ø14 x 203mm post, 800 N). PH0313 as the 3 points clamp for the PH6800.
Smaller post holder with fine adjustment on the base: Noga PH2040 Post Arm Holder Dial Gauge Fine Adjustment.
Magnet base with the same 1300 N force and M10 x 1.25 thread: Noga On/Off Holding System Magnet.
