NTN Spherical Roller Bearing w/ Tapered Bore & Oil Groove

• The spherical roller bearing withstands significant loads and misalignments.
• This type of roller bearing is well adapted to harsh operating conditions: impacts or vibrations (crushers, vibrating screens, heavy handling, etc.).

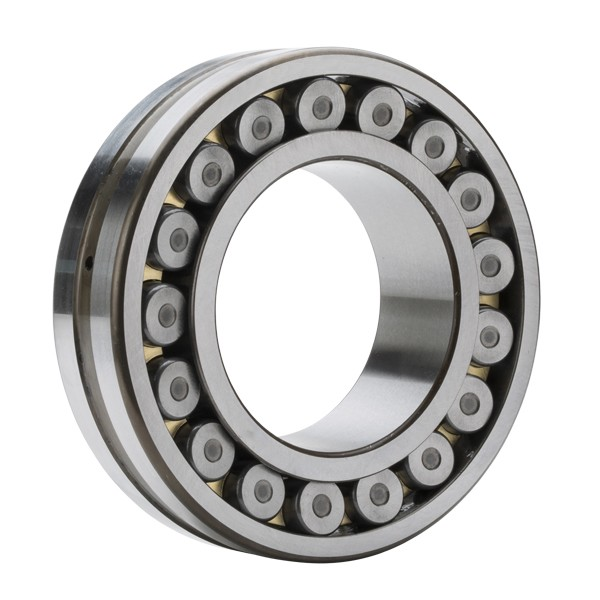

About 22209EAKW33C3 Spherical Roller Bearing

• The 22209EAKW33C3 Spherical Roller Bearing is built for tough industrial applications where high load capacity and long service life are essential.
• Featuring a tapered bore (K), it mounts easily on tapered shafts or adapter sleeves for a secure and precise fit.
• Designed with a W33 oil groove and lubricating holes, this bearing supports consistent lubrication, reduces wear, and helps maintain smooth operation - ideal for gearboxes, conveyors, crushers, and other heavy-duty machinery.
• With its C3 clearance, the 22209EAKW33C3 can handle temperature changes and higher speeds, offering reliable performance in demanding Australian workshop and plant environments.

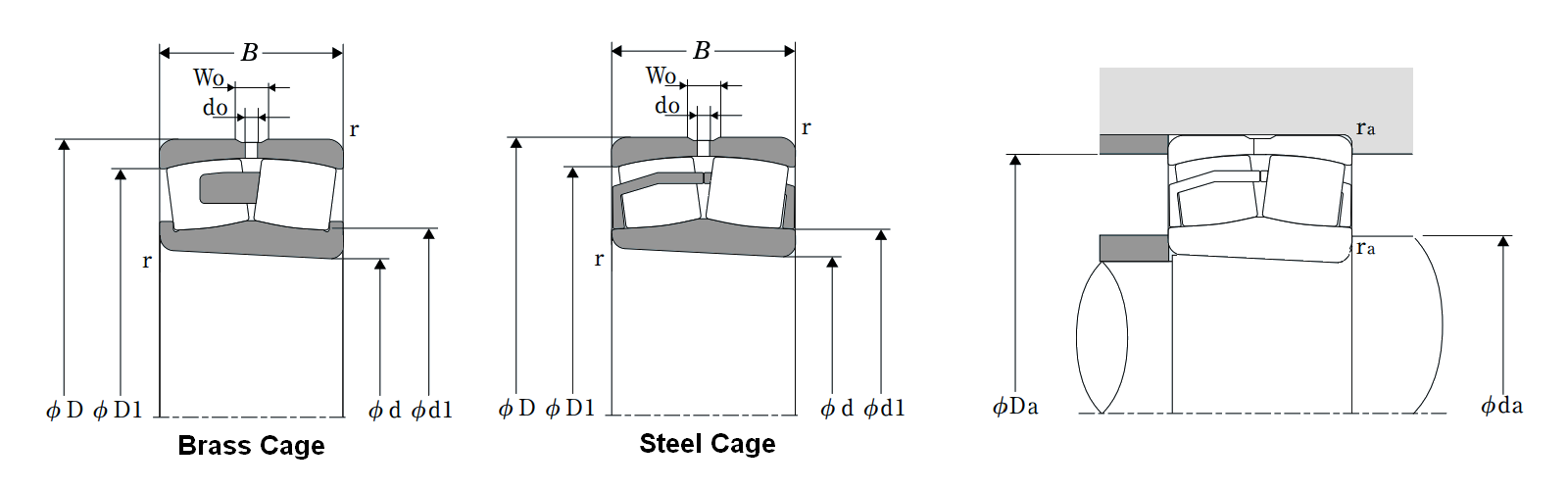

• d: 1.7720 in45.000 mm
• D: 3.3465 in85.000 mm
• B: 0.9055 in23.000 mm
• r: 0.0433 in1.100 mm
• W0: 0.2362 in6.000 mm
• d0: 0.0984 in2.500 mm
• da min: 2.0472 in52.000 mm
• Da max: 3.0709 in78.000 mm
• ras max: 0.0433 in1.100 mm
• Type: Spherical Roller Bearing
• Bore Type: Tapered
• Material: Through Hardened Steel
• Cage Type: Pressed
• Cage Material: Steel
• Limiting Speed - Oil: 7100 RPM
• Limiting Speed - Grease: 6100.0 RPM
• e: 0.26
• Y1: 2.64
• Y2: 3.93
• Y0: 2.58
• Series: 222
• Radial Internal Clearance: C3
• Ring Modification: Relube
• Tolerance: JIS-0 RBEC-1
• Taper: 0.05
• Static Load Rating: 25404 lbf113000 N113.00 kN
• Dynamic Load Rating: 27202 lbf121000 N121.00 kN
• Enclosure: Open
• Weight: 1.257 lb; 0.570 kg
• Operating Temperature Range: -40 to 400 / ºF-40 to 200 ºC
