Pferd aluminium oxide bench grinding wheel, 24 / 150 x 20
Available

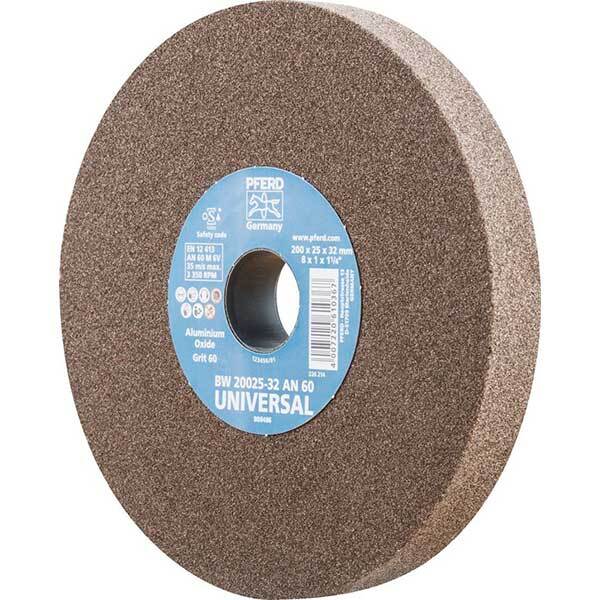

The Pferd UNIVERSAL bench grinding wheel is a regular aluminium oxide (AN) wheel for mounting on a bench grinder. The range has six options: three 150 x 20mm wheels and three 200 x 25mm wheels, each size in grits 24, 36 and 60.
The UNIVERSAL version is made for universal use in the workshop on steel, cast steel, stainless steel (INOX) and cast iron. Key features are long tool life, high dimensional stability, high abrasive performance and integrated adapter sleeves for mounting on almost any bench grinder spindle.
Where this product is used
- Universal use in the workshop on steel, cast steel, stainless steel (INOX) and cast iron
- Highly suited to steels up to 1,200 N/mm2 (< 38 HRC), stainless steel (INOX) and soft non-ferrous metals such as aluminium alloys, brass, copper and zinc
- Suited to hardened, heat-treated steels over 1,200 N/mm2 (> 38 HRC) and for hard non-ferrous metals such as bronze and titanium
- Deburring, sharpening and edge work such as chamfering and rounding
Features
- Regular aluminium oxide (AN) abrasive in grits 24, 36 and 60
- Sizes 150 x 20mm and 200 x 25mm
- Maximum speed 4,500rpm on the 150mm wheels and 3,350rpm on the 200mm wheels
- Long tool life and high dimensional stability
- Integrated adapter sleeves for mounting on almost any bench grinder spindle
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Abrasive | Regular aluminium oxide (AN) |
| Wheel sizes (D x T) | 150 x 20mm and 200 x 25mm |
| Grit sizes | 24, 36 and 60 |
| Maximum permitted peripheral speed | 35 m/s |
Choosing the right option

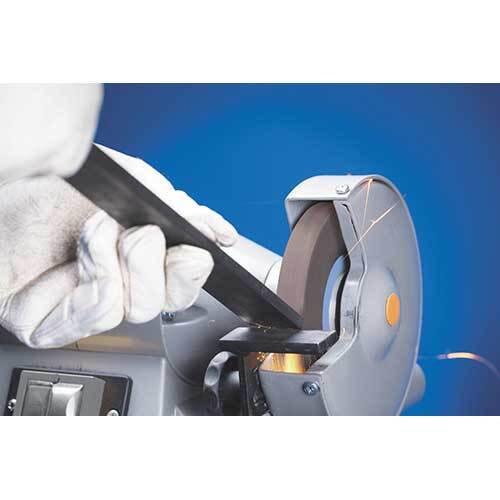

Match the bore and size to your bench grinder, and choose the grit for the job: a higher grit number is a finer abrasive. For safety reasons, never exceed the maximum rotational speed printed for the item. The maximum permitted peripheral speed is 35 m/s, and says to ring test the wheel before clamping: an undamaged wheel gives a clear tone. Dress the wheel regularly to expose sharp grain and keep an even grinding face, and keep the workpiece support adjusted to the wheel diameter with a gap of no more than 3mm.
Other Pferd bench grinding wheel designs: White Aluminium Oxide HSS bench grinding wheels, Silicon Carbide bench grinding wheels.
| Option | Part number | SKU |
|---|---|---|

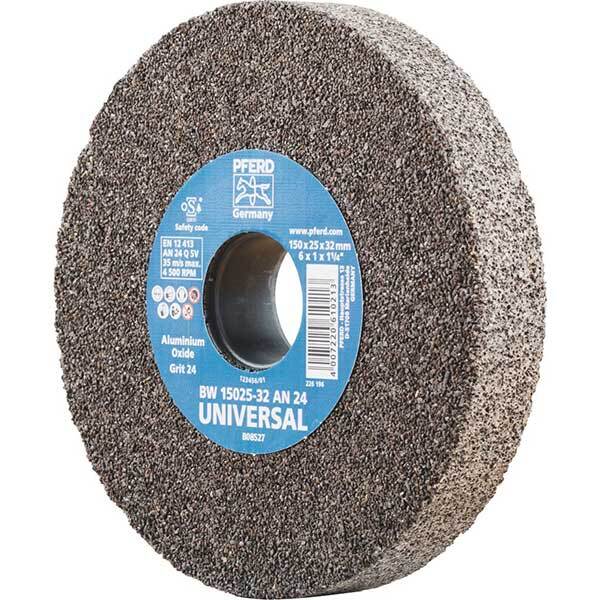

| 24 / 150 x 20 | 39008422 | A0160301 |

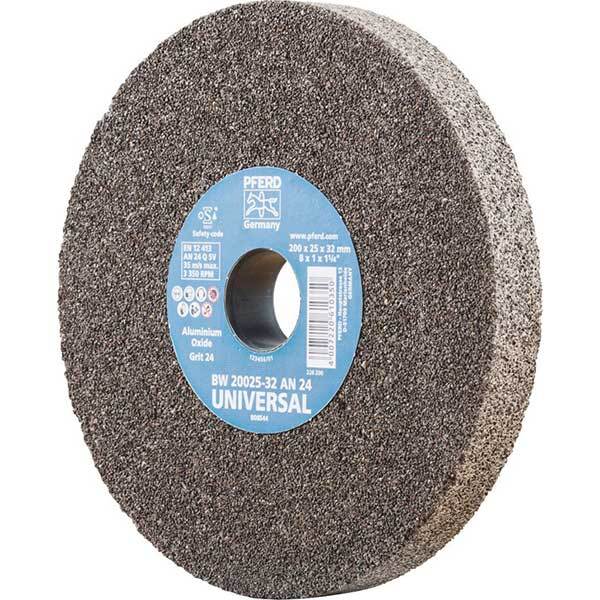

| 24 / 200 x 25 | 39008440 | A0160304 |

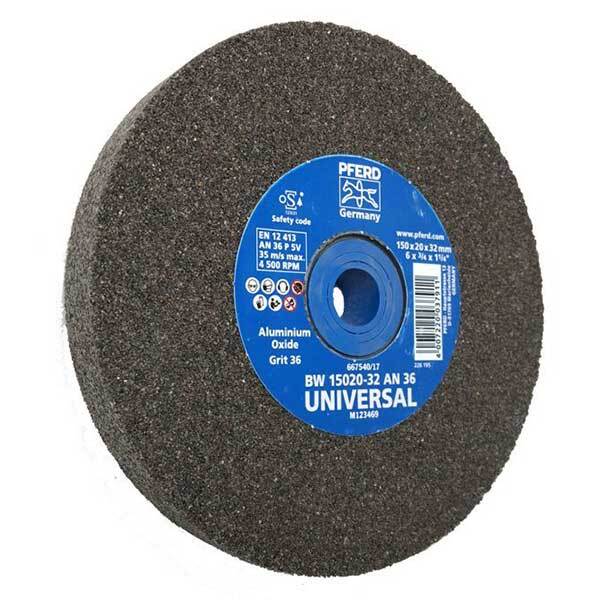

| 36 / 150 x 20 | 39009708 | A0160302 |

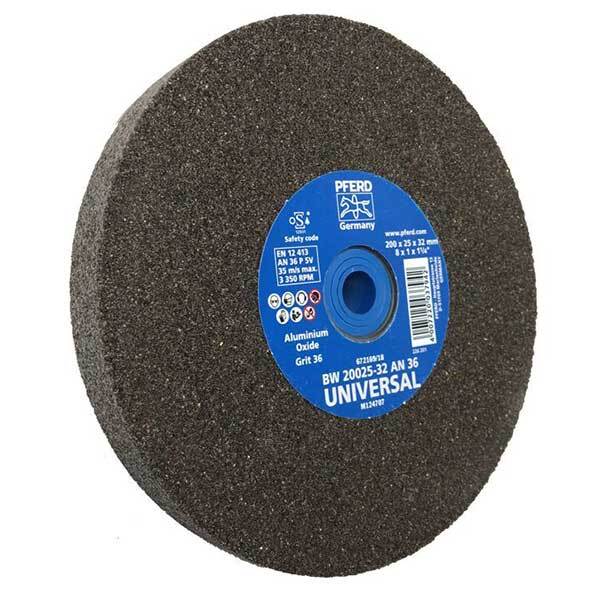

| 36 / 200 x 25 | 39009711 | A0160305 |

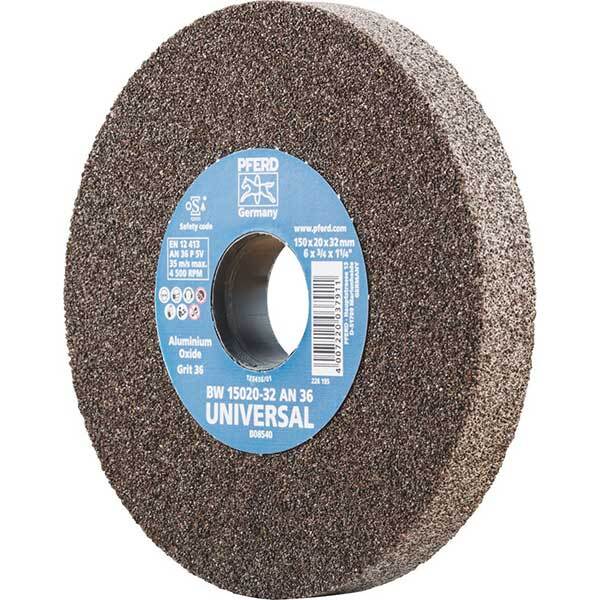

| 60 / 150 x 20 | 39008423 | A0160303 |
| 60 / 200 x 25 | 39008441 | A0160306 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd Bench Grinding Wheel Aluminium Oxide Universal, 150 x 20 and 200 x 25 mm, Grits 24 to 60: 24 / 150 x 20
SKU: A0160301 | Model: 39008422
Pferd 39008422: aluminium oxide universal bench grinding wheel, 150 x 20mm, 32mm bore, grit 24. Max. speed 4,500rpm.
