Pferd silicon carbide bench grinding wheel, 60 / 150 x 20
Available
The Pferd CARBIDE bench grinding wheel is a silicon carbide (CN) wheel for mounting on a bench grinder. The range has five options: three 150 x 20mm wheels in grits 60, 80 and 120, and two 200 x 25mm wheels in grits 80 and 120.
The CARBIDE design is used on hard materials, for example for sharpening tungsten carbide tools and hardened steels. Key features are long tool life, high dimensional stability, high abrasive performance and integrated adapter sleeves for mounting on almost any bench grinder spindle. The two 200 x 25mm wheels differ in bore: grit 80 has a 32mm bore and grit 120 with a 51mm bore.
Where this product is used

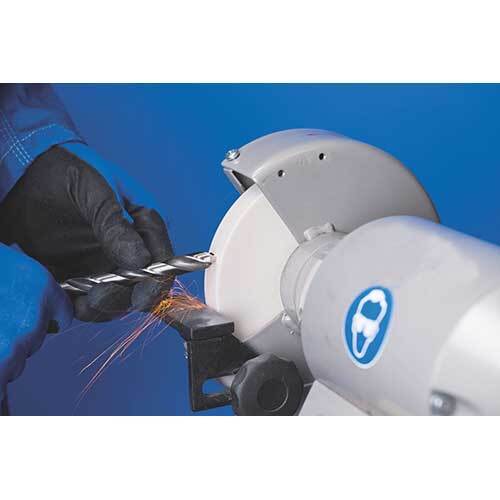

- Sharpening tungsten carbide tools
- Working on hard materials and hardened steels
- Highly suited to tungsten carbide, glass and hardened, heat-treated steels over 1,200 N/mm2 (> 38 HRC)
- Suited to soft and hard non-ferrous metals

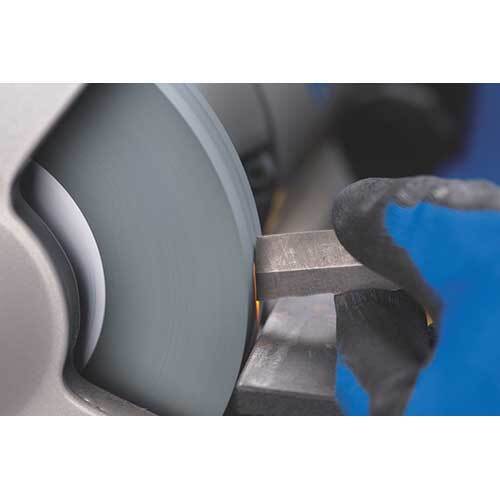

- Deburring, sharpening and edge work such as chamfering and rounding
Features
- Silicon carbide (CN) abrasive in grits 60, 80 and 120
- 150 x 20mm and 200 x 25mm sizes with 32mm and 51mm bores
- Maximum speed 4,500rpm on the 150mm wheels and 3,350rpm on the 200mm wheels
- Integrated adapter sleeves for mounting on almost any bench grinder spindle
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Abrasive | Silicon carbide (CN) |
| Design | CARBIDE |
| Grit sizes | 60, 80 and 120 |
| Maximum permitted peripheral speed | 35 m/s |
Choosing the right option
Match the bore and size to your bench grinder. A higher grit number is a finer abrasive. For safety reasons, never exceed the maximum rotational speed printed for the item. The maximum permitted peripheral speed is 35 m/s, and says to ring test the wheel before clamping: an undamaged wheel gives a clear tone. Dress the wheel regularly to expose sharp grain and keep an even grinding face, and keep the workpiece support adjusted to the wheel diameter with a gap of no more than 3mm.
Other Pferd bench grinding wheel designs: Aluminium Oxide Universal bench grinding wheels, White Aluminium Oxide HSS bench grinding wheels.
| Option | Part number | SKU |
|---|---|---|
| 60 / 150 x 20 | 39008570 | A0160292 |

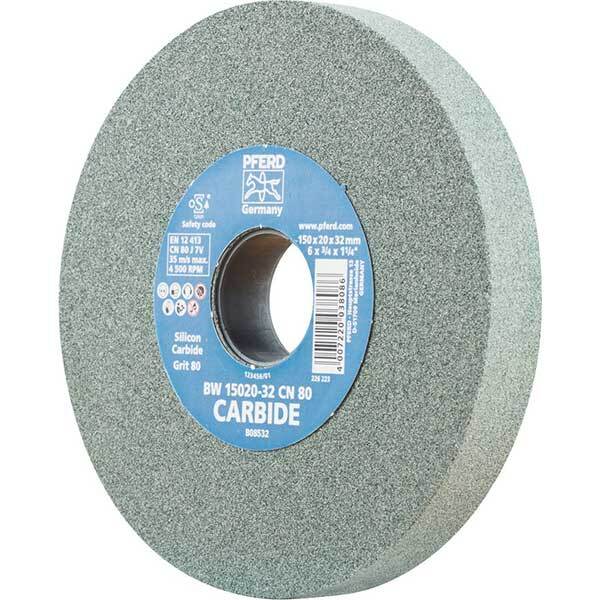

| 80 / 150 x 20 | 39009724 | A0160293 |

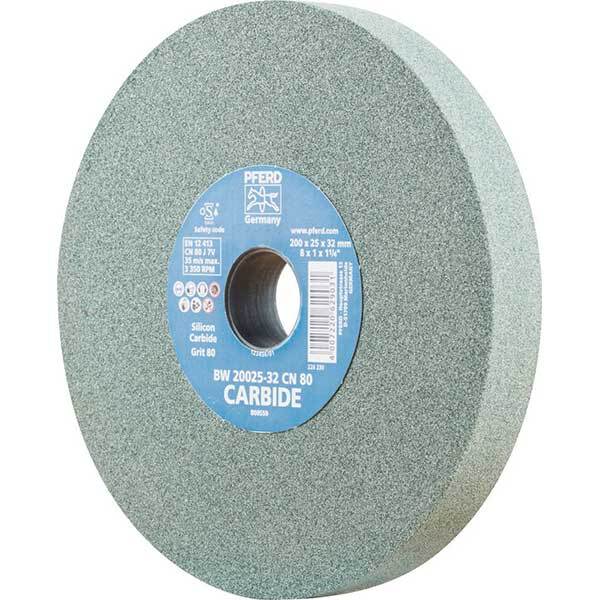

| 80 / 200 x 25 | 39008490 | A0160295 |
| 120 / 150 x 20 | 39008425 | A0160294 |

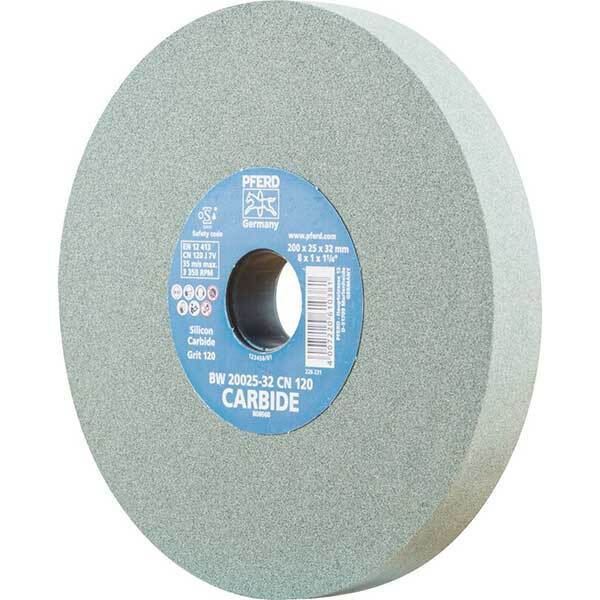

| 120 / 200 x 25 | 39008443 | A0160296 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd Bench Grinding Wheel Silicon Carbide (Carbide Design), 150 x 20 and 200 x 25 mm, Grits 60 to 120: 60 / 150 x 20
SKU: A0160292 | Model: 39008570

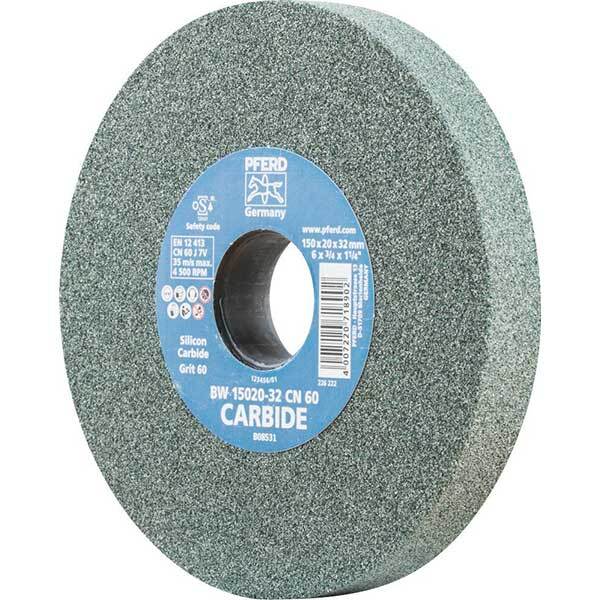

Pferd 39008570: silicon carbide carbide bench grinding wheel, 150 x 20mm, 32mm bore, grit 60. Max. speed 4,500rpm.
