Pferd hole saw arbors LSS 1, Hexagonal / LSS 1

Pferd LSS hole saw arbors mount an HSS hole saw and its pilot drill. It has three arbors: LSS 1 and LSS 2 with hexagonal shanks, and LSS 4 with a round shank.

The arbors are designed for mounting the hole saw and the pilot drill, and are supplied with an HSS pilot drill and an ejection spring. The ejection spring can be removed by hand without tools. LSS 1 and LSS 4 suit hole saws LS 14-30 on the 1/2-20 UNF thread, and LSS 2 for hole saws LS 32-210 on the 5/8-18 UNF thread.

Where this product is used

• Mounting LS 14-30 hole saws (1/2-20 UNF thread) on an LSS 1 or LSS 4 arbor

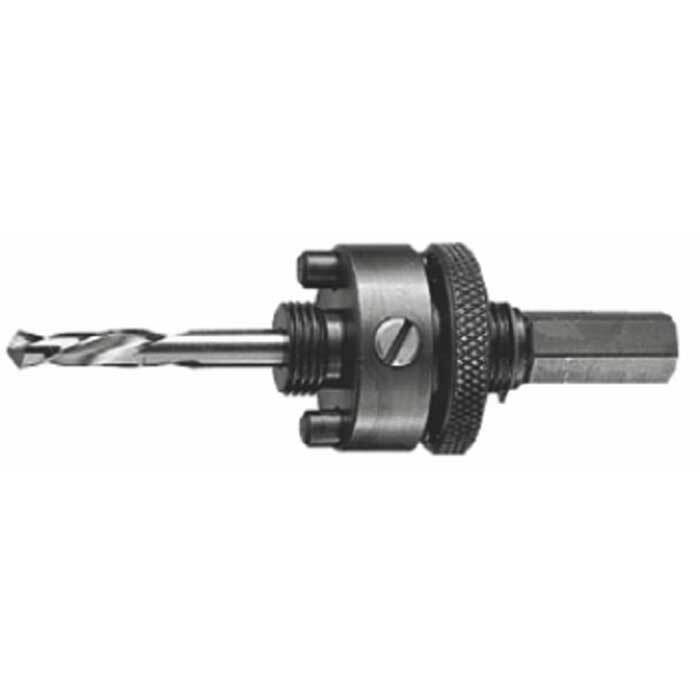

• Mounting LS 32-210 hole saws (5/8-18 UNF thread) on an LSS 2 arbor
• Holding the pilot drill that centres the hole saw (each arbor is supplied with an HSS pilot drill)

Features

• Supplied with an HSS pilot drill and an ejection spring
• Spring can be removed manually without tools

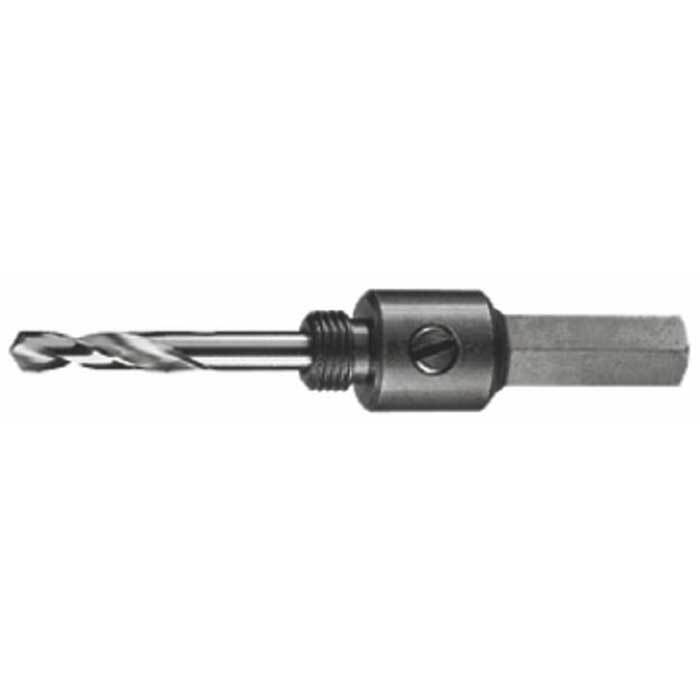

• LSS 1 and LSS 2: hexagonal shank, 10.5mm d2, 9.53mm size

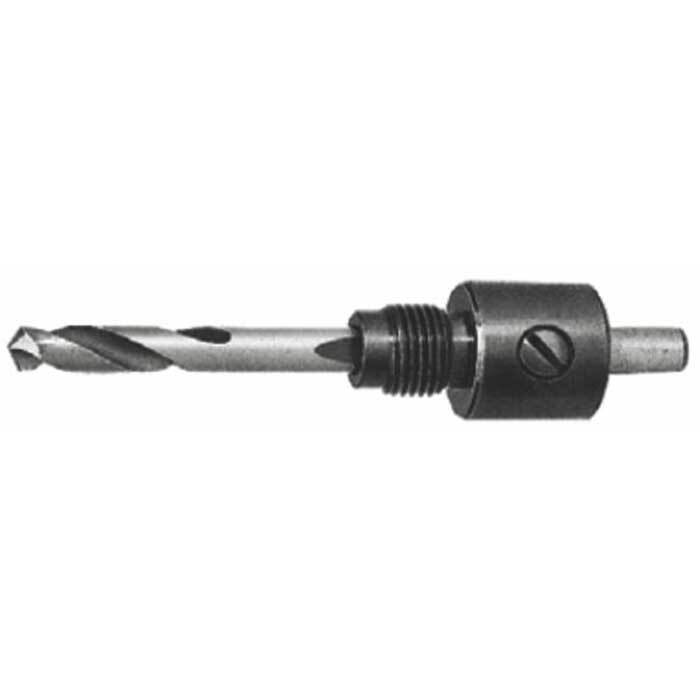

• LSS 4: round shank, 6.35mm d2
• Thread 1/2-20 UNF (LSS 1, LSS 4) or 5/8-18 UNF (LSS 2)

Key specifications

Choosing the right option

Pick the arbor by the hole saw you are fitting: LSS 1 and LSS 4 take hole saws LS 14-30 (1/2-20 UNF thread) and LSS 2 takes LS 32-210 (5/8-18 UNF thread). LSS 1 and LSS 2 are listed with pilot drill LSB 6/60, LSS 4 with LSB 6/90. Hole saws LS 32 to LS 38 can also be used on LSS 1 or LSS 4 with the Pferd LSA adapter and a washer.

Fit with: bi-metal hole saws LS 16 to LS 152, pilot drills LSB 6/60 and LSB 6/90, PSL 11 quick-change system.
