Pferd conical counterbore burr, 16 x 8mm
Available
It has 3 Pferd conical counterbore burrs: shank-mounted tungsten carbide burrs with cut 3, all on a 6mm shank. Head sizes (diameter x cut length) run from 6 x 3 to 16 x 8mm.
The this KSK family is a conical counterbore burr with a 90 degree angle, suited to flexible counterboring and chamfering.
Where this product is used

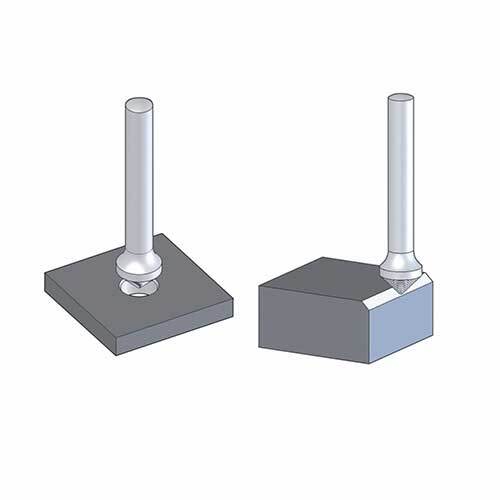

- Flexible counterboring and chamfering
- Work in hard-to-reach areas
Features
- Head sizes (diameter x cut length): 6 x 3 to 16 x 8mm
- 6mm shank
- Cut 3 for steel, cast iron, stainless steel and titanium alloys
- Can be guided as desired, suited to hard-to-reach areas

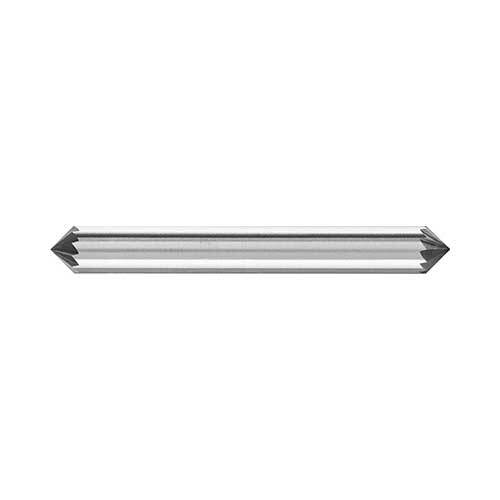

- Item 21115636 is double-ended and cuts on both sides
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Material | Tungsten carbide |
| Cut | 3 |
| Shank diameter (d2) | 6mm |
| Angle (alpha) | 90 degrees |
Choosing the right option
Match the shank to your tool: this item has a 6mm shank. Choose the head size for the feature you are cutting. Never exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and observe the recommended rotational speed, especially with long shanks.
Related burrs: Pferd Conical Counterbore Edge Burr KSK 1603/6 EDGE 45°, 16 x 3mm, 6mm Shank (21115466), Pferd Conical Counterbore Burr KSJ 1613/6 Z3, 16 x 13mm, 6mm Shank (21115336).
| Option | Part number | SKU |
|---|---|---|
| 16 x 8mm | 21115436 | A0151244 |
| 6 x 3mm | 21115636 | A0151245 |

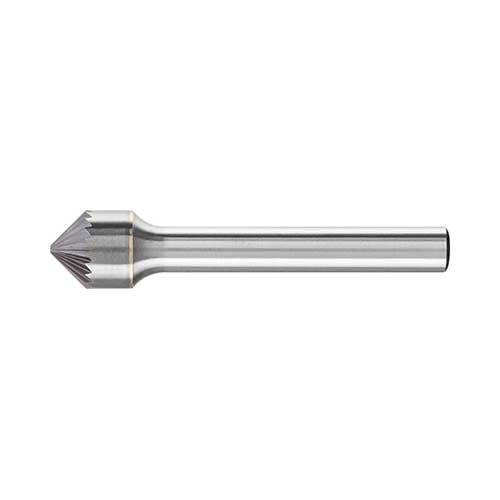

| 10 x 5mm | 21115836 | A0151246 |
Couldn't load pickup availability
Secure Checkout. We do not store credit card details
Pferd Conical Counterbore Burr KSK, Cut 3, 6 x 3 to 16 x 8 mm, 6 mm Shank: 16 x 8 mm
SKU: A0151244 | Model: 21115436

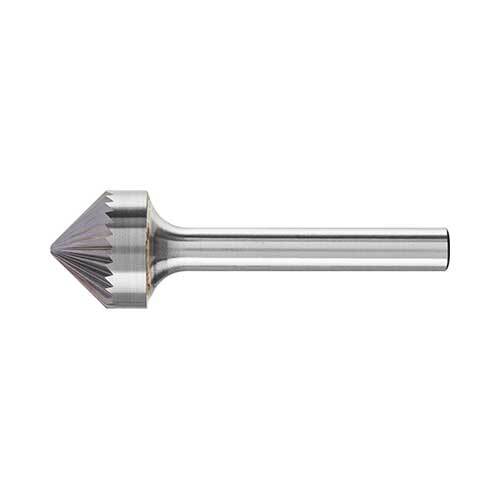

Pferd 21115436: conical counterbore burr KSK 1608/6 Z3, 16 x 8mm head, 6mm shank, 53mm overall. Angle (alpha): 90 degrees.
