Pferd Conical Counterbore Edge Burr KSK 1603/6 EDGE 45°, 16 x 3 mm, 6 mm Shank (21115466)
Available

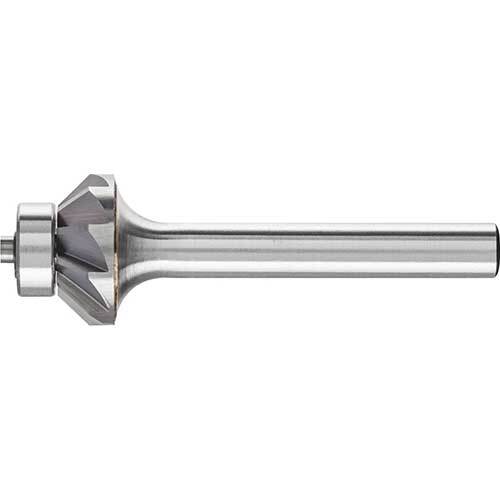

The Pferd conical counterbore edge burr KSK 1603/6 EDGE 45° (item 21115466) is a shank-mounted tungsten carbide burr with a 6mm shank. The head is 16 x 3mm (diameter x cut length). Overall length is 52mm.
The this KSK family is a conical counterbore burr for producing precisely defined 45 degree chamfer angles, with a design using ball bearings for precise guidance.
Where this product is used

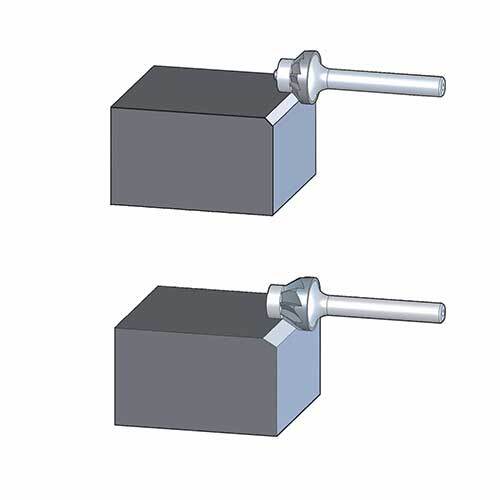

- Producing precise 45 degree chamfers

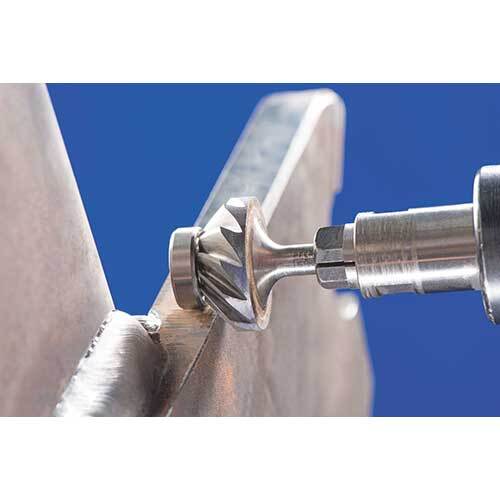

- Guided edge work with a bearing-guided burr
Features
- 16mm head diameter, 3mm cut length
- 6mm shank, 52mm overall length
- EDGE cut for defined edge shapes
- Safe and comfortable to guide thanks to a design with ball bearings, creating exact edge shapes in one step
Key specifications
| Specification | Detail |
|---|---|
| Brand | Pferd |
| Material | Tungsten carbide |
| Cut | EDGE |
| Shank diameter (d2) | 6mm |
| Designation | KSK 1603/6 EDGE 45° |
| Head diameter (d1) | 16mm |
| Cut length (l2) | 3mm |
| Overall length (l1) | 52mm |
| Angle (alpha) | 90 degrees |
| Dimension d3 | 10mm |
| Dimension l3 | 12mm |
Choosing the right option
Match the shank to your tool: item 21115466 has a 6mm shank. Never exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and observe the recommended rotational speed, especially with long shanks.
Related burrs: Pferd Conical Counterbore Burr KSK, Cut 3, 6 x 3 to 16 x 8mm, 6mm Shank, Pferd Concave Radius Edge Burr System V 1612/6 EDGE R3,0 ECS, 6mm Shank (21152946), Pferd Concave Radius Edge Burr V 1612/6 EDGE R3,0, 6mm Shank (21152936).
