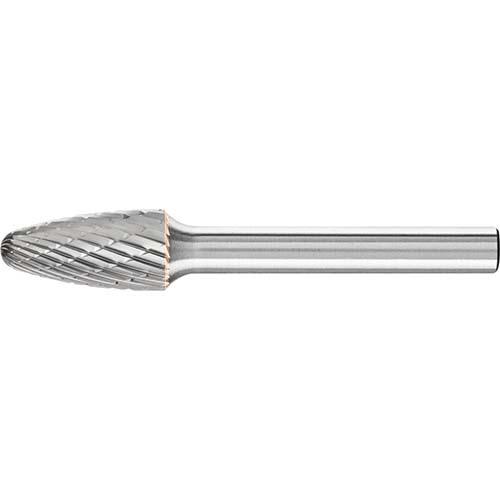

Pferd 21000075 Tree Shape Burr RBF, TOUGH, 10 x 20 mm, 6 mm Shank

This Pferd tree shape burr with radius end (RBF) is a tungsten carbide burr in TOUGH cut on a 6 mm shank (manufacturer-stated). This page lists 2 items, head sizes 10 x 20 and 12 x 25 mm (manufacturer-stated).

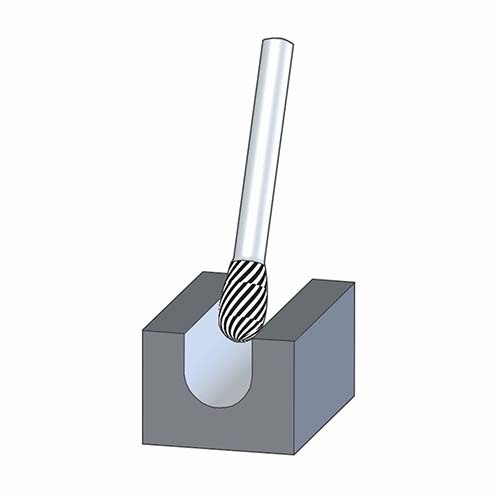

The PFERD catalogue describes the TOUGH cut as giving a high stock removal rate on cast iron and steel below 54 HRC, extremely resistant to impacts, and suitable for high surface contact angles above 1/3 and for impact loads (manufacturer-stated).

The PFERD catalogue describes the RBF as a tree-shaped burr with radius end according to DIN 8032 for tough applications in dockyards, foundries and steel construction (manufacturer-stated).

Features listed: impact-resistant cut that minimises tooth chipping, breakage, splintering and burr failure; can also be used in low rotational speed ranges (manufacturer-stated).

Where this product is used

• Tough applications in dockyards, foundries and steel construction (manufacturer-stated)
• Cast iron and steel below 54 HRC, including impact loads (manufacturer-stated)

Features

• Tungsten carbide, tree shape with radius end (RBF) (manufacturer-stated)
• TOUGH: extremely impact-resistant cut for tough applications (manufacturer-stated)
• 6 mm shank (manufacturer-stated)
• Head sizes 10 x 20 and 12 x 25 mm, overall lengths 60 and 65 mm (manufacturer-stated)
• Impact-resistant cut that minimises tooth chipping, breakage, splintering and burr failure (manufacturer-stated)
• Can also be used in low rotational speed ranges (manufacturer-stated)

Common specifications

Key specifications

Dimensions in mm: d1 head diameter, l2 cut length, d2 shank diameter, l1 overall length. Each item number is one head size.

Selecting the right option

Choose the head size and shank to suit the job and your tool; the table lists each item number with its dimensions. The catalogue gives a cutting speed of 250 to 600 m/min for steels up to 1,200 N/mm2 with impact load, and the rotational speed follows from the burr diameter (manufacturer-stated). Do not exceed the maximum permitted rotational speed, observe the recommended rotational speed (especially with long shanks), wear eye and hearing protection and a dust mask, and do not use a damaged burr or use the burr for cutting (manufacturer-stated).
