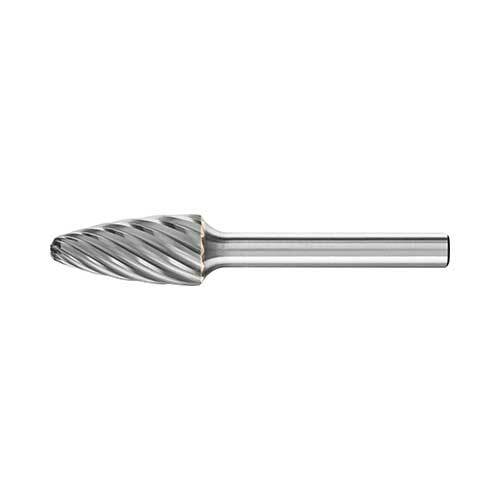

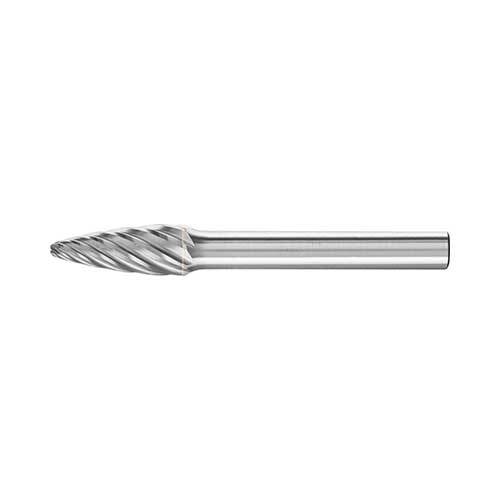

Pferd tree Shape Burr RBF, 6 x 18mm

This Pferd tree shape burr with radius end (RBF) is a tungsten carbide burr in INOX cut on a 6mm shank. It comes in 2 head sizes: 6 x 18 and 12 x 25mm.

The INOX cut is suited to austenitic, rust and acid-resistant steels, stainless steel (INOX) and soft titanium alloys (tensile strength below 500 N/mm2), with reduced vibration and less noise. The RBF is a tree-shaped burr with radius end to DIN 8032 for machining stainless steel (INOX). Key features: high surface finish through optimum chip formation, reduced heat production, which prevents heat discolouration in the material, reduced wear on the tool drive from impact-free work without chatter marks.

Where this product is used

• Machining stainless steel (INOX)
• Austenitic, rust and acid-resistant steels and soft titanium alloys

Features

• Tungsten carbide, tree shape with radius end (RBF)
• INOX: cut for austenitic, rust and acid-resistant steels, with reduced vibration and less noise
• 6mm shank
• Head sizes 6 x 18 and 12 x 25mm, overall lengths 55 and 65mm
• High surface finish through optimum chip formation
• Reduced heat production, which prevents heat discolouration in the material

Key specifications

Choosing the right option

Choose the head size and shank to suit the job and your tool. The cutting speed is 450 to 600 m/min for austenitic and ferritic stainless steels, and the rotational speed follows from the burr diameter. Do not exceed the maximum permitted rotational speed, observe the recommended rotational speed (especially with long shanks), wear eye and hearing protection and a dust mask, and do not use a damaged burr or use the burr for cutting.

Same shape and cut in other sizes or shanks: Pferd Tree Radius Burr, Inox, 12.7 x 25.4mm (1/2 x 1"), 1/4" Shank (21724727).

Same shape with other cuts: Pferd Tree Shape Burr RBF, TOUGH, 10 x 20 and 12 x 25mm, 6mm Shank, Pferd Tree Shape Burr RBF, ALU, 6 x 18 and 12 x 25mm, 6mm Shank.
