Pferd 21134826 Oval Shape Burr TRE 0610/6 Z3 PLUS, 6 x 10 mm, 6 mm Shank
Available
This page lists 4 Pferd oval burrs: shank-mounted tungsten carbide burrs with cut 3 PLUS, all on a 6 mm shank. Head sizes (diameter x cut length) run from 6 x 10 to 12 x 20 mm.
The catalogue describes this TRE family as an oval burr for general use on all materials, with a good stock removal rate from the matching of tungsten carbide, geometry, cut and coating (manufacturer-stated).
The catalogue describes cut 3 PLUS as similar to cut 3 but with a cross cut, for machining steel, cast iron, stainless steel (INOX), nickel-based alloys and titanium alloys (manufacturer-stated).
Where this product is used
- Machining steel, cast iron, stainless steel (INOX), nickel-based alloys and titanium alloys (manufacturer-stated)
- High stock removal with good surfaces (manufacturer-stated)

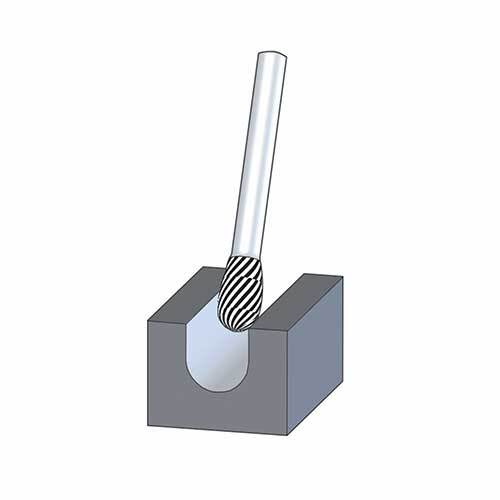

- Deburring, chamfering, milling out for build-up welding preparation, machining weld seams and machining contours, and cleaning cast material (manufacturer-stated)
Features
- Head sizes (diameter x cut length): 6 x 10 to 12 x 20 mm
- 6 mm shank (manufacturer-stated)
- Cut 3 PLUS: cross cut, similar to cut 3 (manufacturer-stated)
- Reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity (manufacturer-stated)
- Long tool life (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Material | Tungsten carbide (manufacturer-stated) |
| Cut | 3 PLUS (manufacturer-stated) |
| Shank diameter (d2) | 6 mm (manufacturer-stated) |
Key specifications
| Model | Size | Designation | Head diameter (d1) | Cut length (l2) | Overall length (l1) | Radius (r) |
|---|---|---|---|---|---|---|

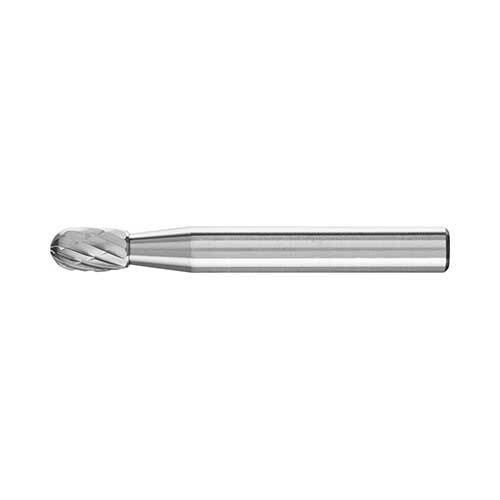

| 21134826 | 6 x 10 mm | TRE 0610/6 Z3 PLUS | 6 mm (manufacturer-stated) | 10 mm (manufacturer-stated) | 50 mm (manufacturer-stated) | 2.8 mm (manufacturer-stated) |

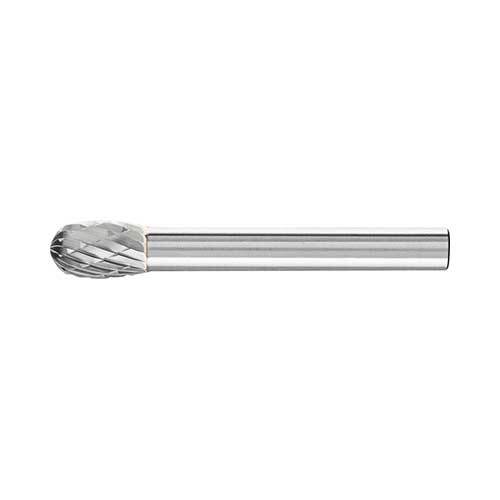

| 21135026 | 8 x 13 mm | TRE 0813/6 Z3 PLUS | 8 mm (manufacturer-stated) | 13 mm (manufacturer-stated) | 53 mm (manufacturer-stated) | 3.7 mm (manufacturer-stated) |

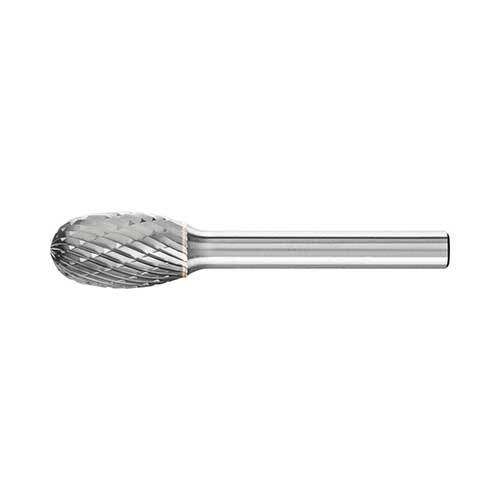

| 21134926 | 10 x 16 mm | TRE 1016/6 Z3 PLUS | 10 mm (manufacturer-stated) | 16 mm (manufacturer-stated) | 56 mm (manufacturer-stated) | 4 mm (manufacturer-stated) |

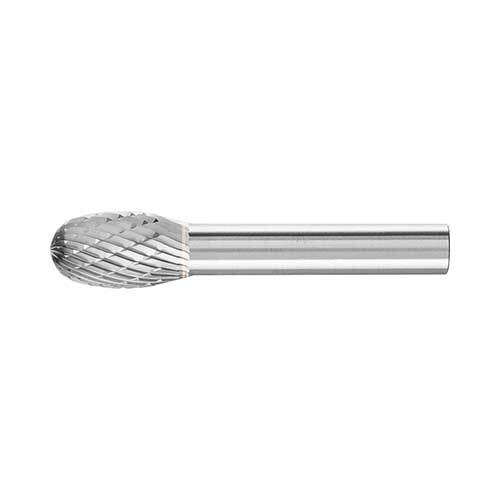

| 21135126 | 12 x 20 mm | TRE 1220/6 Z3 PLUS | 12 mm (manufacturer-stated) | 20 mm (manufacturer-stated) | 60 mm (manufacturer-stated) | 5 mm (manufacturer-stated) |
Each item number is one head size; the cut and shank are shown above and in the table.
Selecting the right option
Match the shank to your tool: this page lists a 6 mm shank. Choose the head size for the feature you are cutting; the table shows the cut length and overall length of each item. Never exceed the maximum permitted rotational speed, wear eye protection, hearing protection and a dust mask, and observe the recommended rotational speed, especially with long shanks (manufacturer-stated).
