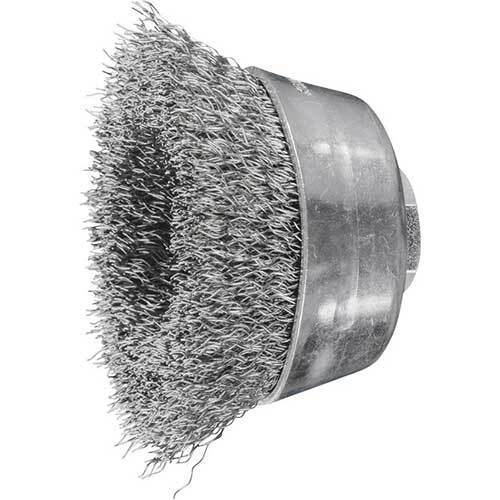

Pferd 43468905 Crimped Cup Brush TBU 60 mm, M14 x 2, Stainless Steel Wire 0.30 mm
Available

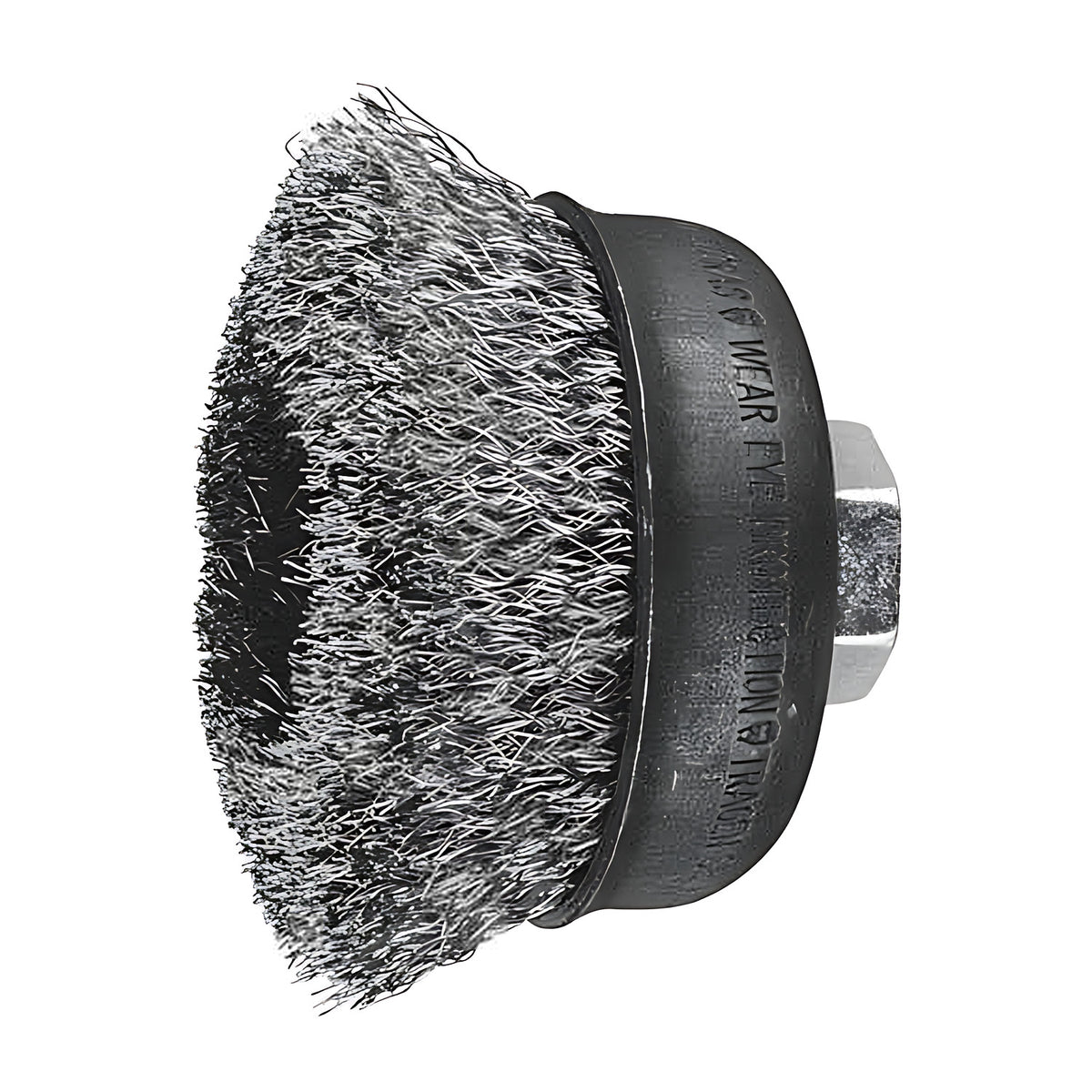

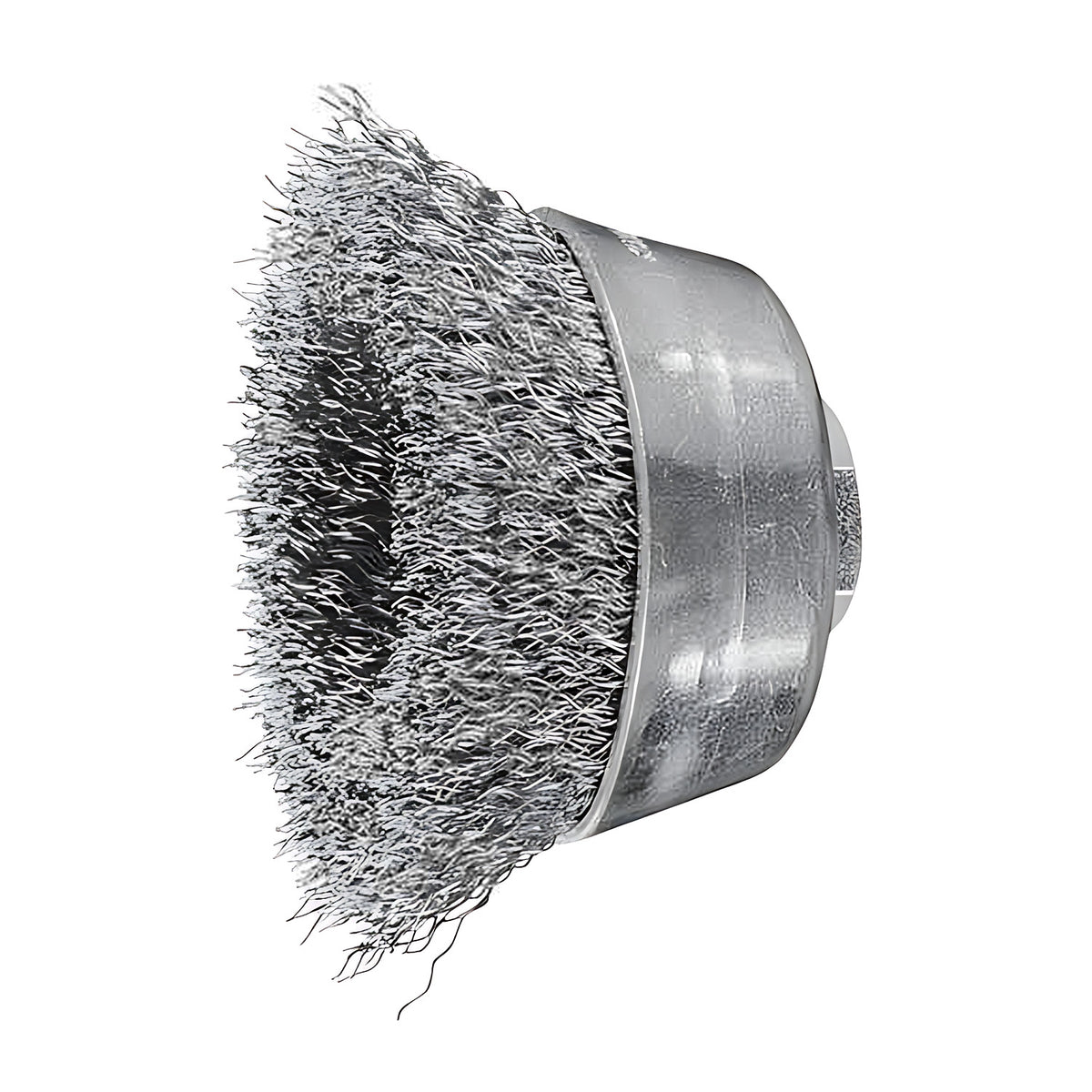

The Pferd TBU is a crimped cup brush. It has an M14 x 2 thread and stainless steel wire filament. This page lists 3 items: 60 mm, 75 mm and 100 mm (brush diameter).
The catalogue describes the TBU as suited to medium-duty brushing such as deburring, cleaning and derusting on large surfaces (manufacturer-stated).
Filament diameter is 0.30 mm. Optimum and maximum speeds depend on the size: maximum speeds run from 8,500 to 12,500 rpm, so check the figures for the item you choose (manufacturer-stated).
Stainless steel wire: no corroding residues left on the workpiece, temperature resistance up to 450°C (manufacturer-stated).
Special features listed in the catalogue: highly flexible, so it adjusts to the workpiece contour; creates fine surfaces (manufacturer-stated).
Where this product is used

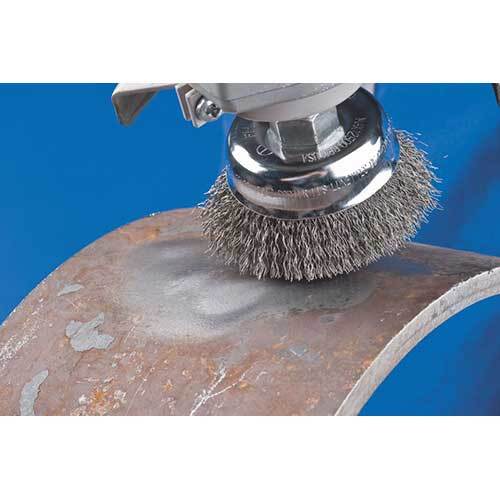

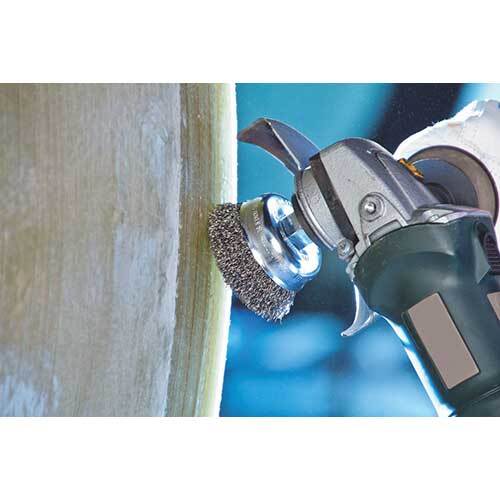

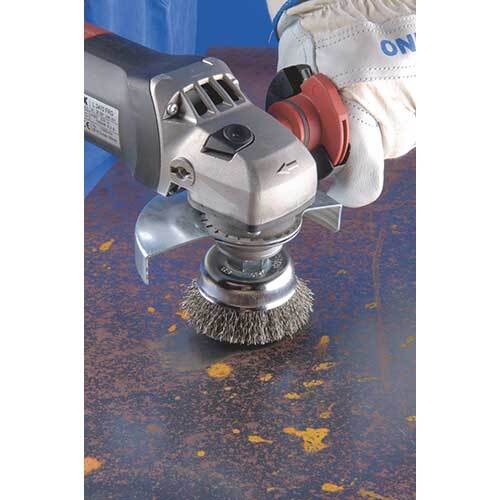

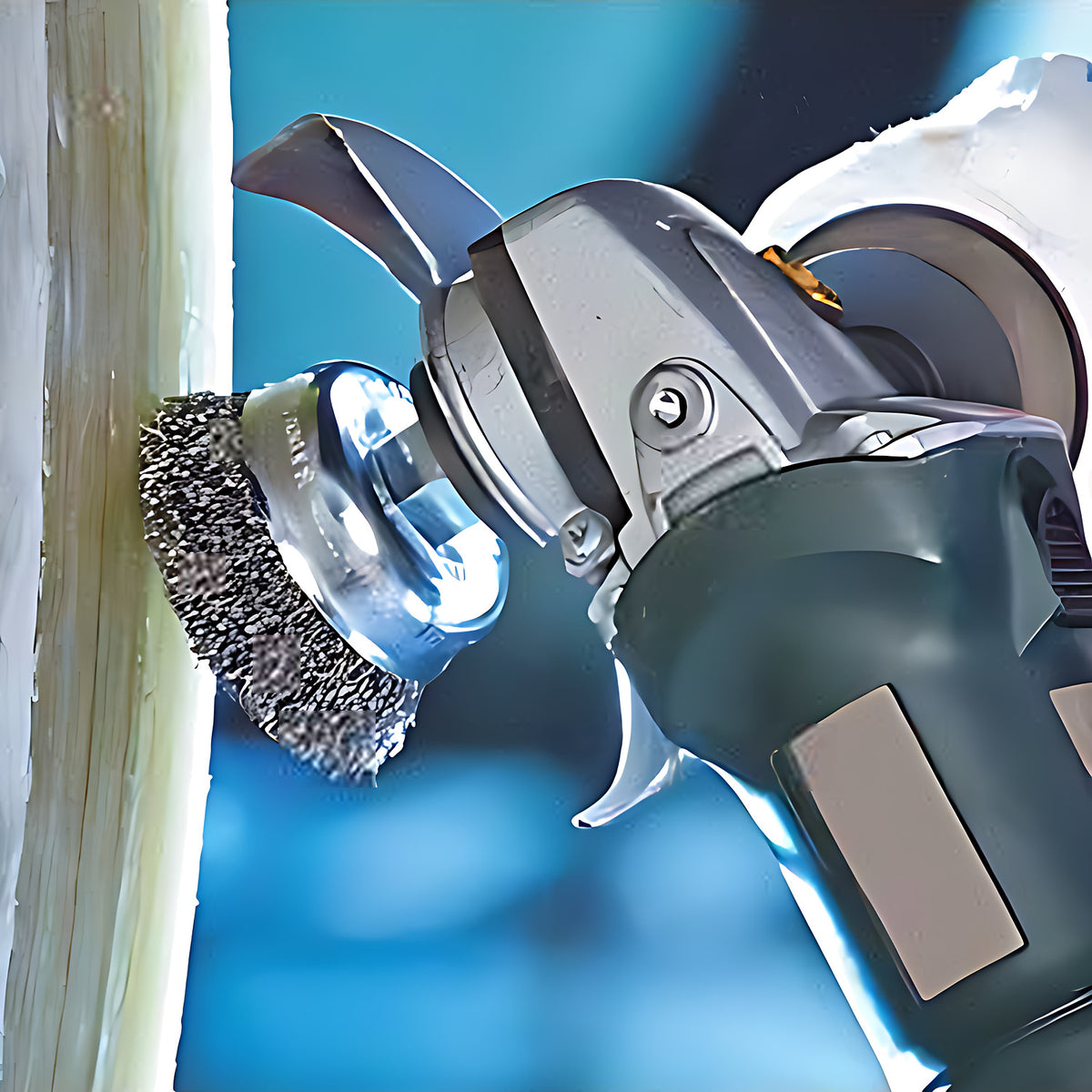

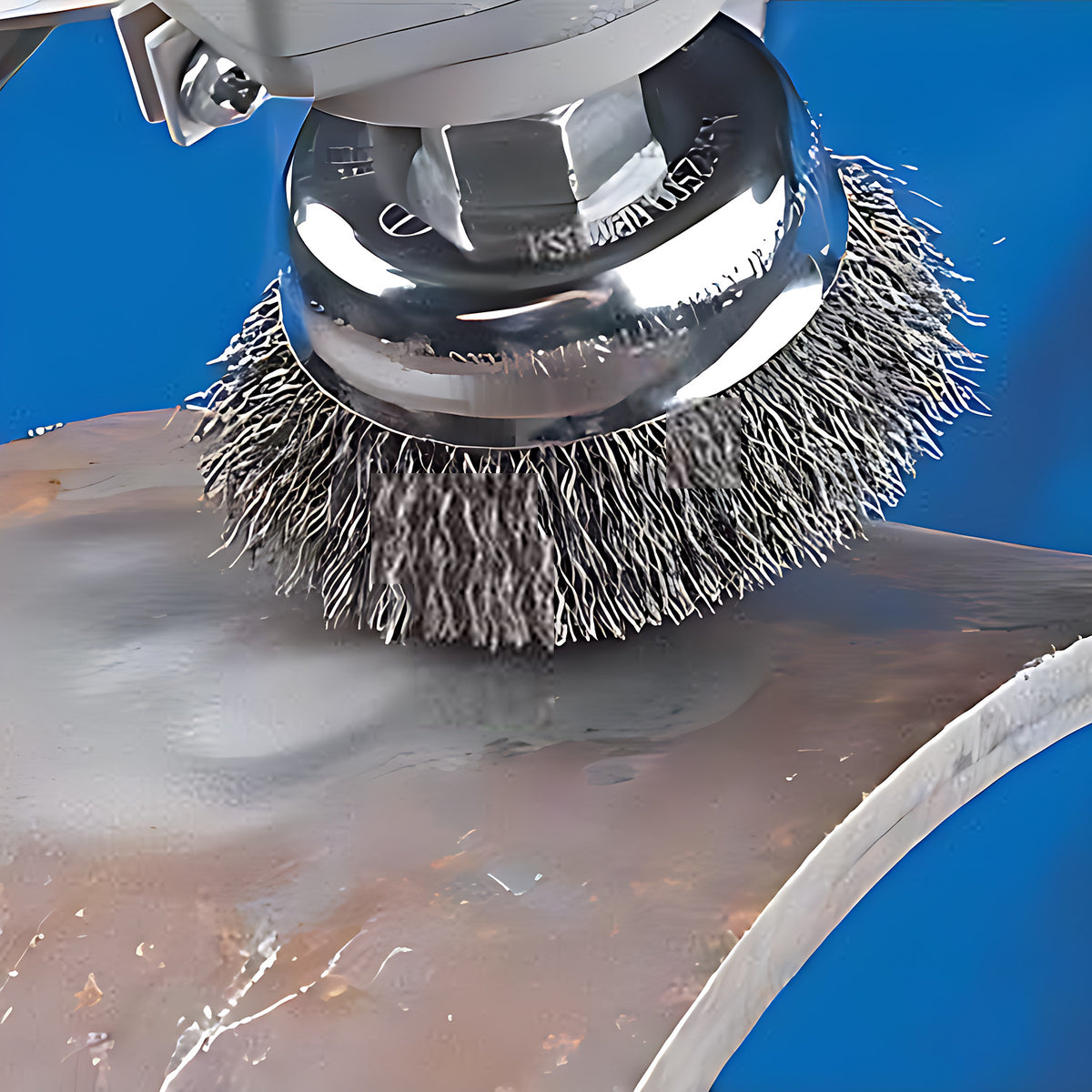

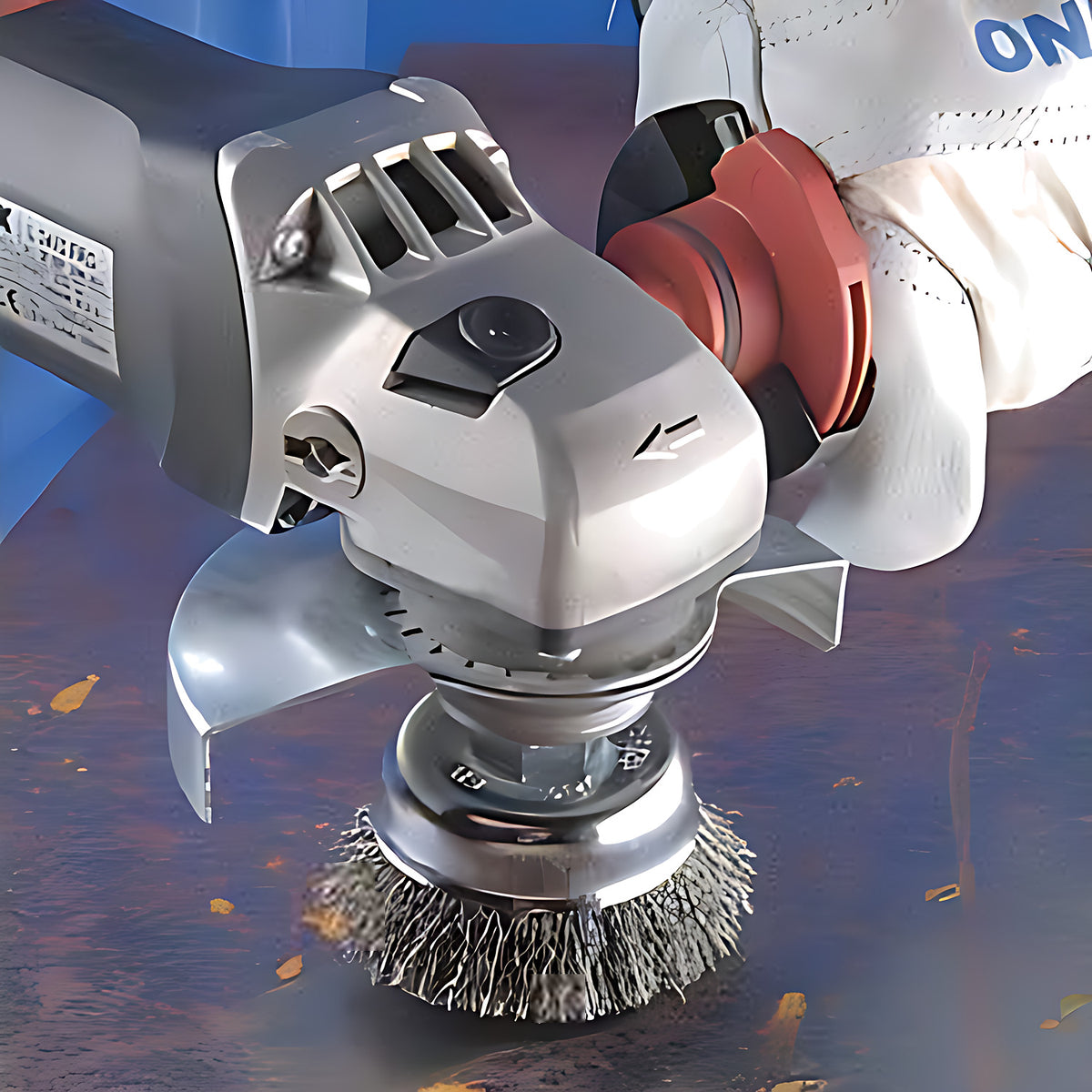

- Suited to medium-duty brushing such as deburring, cleaning and derusting on large surfaces (manufacturer-stated)
- Stainless steel wire is rated highly suitable for stainless steel and aluminium, and suitable for steel, soft non-ferrous metals (brass, copper, zinc) and hard non-ferrous metals (manufacturer-stated)
Features
- Brush diameters 60 mm, 75 mm and 100 mm
- M14 x 2 thread (manufacturer-stated)
- Stainless steel wire (INOX), filament diameter 0.30 mm (manufacturer-stated)
- Highly flexible, so it adjusts to the workpiece contour (manufacturer-stated)
- Creates fine surfaces (manufacturer-stated)
Common specifications
| Specification | Detail |
|---|---|
| Brush diameters | 60 mm, 75 mm and 100 mm |
| Thread (DT) | M14 x 2 (manufacturer-stated) |
| Filament diameter (DF) | 0.30 mm (manufacturer-stated) |
| Filament material | Stainless steel wire (INOX) (manufacturer-stated) |
Key specifications
| Model | Designation | Brush diameter (D) | Filament length (LT) | Optimum speed | Maximum speed |
|---|---|---|---|---|---|
| 43468905 | POS TBU 60/M14 INOX 0,30 | 60 mm | 20 mm (manufacturer-stated) | 5,000 to 8,100 rpm (manufacturer-stated) | 12,500 rpm (manufacturer-stated) |

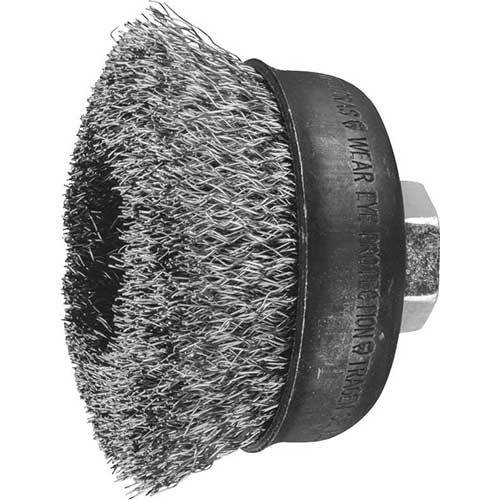

| 43469003 | POS TBU 75/M14 INOX 0,30 | 75 mm | 25 mm (manufacturer-stated) | 5,000 to 8,100 rpm (manufacturer-stated) | 12,500 rpm (manufacturer-stated) |
| 43469103 | POS TBU 100/M14 INOX 0,30 | 100 mm | 25 mm (manufacturer-stated) | 3,400 to 5,500 rpm (manufacturer-stated) | 8,500 rpm (manufacturer-stated) |
Each item number is a separate size. Speeds are shown for each item.
Selecting the right option
Check that the M14 x 2 thread matches your tool. Larger brushes can have lower speed limits, so read the speed columns in the table for the item you choose. The catalogue gives a recommended cutting speed of 15 to 45 m/s for cup brushes, depending on the application and below the maximum permitted speed (manufacturer-stated). Stainless steel wire is rated not suitable for cast iron or plastics (manufacturer-stated). Never exceed the maximum permitted speed marked on the brush, its label and in the catalogue (manufacturer-stated).
Related products
The same TBU cup brush in steel wire: Pferd Crimped Cup Brush TBU, Steel Wire 0.30 mm, M14 Thread, 60, 75 and 100 mm.
