Pferd tree Shape Burr RBF

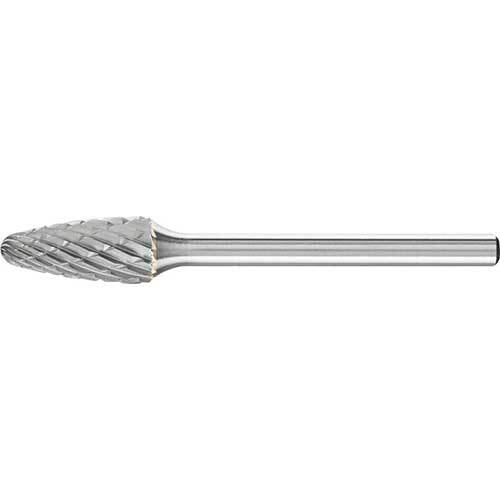

This Pferd tree shape burr with radius end (RBF) is a tungsten carbide burr in cut 3 PLUS on a 3mm shank. It has a head size of 6 x 13mm.

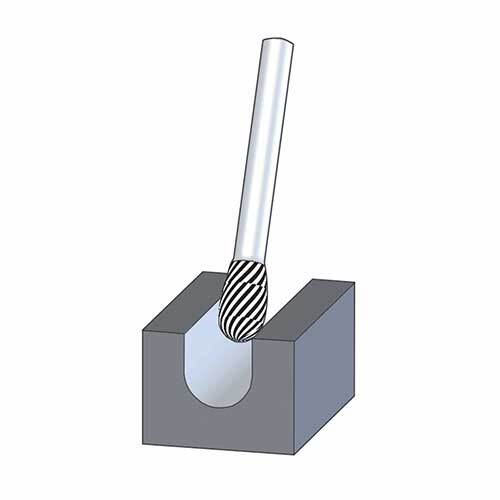

The cut 3 PLUS is similar to cut 3 but with a cross cut, for machining steel, cast iron, stainless steel (INOX), nickel-based alloys and titanium alloys, with high stock removal and good surfaces. The RBF is a tree-shaped burr with radius end to DIN 8032, with a cut conforming to DIN 8033, for general use on all materials. Key features: long tool life and high surface finish, reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity.

Where this product is used

• Machining steel, cast iron, stainless steel (INOX), nickel-based alloys and titanium alloys
• High stock removal with good surfaces

Features

• Tungsten carbide, tree shape with radius end (RBF)
• Cut 3 PLUS: cross-cut version of cut 3, with high stock removal and good surfaces
• 3mm shank
• Head size 6 x 13mm, overall length 43mm
• Long tool life and high surface finish
• Reduced wear on the tool drive from impact-free work without chatter marks, thanks to the high concentricity

Key specifications

Choosing the right option

Check the head size and shank against the job and your tool. The cutting speed is 450 to 600 m/min for steels up to 1,200 N/mm2, and the rotational speed follows from the burr diameter. Do not exceed the maximum permitted rotational speed, observe the recommended rotational speed (especially with long shanks), wear eye and hearing protection and a dust mask, and do not use a damaged burr or use the burr for cutting.
