Pferd Mounted Point Set SSO 5300 STEEL, 100 Pieces, 6 mm Shank, Coarse (33930001)

Pferd item 33930001 is the SSO 5300 STEEL mounted point set, listed as 100 pieces. It is a set of 100 mounted points with a 6mm shank diameter in the most common shapes and dimensions.

The set is suited to grinding high-speed steel (HSS) moulded parts and to weld dressing of weld seams on steel constructions. Contents as printed : ten each of 16 x 20mm, 20 x 25mm, 25 x 6mm, 25 x 32mm, 32 x 16mm, 32 x 32mm and 40 x 20mm in cylindrical shape, 20 x 32mm in pointed tree shape and 25 x 70mm in conical shape. The set is listed in coarse grit. It has a vitrified bond for the STEEL type, with a recommended cutting speed of 30 to 50 m/s.

Where this product is used

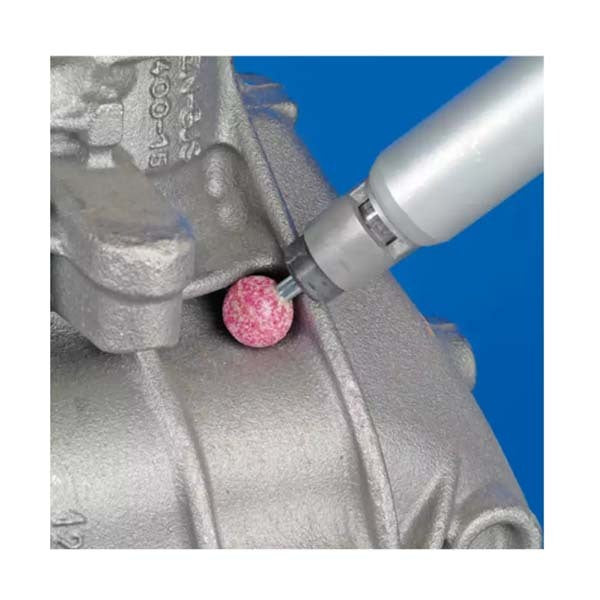

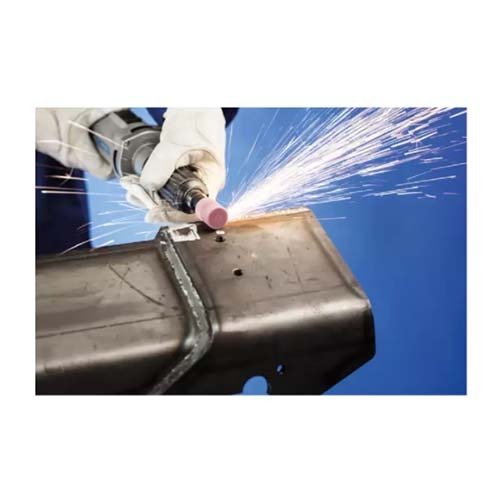

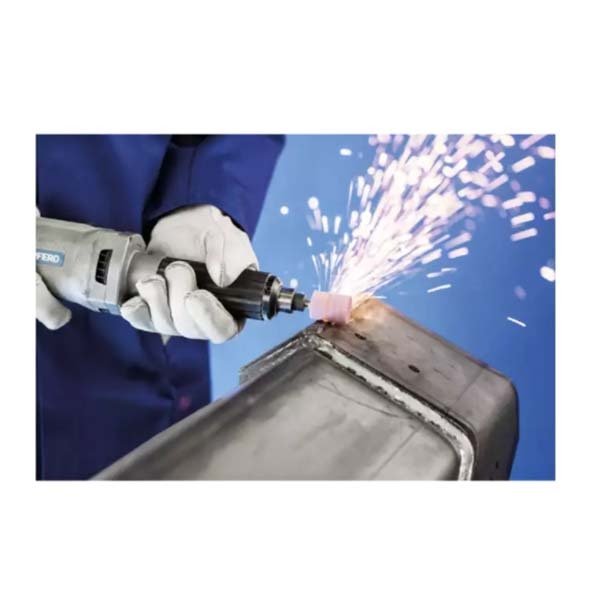

• Grinding HSS moulded parts and weld dressing of weld seams on steel constructions
• General use on steel materials, particularly on surfaces
• Highly suited to steels up to 1,200 N/mm² (below 38 HRC): universal and surface grinding
• Highly suited to hardened, heat-treated steels over 1,200 N/mm² (over 38 HRC): universal grinding
• Highly suited to cast steel: surface grinding

Features

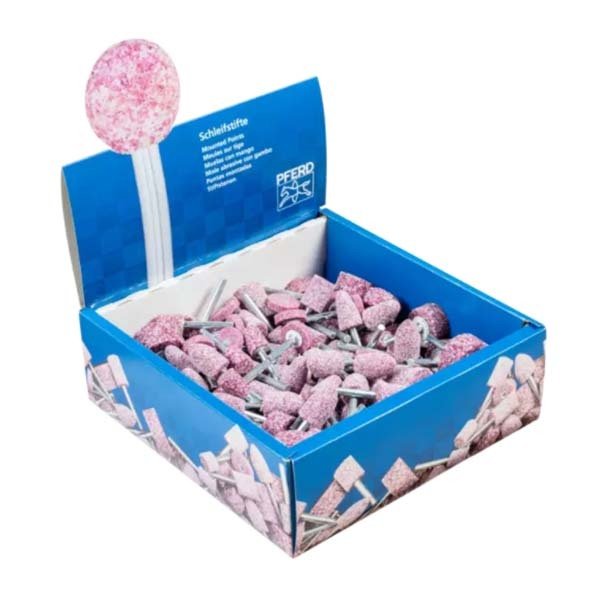

• Set of 100 mounted points
• 6mm shank diameter, coarse grit
• Cylindrical, pointed tree and conical shapes
• High grinding performance and stock removal rate in general use on steel materials
• Shortened grinding times and cost savings thanks to the high stock removal rate

Key specifications

Choosing the right option

All Pferd mounted points are approved for a maximum operating speed of 50 m/s, the maximum permitted rotational speeds for each shank length and shank diameter are defined in DIN 69170 based on EN 12413 to avoid buckling of the shank, and at least 10mm of the shank must be clamped. Wear eye protection, hearing protection, a dust mask and gloves.

Related Pferd STEEL mounted points and accessories: Pferd STEEL A 1 Mounted Point, 19 x 64mm, Grit 30, Pferd STEEL Cylindrical Mounted Point, 13 x 25mm, Grit 46, Pferd SE 702212 CU Dressing Stone, 70 x 12 x 22mm.
